  • Who runs GPS?

    Who runs GPS?

    Who Runs GPS

    Nearly 50 years ago, in December 1973, the Defense Systems Acquisition Review Council approved the Navstar Global Positioning System for entry into Phase I of development. Since then, through its development, deployment and continuing modernization, GPS has grown into a complex program. It is operated by the Department of Defense based on legislation from Congress, executive orders from the White House, and policies established jointly with the Department of Transportation. It supports U.S. military missions as well as myriad scientific, commercial and consumer applications around the planet. Of course, the last category, with its billions of users, now dwarfs all the other ones combined.

    The GPS program, with an annual budget of nearly $2 billion and no user fees, is a gift from U.S. taxpayers to the world. It has staff in Washington, D.C.; at the Pentagon in Arlington, Virginia; at Schriever Space Force Base, Colorado; at the Space Systems Command at Los Angeles Air Force Base, California; at Cape Canaveral, Florida; at the U.S. Coast Guard Navigation Center in Alexandria, Virginia; and at GPS ground antennas in additional locations around the world. From the White House to Congress to aerospace companies, from military officers to civilian civil servants, from policy makers to engineers, from the East Coast to the West Coast to remote islands in the Pacific, Indian  and Atlantic Oceans, GPS is a vast enterprise — most of which is little known even to people in the industry and virtually unknown to the public.

    The Global Positioning System is a vast and mostly unknown enterprise. This section — the first in an occasional series of authoritative reference pieces in this magazine — aims to clarify who does what to maintain GPS as a fantastic global utility. The relevant missions of agencies or units are in italics.

    After I researched and drafted the piece, I asked the experts listed below to review it and provide corrections and additions. While grateful for their substantial feedback, I take sole responsibility for any remaining errors or omissions.

    Thank you to the following experts:

    • Harold W. Martin III, Director, Space-Based Positioning, Navigation & Timing, National Coordination Office
    • Michael J. Dunn, Capability Area Integrator for PNT, Space Systems Command, United States Space Force
    • Lt. Col. Robert O. Wray, Commander, 2nd Space Operations Squadron, United States Space Force
    • Scott R. Calhoun, Commanding Officer, Navigation Center, United States Coast Guard
    • Paul Benshoof, Technical Director, 746th Test Squadron (AFMC), Central Inertial and GPS Test Facility
    • Bernard Gruber, Senior Director, Northrop Grumman

    Please return to this page periodically to read corrections and updates to this special section. If you spot any significant inaccuracies or omissions, please bring them to my attention by writing to me at [email protected].

  • Directions 2022: GPS positioned for the future

    Directions 2022: GPS positioned for the future

    By Michael J. Dunn, Space Systems Command, Capability Area Integrator for Positioning, Navigation and Timing

    The Global Positioning System is the premier positioning, navigation and timing (PNT) source for more than six billion users worldwide. It is vital to the function of all 16 of the United States’ essential critical infrastructure components. Life as we know it relies on the essential services that GPS provides.

    The United States Space Force (USSF) is committed to maintaining a healthy GPS constellation that continues to deliver the “gold standard” of PNT availability and reliability throughout the world. Continuous improvements in equipment and performance have been a hallmark of the enterprise since its inception. 2021 was no exception, with a continued record-setting delivery of new capabilities.

    Space Systems Command (SSC) at Los Angeles Air Force Base in El Segundo, California, is laser-focused on delivering the most important modernization in GPS history. The government and industry team are committed to bringing major upgrades to the space, control and user-equipment segments. It is an exhilarating time for the GPS enterprise. The specific updates within each segment cement the continued evolution in GPS and the USSF commitment to delivering advanced capabilities to the nation and the world.

    Space Segment

    Currently, 37 GPS satellites are on orbit, with 29 satellites set healthy. The baseline constellation requirement is 24 satellites. The system continues to perform in stellar fashion, providing an average 48-centimeter position accuracy throughout 2021.

    Orbital systems modernization is focused on the GPS III satellite fleet, and the program continues to deliver peerless capabilities. GPS III space vehicles (SV) 1–4 were all operationally accepted in 2020. In 2021, the most notable event was the launch of GPS III SV05 in June. The satellite successfully achieved operational acceptance and mission-capable status for USSF in just under two weeks: a new record. SVs 6–8 are available for launch and are awaiting their launch windows. SV09 system-level testing is in progress. SV10 component deliveries continue. GPS III provides up to eight times better anti-jam and a new L1C signal to improve user connectivity.

    For the GPS IIIF program, the long-range picture remains bright as the contract for GPS IIIF SVs 15–17 was awarded in October 2021. The delivery of the first GPS IIIF is expected early in 2026. GPS IIIF will build upon the tremendous increase in capability provided by GPS III with the addition of a search-and-rescue payload, a laser retroreflector array for precise ranging, a fully digital navigation payload, and a Regional Military Protect capability that will provide 60 times greater anti-jam for operations in electromagnetically hostile environments.

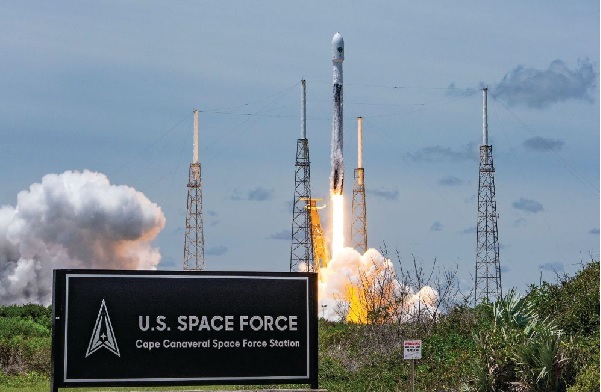

    GPS III space vehicle 05 (GPS III-SV05) launched in June 2021 from Cape Canaveral Space Force Base, Florida, aboard a SpaceX Falcon 9 launch vehicle. (Photo: SpaceX)
    GPS III space vehicle 05 (GPS III-SV05) launched in June 2021 from Cape Canaveral Space Force Base, Florida, aboard a SpaceX Falcon 9 launch vehicle. (Photo: SpaceX)

    Control Segment

    The next-generation Operational Control System (OCX) continues to execute within its program baseline. OCX will provide enhanced command and control capabilities, modernized architecture, robust information assurance and cyber security.

    OCX’s incremental development approach began with OCX Block 0, which is the launch and checkout system (LCS) for GPS III. The LCS successfully supported the launch and checkout of GPS III SV 01–05. OCX Blocks 1 and 2 will control all legacy GPS III satellites and both legacy and modernized signals.

    Despite barriers presented by the global COVID-19 pandemic, all 17 global OCX monitoring station installations were completed in July 2021. Most of the remaining equipment was fielded throughout December 2021. System integration and verification continues with transition to operations scheduled for early 2023.

    The Next Generation OCX 3F contract was awarded in April 2021. The program will modify OCX to launch and control GPS IIIF satellites with enhanced capabilities. Acquisition Milestone B is expected in 2022, and operational acceptance is planned for 2027.

    MGUE: The future warfighter’s battlespace edge. (Image: Space Systems Command Production Corps)
    MGUE: The future warfighter’s battlespace edge. (Image: Space Systems Command Production Corps)

    User Equipment Segment

    Millions of GPS receivers are fielded, but very few of them can use the military code (M-code) signal that is being broadcast by 24 GPS SVs. To keep our competitive advantage against the adversary, the GPS enterprise is focused on developing modernized GPS user equipment (MGUE) that takes advantage of these signals. The MGUE program is a joint service program developing modernized, M-code-capable military GPS receivers. The program is broken into two increments (Inc 1 and Inc 2). Both are designed to deliver secure PNT performance, allow navigation warfare operations, enhance anti-jam, anti-spoof and anti-tamper, and enable Blue Force Electronic Attack.

    MGUE Inc 1 achieved a major milestone in September 2021 with successful testing on the Marine Corps Joint Light Tactical Vehicle (JLTV). The event took place in an electromagnetically degraded GPS environment at White Sands Missile Range, New Mexico. The JLTV is a pathfinder lead platform for the MGUE program. Lead platforms for the other services, the Army Stryker combat vehicle, Air Force B-2 bomber, and Navy Arleigh-Burke Class Guided Missile Destroyer, will commence integration testing in FY23 and FY24.

    MGUE Inc 2 development continues to make progress in maturing the next generation ASIC technology required for all weapon-system platforms to provide functionality and backward compatibility. It will deliver a miniature serial interface card in CY26 to support handheld and ground applications. Eventually, MGUE receiver cards will be loaded onto hundreds of Department of Defense (DOD) weapon systems.

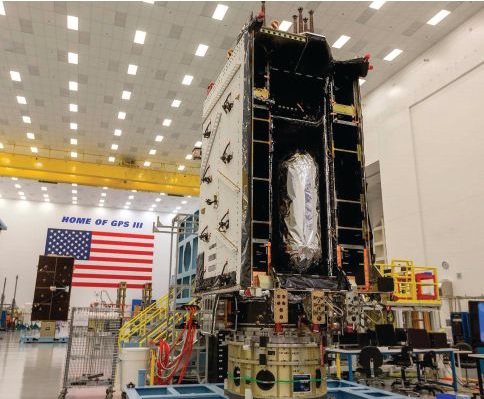

    GPS III SV04 in Highbay (Photo: Lockheed Martin)
    GPS III SV04 in Highbay (Photo: Lockheed Martin)

    Partner Community

    The GPS enterprise is committed to cooperation on a global basis. It works closely with the DOD, the armed services, the U.S. Coast Guard, other federal agencies, the International Civil Aviation Organization and all the other global and regional navigation satellite systems toward the development of PNT in the global commons.

    A highlight of this cooperative work is GPS enterprise involvement in the National Executive Committee for Space-Based PNT (PNT EXCOM), which supports the interests of the various federal bodies, especially the Department of Transportation (DOT) and the Federal Aviation Administration (FAA). The PNT EXCOM is applying GPS technology to a broad variety of governmental activities, including the development of the Next Generation Air Transportation System and intelligent transportation systems.

    The GPS enterprise commitment to international partners is unwavering. Our support to the North Atlantic Treaty Organization (NATO) is ongoing with support to the Capability Panel 2 for Navigation working toward the integration of MGUE and compatibility arrangements with Europe’s Galileo system. A highlight this year was the first delivery of MGUE loan equipment to the United Kingdom, Canada, Germany, and the Republic of Korea. Germany is the first country to purchase MGUE equipment.

    Conclusion

    GPS is the foundation of global PNT and a cornerstone of modern life. Improvements to the enterprise are continual. As the nation moves into the complex and dynamic world of the coming decades, the dedicated military, civilian and industry professionals that provide this world-changing capability will continue their challenging and rewarding work. Semper Supra!

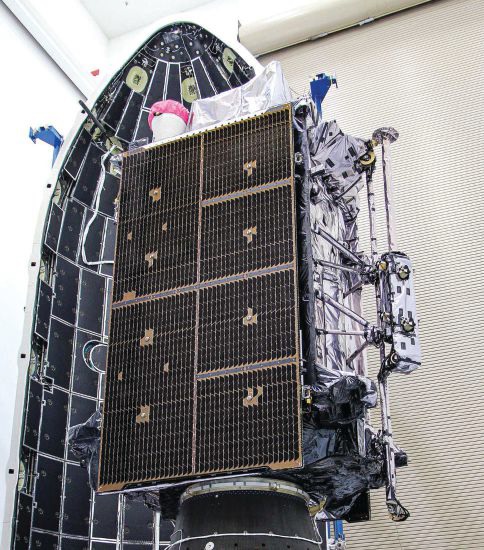

    The "encapsulation" of a GPS satellite. (Photo: U.S. Department of Defense)
    The “encapsulation” of a GPS satellite. (Photo: U.S. Department of Defense)
  • DOT holds first GPS backup technology demonstration

    DOT holds first GPS backup technology demonstration

    Notes from DoT GPS Backup Demos – Part I

    Government officials, advisors and congressional staff gathered at NASA’s Langley Research Center on March 13. They were there to discuss the Department of Transportation’s (DoT’s) GPS Backup Technology Demonstration program and view the offerings of six different companies.

    A second event to view and discuss technologies offered by the other five companies in the program is scheduled (as of this writing) for Friday, March 20, at Joint Base Cape Cod, Massachusetts.

    View from Washington, D.C.

    The day began with remarks by Karen Van Dyke from the U.S. Department of Transportation, as well as remarks prepared by Colonel Joseph Frankino, deputy director of the National Coordination Office, a multi-agency staff that supports the National Space-Based Positioning, Navigation, and Timing (PNT) Executive Committee, whose members were unable to attend.

    Van Dyke provided an overview of the program and pointed out the increasing importance of resilient PNT. As just one example, improvements in autonomy and self-driving cars are entirely dependent upon consumers having confidence in the entire system, much of which is underpinned by PNT.

    Col. Frankino’s remarks reflected the Defense Department’s commitment to and support of DoT’s resilient PNT efforts. He pointed out that the nation’s military depends upon the defense industrial base, which depends upon uninterrupted PNT.

    Volpe Transportation Systems Center

    The technology demonstration effort is being coordinated by Andrew Hansen from DoT’s Volpe Center. Dr. Hansen pointed out that the ongoing effort, the analysis and assessment of which is expected to be concluded in May, is a series of demonstrations vice tests. This means that the companies involved were showing what their systems could do, vice being measured against set criteria.

    He also mentioned that the maturity of all the systems involved seems to have improved significantly over the last year. All are at Technical Readiness Level 6 or better. Also, that things so far had gone very smoothly with no need for any “re-dos.”

    GPS and a cesium clock were being used as reference standards for the demos. Two of the systems, NextNav and Skyhook, were also demonstrated on a drone at Langley’s 150 acre open air site.

    Report and Transparency

    Data from the demos is not proprietary and belongs to the government which intends to make “as much of it available as possible.” DoT representatives mentioned several times their desire for maximum transparency.

    Admiral (ret.) Thad Allen (left), chair of the National PNT Advisory Board, was among the attendees learning about DoT’s GPS Backup Technology Demonstration project at NASA’s Langley Research Center. (Photo: RNT Foundation)
    Admiral (ret.) Thad Allen (left), chair of the National PNT Advisory Board, was among the attendees learning about DoT’s GPS Backup Technology Demonstration project at NASA’s Langley Research Center. (Photo: RNT Foundation)

    Attendee Observations

    After a day of viewing and discussing the six different technologies with their vendors, the group reconvened to offer feedback. All agreed the day was very worthwhile and complemented DoT and NASA on the event.

    Kicking off the discussion, the DoT hosts remarked that the department is fully committed to GPS and its modernization. That said, there is broad recognition of the importance of other PNT systems. This is evidenced by the recent White House Executive Order on PNT.

    Also, that there is no single solution that will fill the PNT needs of everyone. In fact, GPS does not serve the PNT needs of everyone. The need across sectors for a wide variety of sources to “backup” GPS is why the demonstration project includes some systems that only provide time, or only positioning.

    Feedback from attendees included:

    • The reason for this project is that we have a 20th-century GPS and 21st-century threats. New technologies need to be examined for vulnerabilities. Security must be “baked in” from the beginning. Moderators commented that the DHS Conformance Framework was one of the tools that would help with this.
    • Rural and other underserved areas (such as wilderness, remote transportation networks, maritime) need PNT and should be a part of the government calculus.
    • Many systems depend upon infrastructure provided by others versus being self-sufficient.
    • In the view of many in Congress, it is good to see the demos going well. Overall, though, things are about two years late. Members and staff are very interested in when there will be an RFP and schedule for implementing the timing system mandated by the National Timing Resilience and Security Act of 2018.
    Monty Johnson of OPNT demonstrates precise time transfer through 100 kilometers of spooled fiber-optic cable. (Photo: RNT Foundation)
    Monty Johnson of the company OPNT demonstrates precise time transfer through 100 kilometers of spooled fiber-optic cable. (Photo: RNT Foundation)

    Systems Demonstrated at NASA Langley

    During the course of the day, attendees had the opportunity to interact with representatives from the following companies and their systems.

    Vendor Service Technology
    TRX Positioning Inertial Measurement Units
    NextNav Positioning & Timing Metropolitan Beacons
    Skyhook Positioning WiFi, cell ranging, very large proprietary database of site locations
    Echo Ridge Positioning & Timing Uses Global Star LEO constellation of 24
    OPNT Timing Timing Fiber & White Rabbit protocol
    Seven Solutions Timing Timing Fiber & White Rabbit protocol



  • Spectrum Interference Standards: Seeking a Win-Win Rebound from Lose-Lose



    By Christopher J. Hegarty

    Based upon lessons learned from the LightSquared situation, the author identifies important considerations for GPS spectrum interference standards, recommended by the PNT EXCOM for future commercial proposals in bands adjacent to the RNSS band to avoid interference to GNSS.

    On January 13, 2012, the U.S. National Positioning, Navigation, and Timing Executive Committee (PNT EXCOM) met in Washington, D.C., to discuss the latest round of testing of the radiofrequency compatibility between GPS and a terrestrial mobile broadband network proposed by LightSquared. The proposed network included base stations transmitting in the 1525 – 1559 MHz band and handsets transmitting in the 1626.5 – 1660.5 MHz band. These bands are adjacent to the 1559 – 1610 MHz radionavigation satellite service (RNSS) band used by GPS and other satellite navigation systems. Based upon the test results, the EXCOM unanimously concluded that “both LightSquared’s original and modified plans for its proposed mobile network would cause harmful interference to many GPS receivers,” and that further “there appear to be no practical solutions or mitigations” to allow the network to operate in the near-term without resulting in significant interference.

    The LightSquared outcome was a lose-lose in the sense that billions were spent by the investors in LightSquared and, as noted by the EXCOM, “substantial federal resources have been expended and diverted from other programs in testing and analyzing LightSquared’s proposals.” To avoid a similar situation in the future, the EXCOM proposed the development of “GPS Spectrum interference standards that will help inform future proposals for non-space, commercial uses in the bands adjacent to the GPS signals and ensure that any such proposals are implemented without affecting existing and evolving uses of space-based PNT services.”

    This article identifies and describes several important considerations in the development of GPS spectrum interference standards towards achieving the stated EXCOM goals. These include the identification of characteristics of adjacent band systems and an assessment of the susceptibility of all GPS receiver types towards interference in adjacent bands. Also of vital importance to protecting GPS receivers is an understanding of the user base, applications, and where the receivers for each application may be located while in use. This information, along with the selection of proper propagation models, allows one to establish transmission limits on new adjacent-band systems that will protect currently fielded GPS receivers. The article further comments on the implications of the evolution of GPS and foreign satellite navigation systems upon the development of efficacious spectrum interference standards.

    Adjacent Band Characteristics

    The type of adjacent-band system for which there is currently the greatest level of interest is a nationwide wireless fourth-generation (4G) terrestrial network to support the rapidly growing throughput demands of personal mobile devices. Such a nationwide network would likely consist of tens of thousands of base stations distributed throughout the United States and millions of mobile devices. The prevalent standard at the present time is Long Term Evolution (LTE), which is being deployed by all of the major U.S. carriers. LTE and Advanced LTE provide an efficient physical layer for mobile wireless services. Worldwide Interoperability for Microwave Access (WiMAX) is a competing wireless communication standard for 4G wireless that is a far-distant second in popularity.

    For the purposes of the discussion within this article, an LTE network is assumed with characteristics similar to that proposed by LightSquared but perhaps with base stations and mobile devices that transmit upon different center frequencies and bandwidths. The primary characteristics include:

    • Tens of thousands of base stations nationwide, reusing frequencies in a cellular architecture, with the density of base stations peaking in urban areas.
    • Base-station antennas at heights from sub-meter to 150 meters above ground level (AGL), with a typical height of 20–30 meters AGL. Each base station site has 1–3 sector antennas mounted on a tower such that peak power is transmitted at a downtilt of 2–6 degrees below the local horizon, with a 60–70 degree horizontal 3-dB beamwidth and 8–9 degree vertical 3-dB beamwidth.
    • Peak effective isotropic radiated power (EIRP) in the vicinity of 20–40 dBW (100–10,000 W) per sector.
    • Mobile devices transmit at a peak EIRP of around 23 dBm (0.2 W), but substantially lower most of the time when lower power levels suffice to achieve a desired quality of service as determined using real-time power control techniques.
    • As LTE uses efficient transmission protocols, emissions can be accurately modeled as brickwall, that is, confined to a finite bandwidth around the carrier.

    Throughout this article it will be presumed that LTE emissions in the bands authorized for RNSS systems such as GPS will be kept sufficiently low through regulatory means.

    The opening photo shows a typical base-station tower, with three sectors per cellular service provider and with multiple service providers sharing space on the tower, including non-cellular fixed point microwave providers. As a cellular network is being built out, coverage is at first most important, and many base-station sites will use minimum downtilt and peak EIRPs within the ranges described above. As the network matures, capacity becomes more important. High-traffic cells are split through the introduction of more base stations, and this is commonly accompanied by increased downtilts and lower EIRPs.

    The assumed characteristics for adjacent band systems plays a paramount role in determining compatibility with GPS, and obviously lower-power adjacent-band systems would be more compatible. If compatibility with GPS precludes 4G network implementation on certain underutilized frequencies adjacent to RNSS bands, then it may be prudent to refocus attention for these bands on alternative lower-power systems.

    GPS Receiver Susceptibility

    Over the past two years, millions of dollars have been expended to measure or analyze the susceptibility of GPS receivers to adjacent band interference as part of U.S. regulatory proceedings for LightSquared. Measurements were conducted through both radiated (see photo) and conducted tests at multiple facilities, as well as in a live-sky demonstration in Las Vegas. This section summarizes the findings for seven categories of GPS receivers. These categories, which were originally identified in the Federal Communications Commission (FCC)-mandated GPS-LightSquared Technical Working Group (TWG) formed in February 2011, are: aviation, cellular, general location/navigation, high-precision, timing, networks, and space-based receivers.

    Aviation. Certified aviation GPS receivers are one of the few receiver types for which interference requirements exist. These requirements take the form of an interference mask (see Figure 1) that is included in both domestic and international standards. Certified aviation GPS receivers must meet all applicable performance requirements in the presence of interference levels up to those indicated in the mask as a function of center frequency. In Figure 1 and throughout this article, all interference levels are referred to the output of the GPS receiver passive-antenna element. Although the mask only spans 1500–1640 MHz, within applicable domestic and international standards the curves are defined to extend over the much wider range of frequencies from 1315 to 2000 MHz.

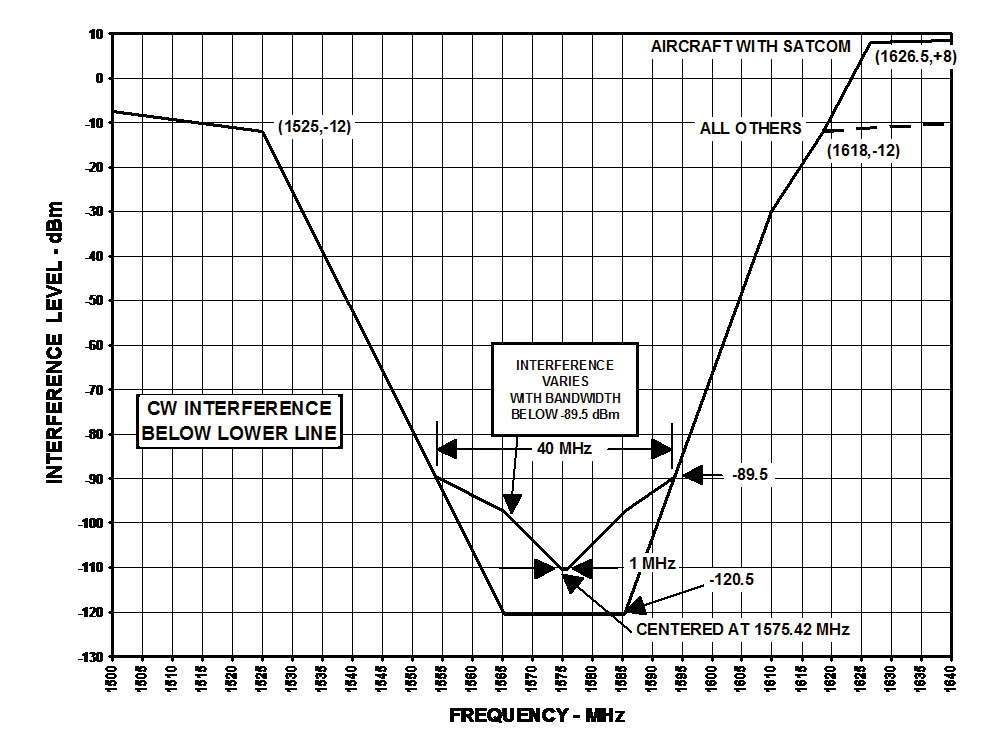

    Figure 1. Certified aviation receiver interference mask. Credit: Christopher J. Hegarty
    Figure 1. Certified aviation receiver interference mask.

    A handful of aviation GPS receivers were tested against LightSquared emissions in both conducted and radiated campaigns. The results indicated that these receivers are compliant with the mask with potentially some margin. However, the Federal Aviation Administration (FAA) noted the following significant limitations of the testing:

    • Not all receiver performance requirements were tested.
    • Only a limited number of certified receivers were tested, and even those tested were not tested with every combination of approved equipment (for example, receiver/antenna pairings).
    • Tests were not conducted in the environmental conditions that the equipment was certified to tolerate (for example, across the wide range of temperatures that an airborne active antenna experiences, and the extreme vibration profile that is experienced by avionics upon some aircraft).

    Due to these limitations, the FAA focused attention upon the standards rather than the test results for LightSquared compatibility analyses, and these standards are also recommended for use in the development of national GPS interference standards. One finding from the measurements of aviation receivers that may be useful, however, is that the devices tested exhibited susceptibilities to out-of-band interference that were nearly constant as a function of interference bandwidth. This fact is useful since the out-of-band interference mask within aviation standards is only defined for continuous-wave (pure tone) interference, whereas LightSquared and other potential adjacent-band systems use signals with bandwidths of 5 MHz or greater.

    Cellular. The TWG tested 41 cellular devices supplied by four U.S. carriers (AT&T, Sprint, US Cellular, and Verizon) against LightSquared emissions in the late spring/early summer of 2011. At least one of the 41 devices failed industry standards in the presence of a 5- or 10-MHz LTE signal centered at 1550 MHz at levels as low as –55 dBm, and at least one failed for a 10-MHz LTE signal centered at 1531 MHz at levels as low as –45 dBm. The worst performing cellular devices were either not production models or very old devices, and if the results for these devices are excluded, then the most susceptible device could tolerate a 10-MHz LTE signal centered at 1531 MHz at power levels of up to –30 dBm. Careful retesting took place in the fall of 2011, yielding a lower maximum susceptibility value of –27 dBm under the same conditions.

    General Location/Navigation. The TWG effort tested 29 general location/navigation devices. In the presence of a pair of 10-MHz LTE signals centered at 1531 MHz and 1550 MHz, the most susceptible device experienced a 1-dB signal-to-noise ratio (SNR) degradation when each LTE signal was received at –58.9 dBm. In the presence of a single 10-MHz LTE signal centered at 1531 MHz, the most susceptible device experienced a 1-dB SNR degradation when the interfering signal was received at –33 dBm.

    Much more extensive testing of the effects of a single LTE signal centered at 1531 MHz on general location/ navigation devices was conducted in the fall of 2011, evaluating 92 devices. The final report on this campaign noted that 69 of the 92 devices experienced a 1-dB SNR decrease or greater when “at an equivalent distance of greater than 100 meters from the LightSquared simulated tower.” Since the tower was modeled as transmitting an EIRP of 62 dBm, the 100-meter separation is equivalent to a received power level of around –14 dBm. The two most susceptible devices experienced 1-dB SNR degradations at received power levels less than –45 dBm.

    High Precision, Timing, Networks. The early 2011 TWG campaign tested 44 high-precision and 13 timing receivers. 10 percent of the high-precision (timing) devices experienced a 1-dB or more SNR degradation in the presence of a 10-MHz LTE signal centered at 1550 MHz at a received power level of –81 dBm (–72 dBm). With the 10-MHz LTE signal centered at 1531 MHz, this level increased to –67 dBm (–39 dBm).

    The reason that some high-precision GPS receivers are so sensitive to interference in the 1525–1559 MHz band is that they were built with wideband radiofrequency front-ends to intentionally process both GPS and mobile satellite service (MSS) signals. The latter signals provide differential GPS corrections supplied by commercial service providers that lease MSS satellite transponders, from companies including LightSquared.

    Space. Two space-based receivers were tested for the TWG study. The first was a current-generation receiver, and the second a next-generation receiver under development. The two receivers experienced 1-dB C/A-code SNR degradation with total interference power levels of –59 dBm and –82 dBm in the presence of two 5-MHz LTE signals centered at 1528.5 MHz and 1552.7 MHz. For a single 10-MHz LTE signal centered at 1531 MHz, the levels corresponding to a 1-dB C/A-code SNR degradation increased to –13 dBm and –63 dBm. The next-generation receiver was more susceptible to adjacent-band interference because it was developed to “be reprogrammed in flight to different frequencies over the full range of GNSS and augmentation signals.”

    Discussion. Although extensive amounts of data were produced, the LightSquared studies are insufficient by themselves for the development of GPS interference standards, since they only assessed the susceptibility of GPS receivers to interference at the specific carrier frequencies and with the specific bandwidths proposed by LightSquared. If GPS interference standards are to be developed for additional bands, then much more comprehensive measurements will be necessary.

    Interestingly, NTIA in 1998 initiated a GPS receiver interference susceptibility study, funded by the Department of Defense (DoD) and conducted by DoD’s Joint Spectrum Center. One set of curves produced by the study is shown in Figure 2. This format would be a useful output of a further measurement campaign. The curves depict the interference levels needed to produce a 1-dB SNR degradation to one GPS device as the bandwidth and center frequency of the interference is varied. The NTIA curves only extended from GPS L1 (1575.42 MHz) ± 20 MHz. A much wider range would be needed to develop GPS interference standards as envisioned by the PNT EXCOM. It may be possible, to minimize testing, to exclude certain ranges of frequencies corresponding to bands that stakeholders agree are unlikely to be repurposed for new (for example, mobile broadband) systems.

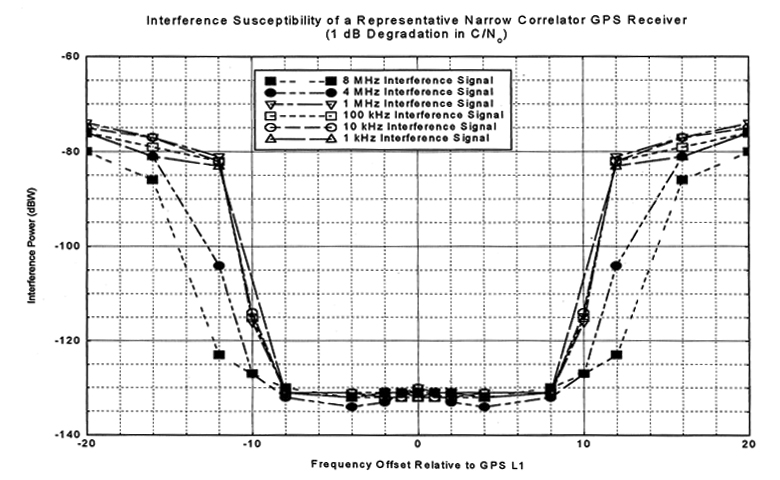

    Figure 2 Example of NTIA-initiated receiver susceptibility measurements from 1998. Credit: Christopher J. Hegarty
    Figure 2. Example of NTIA-initiated receiver susceptibility measurements from 1998.

    Receiver-Transmitter Proximity

    The LightSquared studies, with the exception of those focused on aviation and space applications, spent far less attention to receiver-transmitter proximity. Minimum separation distances and the associated geometry are obviously very important towards determining the maximum interference level that might be expected for a given LTE network (or other adjacent band system) laydown.

    Within the TWG, the assumption generally made for other (non-aviation, non-space) GPS receiver categories was that they could see power levels that were measured in Las Vegas a couple of meters above the ground from a live LightSquared tower. Figure 3 shows one set of received power measurements from Las Vegas. In the figure, the dots are measured received power levels made by a test van. The top curve is a prediction of received power based upon the free-space path-loss model. The bottom curve is a prediction based upon the Walfisch-Ikegami line-of-sight (WILOS) propagation model. The NPEF studies presumed that the user could be within the boresight of a sector antenna even within small distances of the antenna (where the user would need to be at a significant height above ground).

    Figure-5 . Credit: Christopher J. Hegarty

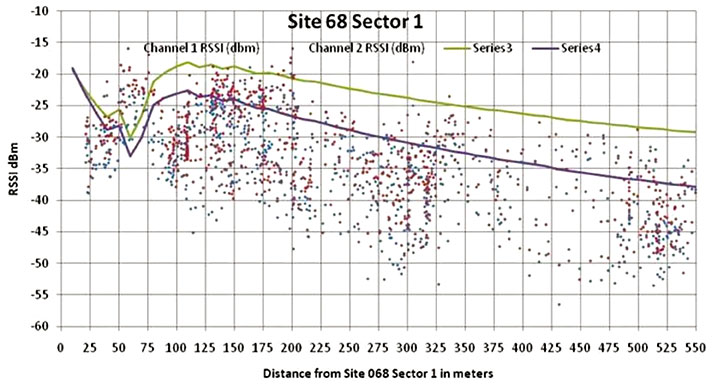

    Figure 3 Measurements of received power levels from one experimental LightSquared base station sector in Las Vegas live-sky testing.

    The difference between the above received LTE signal power assumptions has been hotly debated, especially after LightSquared proposed limiting received power levels from the aggregate of all transmitting base stations as measured a couple of meters above the ground in areas accessible to a test vehicle. After summarizing the aviation scenarios developed by the FAA, this section highlights scenarios where so-called terrestrial GPS receivers can be at above-ground heights well over 2 meters. The importance of accurately understanding transmitter-receiver proximity is illustrated by Figure 4. This shows predicted received power levels for one LTE base station sector transmitting with an EIRP of 30 dBW and with an antenna height of 20 meters (65.6 feet). The figure was produced assuming the free-space path-loss model and a typical GPS patch-antenna gain pattern for the user. Note that maximum received power levels are very sensitive to the victim GPS receiver antenna height.

    Figure 4 Received power in dBm at the output of a GPS patch antenna from one 30 dBW EIRP LTE base station sector at 20 meters. Credit: Christopher J. Hegarty
    Figure 4. Received power in dBm at the output of a GPS patch antenna from one 30 dBW EIRP LTE base station sector at 20 meters.

    Aviation. The first LightSquared-GPS study conducted for civil aviation was completed by the Radio Technical Commission for Aeronautic (RTCA) upon a request from the FAA. Due to the extremely short requested turnaround time (3 months), RTCA consciously decided not to devote any of the available time developing operational scenarios, but rather re-used scenarios that it had developed for earlier interference studies. It was later realized that the combination of five re-used scenarios and assumed LightSquared network characteristics did not result in an accurate identification of the most stressing real-world scenarios. For instance, within the RTCA report, base stations’ towers were all assumed to be 30 meters in height. At this height, towers could not be close to runway thresholds where aircraft are flying very low to the ground, because this situation would be precluded by obstacle clearance surfaces. Later studies used actual base-station locations, from which the aviation community became aware that cellular service providers do place base stations close to airports by utilizing lower base-station heights as necessary to keep the antenna structure just below obstacle clearance surfaces.

    The FAA completed an assessment of LightSquared-GPS compatibility in January 2012 that identified scenarios where certified aviation receivers could experience much higher levels of interference than was assessed in the RTCA report. The areas where fixed-wing and rotary-wing aircraft rely on GPS are depicted in Figures 5 and 6 (above the connected line segments), respectively.

    Figure-7 . Credit: Christopher J. Hegarty

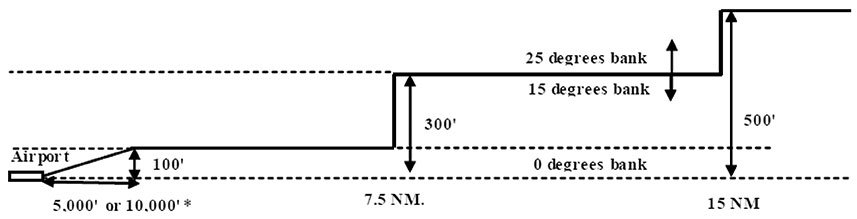

    Figure 5. Area where GPS use must be sssured for fixed-wing aircraft.
    Figure-8 . Credit: Christopher J. Hegarty

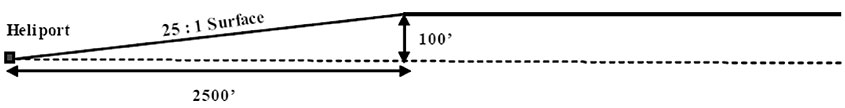

    Figure 6. Area where GPS use must be assured for rotary-wing aircraft.

    Aircraft rely upon GPS for navigation and Terrain Awareness and Warning Systems (TAWS). Helicopter low-level en-route navigation and TAWS for fixed- and rotary-wing aircraft are perhaps the most challenging scenarios for ensuring GPS compatibility with adjacent-band cellular networks. In these scenarios, the aircraft can be within the boresight of cellular sector antennas and in very close proximity, resulting in very high received-power levels. The FAA attempted to provide some leeway for LightSquared while maintaining safe functionality of TAWS through the concept of exclusion zones (see Figure 7). The idea of an exclusion zone is that, at least for cellular base-station transmitters on towers that are included within TAWS databases, that it would be permitted for the GPS function to not be available for very small zones around the LTE base-station tower. This concept is currently notional only; the FAA plans to more carefully evaluate the feasibility of this concept and appropriate exclusion-zone size with the assistance of other aviation industry stakeholders.

    Figure-9 . Credit: Christopher J. Hegarty

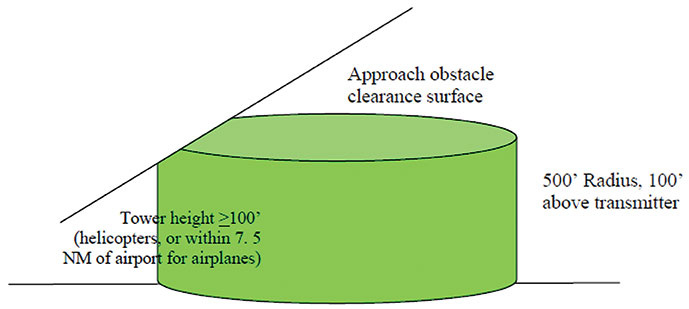

    Figure 7. Example exclusion area around base station to protect TAWS.

    High-precision and Networks: Reference Stations. To gain insight into typical reference-station heights for differential GPS networks, the AGL heights of sites comprising the Continuously Operating Reference Station (CORS) network organized by the National Geodetic Survey (NGS) were determined. The assessment procedure is detailed in the Appendix.

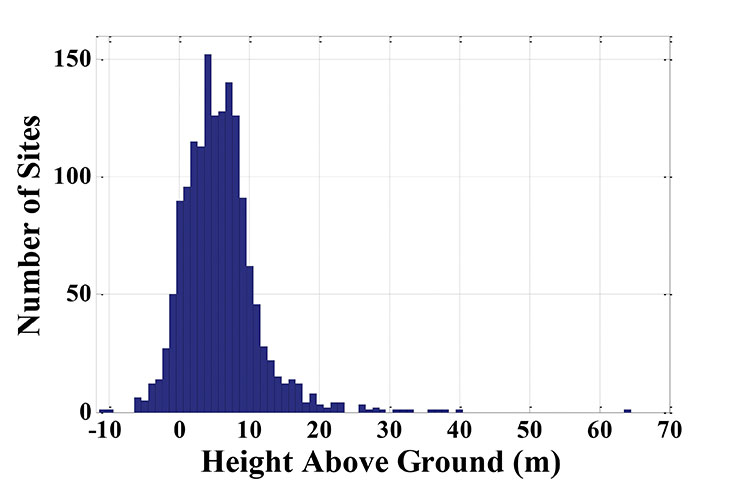

    Figure 8 portrays a histogram of estimated AGL heights for the 1543 operational sites within the continental United States (CONUS) as of February 2012. The accuracy of the estimated AGL heights is on the order of 16 meters, 90 percent, limited primarily by the quality of the terrain data that was utilized. The mean and median site heights are 5.7 and 5.2 meters, respectively.

    Figure 8. Distribution of heights for CORS sites. Credit: Christopher J. Hegarty
    Figure 8. Distribution of heights for CORS sites.

    RALR, atop the Archdale Building in Raleigh, North Carolina, was the tallest identified site at 64.1 meters. This site, however, was decommissioned in January 2012 (although it was identified as operational in a February 2012 NGS listing of sites). The second tallest site identified is WVHU in Huntington, West Virginia at 39.6 meters, which is still operational atop of a Marshall University building. 223 of the 1543 CORS sites within CONUS have AGL heights greater than 10 meters, and furthermore the taller sites tend to be in urban areas where cellular networks tend to have the greatest base-station density.

    High Precision and Networks: End Users. Many high-precision end users employ GPS receivers at considerable heights above ground. For instance, high-precision receivers are relied upon within modern construction methods. The adjacent photos show GPS receivers used for the construction of a 58-story skyscraper called The Bow in Calgary, Canada. For this project, a rooftop control network was established on top of neighboring buildings using both GPS receivers and other surveying equipment (for example, 360-degree prisms for total stations), and GPS receivers were moved up with each successive stage of the building to keep structural components plumb and properly aligned. Similar techniques are being used for the Freedom Tower, the new World Trade Center, in New York City, and many other current construction projects.

    Other terrestrial applications that rely on high-precision GPS receivers at high altitudes include structural monitoring and control of mechanical equipment such as gantry cranes. At times, even ground-based survey receivers can be substantially elevated. Although a conventional surveying pole or tripod typically places the GPS antenna 1.5 – 2 meters above the ground, much longer poles are available and occasionally used in areas where obstructions are present. 4-meter GPS poles are often utilized, and poles of up to 40 ft (12.2 meters) are available from survey supply companies.

    General Location/Navigation. Although controlling received power from a cellular network at 2 meters AGL may be suitable to protect many general navigation/location users, it is not adequate by itself. For example, GPS receivers are used for tracking trucks and for positive train control (the latter mandated in the United States per the Rail Safety Improvement Act of 2008). GPS antennas for trucks and trains are often situated on top of these vehicles. Large trucks in the United States for use on public roads can be up to 13 ft, 6 in (~4.1 meters), and a typical U.S. locomotive height is 15 ft, 5 in (~4.7 meters). Especially in a mature network that is using high downtilts, received power at these AGL heights can be substantially higher than at 2 meters.

    Within the TWG and NPEF studies, the general location/navigation GPS receiver category is defined to include non-certified aviation receivers. One notable application is the use of GPS to navigate unmanned aerial vehicles. UAVs are increasingly being used for law enforcement, border control, and many other applications where the UAV can be expected to occasionally pass within the boresight of cellular antennas at short ranges.

    Cellular. The majority of Americans own cell phones, and a growing number are using cell phones as a replacement for landlines within their home. Already, 70 percent of 911 calls are made on mobile phones. Although pedestrians and car passengers are often within 2 meters of the ground, this is not always the case. Figure 9 shows three cellular sector antennas situated atop a building filled with residential condominiums. The rooftop is accessible and frequently used by the building inhabitants. According to an online real estate advertisement, “The Garden Roof was voted the Best Green Roof in Town and provides amazing 360 degree views of downtown Nashville as well as four separate sitting areas and fabulous landscaping.” One of the sector antennas is pointing towards the opposite corner of the building. If the downtilt is in the vicinity of 2–6 degrees, then it is quite likely that a person making a 911 call from the rooftop could see a received power level of –10 dBm to 0 dBm, high enough to disrupt GPS within most cellular devices if the antennas were transmitting in the 1525–1559 MHz band.

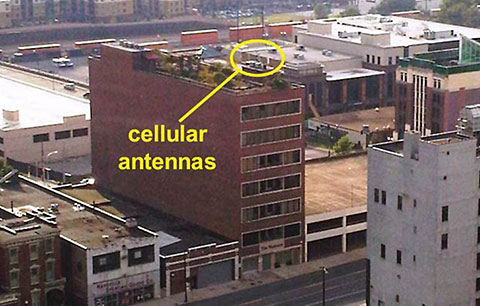

    Figure 9. Cellular antennas atop Westview Condominium Building in downtown Nashville. Credit: Christopher J. Hegarty
    Figure 9. Cellular antennas atop Westview Condominium Building in downtown Nashville.

    This situation is not unusual. Many cellular base stations are situated on rooftops in urban areas, and many illuminate living areas in adjacent buildings. In recent years, New York City even considered legislation to protect citizens from potential harmful effects of the more than 2,600 cell sites in the city, since many sites are in very close proximity to residential areas.

    Propagation Models

    Within the LightSquared proceedings, there was a tremendous amount of debate regarding propagation models. Communication-system service providers typically use propagation models that are conservative in their estimates of received power levels in the sense that they overestimate propagation losses. This conservatism is necessary so that the service can be provided to end users with high availability. From the standpoint of potential victims of interference, however, it is seen as far more desirable to underestimate propagation losses so that interference can be kept below an acceptable level a very high percentage of time. As shown in Figure 3, some received power measurements from the Las Vegas live-sky test indicate values even greater than would be predicted using free-space propagation model. Statistical models that allow for this possible were used in the FAA Status Report. The general topic of propagation models is worthy of future additional study if GPS interference standards are to be developed.

    Future Considerations

    GPS is being modernized. Additionally, satellite navigation users now enjoy the fact that the Russian GLONASS system has recently returned to full strength with the repopulation of its constellation. In the next decade, satellite navigation users also eagerly anticipate the completion of two other global GNSS constellations: Europe’s Galileo and China’s Compass. Notably, between the GPS modernization program and the deployment of these other systems, satellite navigation users are expected to soon be relying upon equipment that is multi-frequency and that needs to process many more signals with varied characteristics. New equipment offers an opportunity to insert new technologies such as improved filtering, but of course the need to process additional signals and carrier frequencies may make GNSS equipment more susceptible to interference as well. Clearly, these developments will need to be carefully assessed to support the establishment of GPS spectrum interference standards.

    Summary

    This article has identified a number of considerations for the development of GPS interference standards, which have been proposed by the PNT EXCOM. If the United States proceeds with the development of such standards, it is hoped that the information within this article will prove useful to those involved.

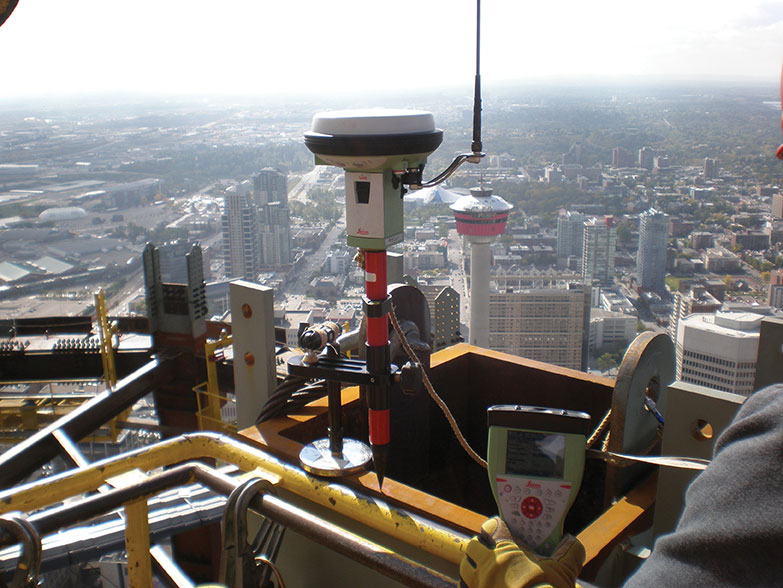

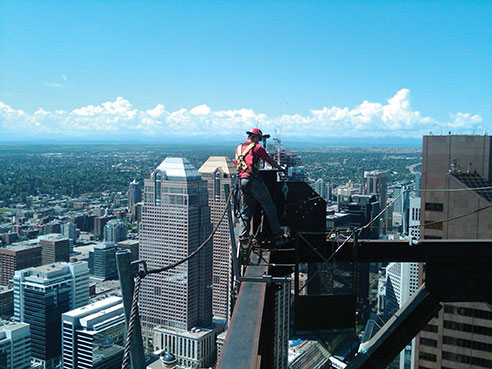

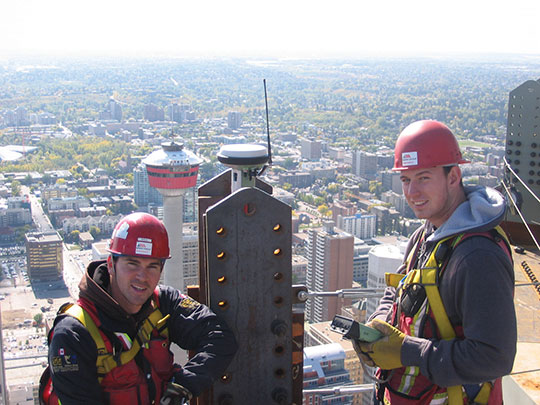

    Bow highrise under construction in Calgary, showing GPS receivers in use ( . photos courtesy Rocky Annett, MMM Group Ltd.) .Credit: Christopher J. Hegarty
    Bow highrise under construction in Calgary, showing GPS receivers in use (photos courtesy Rocky Annett, MMM Group Ltd.)
    Bow highrise under construction in Calgary, showing GPS receivers in use (photos courtesy Rocky Annett, MMM Group Ltd.) . Credit: Christopher J. Hegarty
    (Photo courtesy of Rocky Annett, MMM Group Ltd.)
    Bow highrise under construction in Calgary, showing GPS receivers in use (photos courtesy Rocky Annett, MMM Group Ltd.) . Credit: Christopher J. Hegarty
    (Photo courtesy of Rocky Annett, MMM Group Ltd.)



    Appendix: AGL Heights of CORS Network Sites

    The National Geodetic Survey Continuously Operating Reference Station (CORS) website provides lists of CORS site locations in a number of different reference frames. To determine the height above ground level (Screen shot 2013-01-07 at 12.35.25 PM . Credit: Christopher J. Hegarty) for each site within this study, two of these files (igs08_xyz_comp.txt and igs08_xyz_htdp.txt) were used. These two files provide the (x,y,z) coordinates of the antenna reference point (ARP) for each site in the International GNSS Service 2008 (IGS08) reference frame, which is consistent with the International Terrestrial Reference Frame (ITRF) of 2008. These coordinates are divided into two files by NGS, since the site listings also provide site velocities and velocities are either computed (for sites that have produced data for at least 2.5 years) or estimated (for newer sites). The comp file includes sites with computed velocities and the htdp file includes sites with estimated velocities (using a NGS program known as HTDP).

    The data files can be used to readily produce height above the ellipsoid, Screen shot 2013-01-07 at 12.35.17 PM .  Credit: Christopher J. Hegarty, for each site. This height can be found using well-known equations to convert from (x, y, z) to (latitude, longitude, height). Obtaining estimates of Screen shot 2013-01-07 at 12.35.25 PM . Credit: Christopher J. Hegarty requires information on the geoid height and terrain data, per the relationship:

    Screen shot 2013-01-07 at 12.35.31 PM .Credit: Christopher J. Hegarty  (A-1)

    For the results presented in this article, terrain data was obtained from http://earthexplorer.usgs.gov in the Shuttle Radar Topography Mission (SRTM) Digital Terrain Elevation Data (DTED) Level 2 format. For this terrain data, the horizontal datum is the World Geodetic System (WGS 84). The vertical datum is Mean Sea Level (MSL) as determined by the Earth Gravitational Model (EGM) 1996. Each data file covers a 1º by 1º degree cell in latitude/longitude, and individual points are spaced 1 arcsec in both latitude and longitude. The SRTM DTED Level 2 has a system design 16 meter absolute vertical height accuracy, 10 meters relative vertical height accuracy, and 20 meter absolute horizontal circular accuracy. All accuracies are at the 90 percent level. Considering the accuracies of the DTED data, the differences between WGS-84 and IGS08 as well as between the ARP and antenna phase center were considered negligible. Geoid heights were interpolated from 15-arcmin data available in the MATLAB Mapping Toolbox using the egm96geoid function.

    Lower AGL heights are preferred for CORS sites to minimize motion between the antenna and the Earth’s crust. However, many sites are at significant heights above the ground by necessity, particularly in urban areas due to the competing desire for good sky visibility.


    Christopher J. Hegarty is the director for communications, navigation, and surveillance engineering and spectrum with The MITRE Corporation. He received a D.Sc. degree in electrical engineering from George Washington University. He is currently the chair of the Program Management Committee of the RTCA, Inc., and co-chairs RTCA Special Committee 159 (GNSS). He is the co-editor/co-author of the textbook Understanding GPS: Principles and Applications, 2nd Edition.



  • Never Again? Oh, Again and Again.

    When the last English inhabitant of Virginia’s Lost Colony succumbed to hunger or swamp fever or local assimilation in 1588, Chesapeake chief Powhatan may have turned to his council and said, “Well, that’s the last of that. No more will we be troubled by outsiders infringing on our territory. Let’s get back to doing what we do best.”

    That would have been a monumental mistake, of course. Wave upon wave upon wave of outsiders followed, building over course of time the entity we now know as the United States and leaving precious little for the land’s original inhabitants.

    Let us now contemplate ourselves as the original holders, by right, of spectrum bands at 1176.45 MHz (L5), 1227.60 MHz (L2), 1381.05 MHz (L3), and 1575.42 MHz (L1). We have repelled the LightSquared encroachers, who sought to appropriate, well, not exactly our bands, but bands close enough to cause trouble. Having expended many millions in the effort, we can now return to our various businesses, secure in having demonstrated both our rights and our rightness.

    No, we cannot afford to do that.

    Radio spectrum is today’s natural resource, vital to current ventures and even more essential to future business and national growth of all kinds. It is far too valuable to be taken for granted, and far too vulnerable to be left protected simply by the Plan A recently demonstrated.

    We will see attempt upon attempt upon attempt to use closely neighboring spectra in disturbing ways — and, I daresay, even to dislodge GNSS from the bands it now holds. Petitions to redistribute, reallocate, and/or redefine spectra. Treaties, if you will. Students of history know how that goes.

    Digging in deeper will not answer. It is questionable even now whether the numbers of GPS installed user base or the dollars they represent were sufficient to turn back the LightSquared initiative. It may have been, purely and simply, the Pentagon and the FAA.

    At any rate, the millions of installed GPS users and billions of dollars in industry and infrastructure may soon be dwarfed by billions of potential users and gazillions in economic benefit that broadband or any other spectrum-driven enterprise may muster. Just as the numbers of Native Americans were quickly and vastly overcome by Europe’s teeming masses.

    Two courses lie immediately open to the GPS community, and there may be more.

    1. Participate actively, pro-actively, even aggressively — and certainly with no time to waste — in the effort to define receiver standards. The NTIA and PNT EXCOM will devise “standards for the development and procurement of GPS receivers to support their various mission requirements.” NTIA recognized “the importance that receiver standards could play as part of a forward-looking model for spectrum management even beyond the immediate issue of GPS.”
      Get on board, bring productive ideas, work them through the process as efficiently and cooperatively as possible. Then design new products accordingly. Regulatory agencies, national and international, will have little patience with broadened use of other bands, no matter how long high-precision receivers have been doing it. We have been put on notice.
    2. Aid, encourage, design products for interoperable GNSS, not to mention modernized GPS, particularly L5. Seek touchpoints with Galileo, GLONASS, and Compass developers, operators, and manufacturers. The broader, more wide-laned the base, the more frequencies that users and equipment can draw on, the more stable will be their operations, and the less vulnerable to encroachment, interference, or downright exclusion.

    Perhaps you have thought of other ways to ensure GNSS viability in a future of increasing demands for spectrum. I would love to hear them, and share them with our readers.
