  • Swift Navigation: Driving safety for consumers

    Swift Navigation: Driving safety for consumers

    An interview with Fergus Noble, CTO at Swift Navigation about recent GNSS receiver innovations.


    Fergus Noble
    Noble

    What was the most significant technical innovation in your GNSS receivers in the past five years?

    At Swift Navigation, our mission has been to bring precise positioning technology to the mass market. We focus on the applications that touch our everyday lives — automotive, transportation, robotics and mobile devices. To realize that mission, we have had to innovate beyond traditional GNSS techniques. There are three areas where Swift has had to push the boundaries of GNSS technology: scalability, affordability and safety.

    To meet the scalability needs of applications — such as automotive ones, which require continental-scale coverage for millions of devices — we have had to develop new techniques for providing GNSS corrections. We have developed new algorithms to precisely model the Earth’s atmosphere and other sources of GNSS error over wide areas in real-time and deliver them via scalable state-space representation (SSR) format.

    To make the technology affordable, we have partnered with GNSS chipset providers to bring precise positioning performance to vehicles and consumer devices that was previously only achievable using expensive industrial receivers.

    Swift brings to vehicles precise positioning that was previously only achievable with expensive industrial receivers. (Photo: metamorworks/iStock/Getty Images Plus/Getty Images)
    Swift brings to vehicles precise positioning that was previously only achievable with expensive industrial receivers. (Photo: metamorworks/iStock/Getty Images Plus/Getty Images)

    To make the technology safe, we have developed the most sophisticated end-to-end positioning integrity system available today. This integrity provides our customers with the guarantee of safety needed for autonomous and industrial applications, as well as certifying to industry safety standards such as ISO-26262 (ASIL).

    What has it enabled users to do that they could not do before?

    Previous precise positioning solutions did not apply to applications such as autonomous driving as they were too costly to go into a vehicle, had the required accuracy only in limited coverage areas, and could not provide the guarantees of integrity such that they could be relied upon as a safety-critical sensor. The same limitations applied to last-mile transportation, consumer robotics — such as lawnmowers — and even mobile applications.

    Swift’s technology enables our customers to unlock these use cases by providing reliable and seamless precise positioning to our users at continental scale.

    What is a good example of this?

    Swift’s technology is now powering one of the largest vehicle fleets on the road today equipped with advanced driver-assistance systems (ADAS). It improves vehicle positioning for an enhanced user experience when navigating, as well as to upgrade the ADAS functionality.

    We also have customers using our technology to track and improve safety across a continent-wide rail network, provide precise position to improve the efficiency of last-mile delivery fleets, and a host of other applications across both emerging and traditional GNSS markets.

  • S.E.A. Datentechnik and M3 Systems partner on V2X and ADAS

    S.E.A. Datentechnik and M3 Systems partner on V2X and ADAS

    SEA-logo

    S.E.A. Datentechnik GmbH is partnering with M3 Systems on advanced GNSS emulation technology. The new partnership aims to provide high-quality GNSS tools for current and future automotive vehicle-to-everything (V2X) communication and advanced driver-assistance systems (ADAS) applications.

    Photo:S.E.A. Datentechnik is a developer and system integrator for advanced radio frequency and V2X test and measurement systems, serving chipset vendors, automotive suppliers and OEMs.

    The StellaNGC Software Suite by M3 Systems integrates seamlessly into automotive test environments to meet customer needs.

    The two companies are leading, well established partners for the National Instruments (NI) platform. The signed partnership ensures the availability of advanced and competitive technology for global test solutions.

    “We are sure that the cooperation of our companies provides a high value for customers for the development, validation and production test of actual and future V2X and Connected Car technologies,” said Gerd Schmitz, co-founder, and CEO of S.E.A. “The combination of the deep experience GNSS technology of M3 Systems with S.E.A. V2X products and competence provides tailored test solutions for reasonable cost.”

    “M3 Systems is pleased to be working with S.E.A. on V2X and ADAS using the NI platform,” said Marc Pollina, CEO of M3 Systems. “V2X expands the capability of M3 Systems to serve automotive suppliers, chipset vendors and other V2X/ADAS users. V2X is synergistic with M3 Systems’ expertise in GNSS technology and simulation.”

    V2X from S.E.A.

    Compact, automated turnkey S.E.A. test systems enable the efficient and reliable test of V2X technologies using scalable software and hardware components.

    The modular V2X test platform from S.E.A. is based on software-defined radio (SDR) technology and includes all aspects of automated V2X test, including measurements on the physical layer for RF-compliance, protocol or production testing, and integrated V2X traffic scenario simulation for the test of V2X applications.

    International V2X standards for North America, Europe and China are supported for scenario-based testing by open-loop or closed-loop hardware-in-the-loop (HIL) systems. Test catalogs for specific test applications such as RF-conformance measurements and V2X Day 1 Use Case testing are available for efficient use of the flexible test systems.

    GNSS from M3 Systems

    High-quality simulation of GNSS signals for the different constellations — GPS, Galileo, Glonass and Beidou — are required for V2X and ADAS test system applications.

    The M3 Systems StellaNGC Software Suite integrates seamlessly into the test environment and fulfills the high demands of customers. The application of the NI PXI platform for GNSS and communication emulation enables the powerful and seamless integration of GNSS as well as other sensor and communication technologies: radar, lidar and cameras for HIL ADAS/autonomous technology test systems.

  • NovAtel launches new products for automotive GNSS positioning

    NovAtel launches new products for automotive GNSS positioning

    Hexagon | NovAtel has introduced the PIM222A, part of a new family of automotive GNSS positioning products for advanced driver assistance systems (ADAS) and autonomy.  The PIM222A harnesses NovAtel’s decades of experience delivering precise positioning in demanding applications for mass deployment in ADAS applications and autonomous vehicles.

    Built with automotive-qualified hardware in a package that is easy to integrate, the PIM222A leverages SPAN technology from NovAtel to provide accurate position data in urban environments that challenge GNSS availability. Deeply-coupled GNSS receivers and inertial measurement units (IMUs) ensure continuous availability of position, velocity and attitude, even when satellite signals are briefly blocked.

    “I’m excited to introduce the PIM222A, truly the best of both worlds for high-performance GNSS and automotive standards,” said Gordon Heidinger, Segment Manager for Automotive and Safety Critical Systems. “It helps our customers jump-start their development activity for high-precision GNSS, fully supporting performance for all levels of autonomy, ADAS and positioning needs.”

    The PIM222A, which was created in collaboration with STMicroelectronics, is a lightweight, power-efficient, solder-down module that maximizes flexibility for integration. The receiver design can be applied to low-, medium- and high-production volumes while retaining a rich array of features, including options such as multi-frequency, multi-constellation, RTK and dual-antenna precision.

    The degree of slow-speed and initialization performance is maximized with the dual antenna feature, enabling the best possible positioning performance in all ADAS and autonomous driving situations.

    Development kits for the PIM222A are available now for integrators in need of a positioning essentials solution for low- to high-quantity applications.

  • Swift Navigation precise positioning technology improves GNSS receiver accuracy

    Swift Navigation precise positioning technology improves GNSS receiver accuracy

    Swift Navigation announced its precise positioning platform can improve the performance of existing single-frequency GNSS positioning, found on most production vehicles today, from the standard average of 3 meters to lane-level accuracy without changing existing hardware and antenna.

    According to Swift, these findings are demonstrated during the regular test drives the Swift team conducts to confirm the efficacy of its solutions and software updates. The graph depicts the improved positioning accuracy and availability when a single-frequency receiver is used with corrections from the Skylark precise positioning service and the Starling positioning engine, Swift said. A performance improvement from 2 meters to 0.7 meters for 95% of this mixed-environment drive was achieved on a production vehicle with a low-cost automotive receiver and antenna.

    Graph: Swift Navigation
    Graph: Swift Navigation

    Skylark, Swift’s wide area, cloud-based GNSS corrections service delivers real-time, high-precision positioning, is hardware-independent and is most accurate and seamless when integrated with Starling as a complete solution. Starling is a high-precision positioning engine that works with a variety of automotive-grade GNSS chipsets and inertial sensors, making it ideal for autonomous, ADAS (advanced driver assistance systems), V2X (vehicle-to-everything) and navigation applications, Swift added. Starling is platform-independent and also enhances the measurements for commercially available GNSS receivers.

    “Swift is excited to share these findings with the public,” said Joel Gibson, executive vice president of automotive at Swift. “The ability to provide higher accuracy to programs without requiring hardware changes can be a game changer for cost-sensitive programs and brings immediate visible benefit to navigation systems, V2X and many other applications.”

  • Spirent SimHIL tests GNSS/sensor fusion for auto industry

    Spirent SimHIL tests GNSS/sensor fusion for auto industry

    New hardware-in-the-loop application programming interface (API) for GNSS simulators enables greater accuracy, integrity and control for growing sensor fusion testing needs

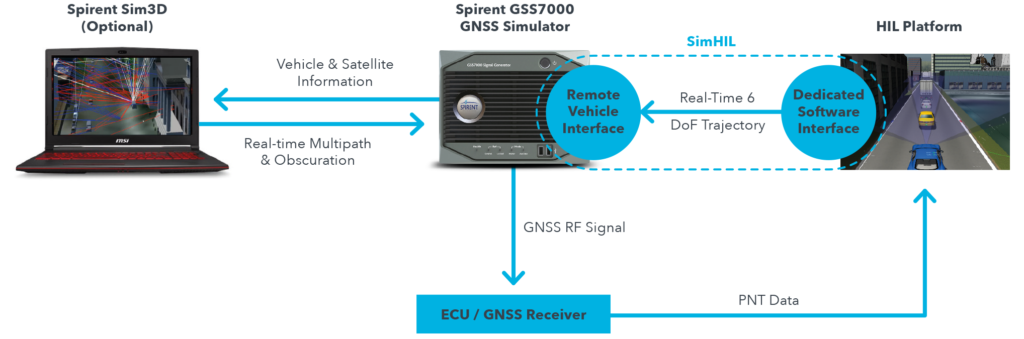

    Spirent Communications plc has released SimHIL, an integrated hardware-in-the-loop (HIL) testing software API for Spirent GNSS simulators.

    SimHIL brings high-fidelity GNSS signal simulation with low latency to automotive industry HIL testbeds, the company said.

    Image: Spirent
    Image: Spirent

    Spirent’s SimHIL software has been developed to meet the automotive industry’s growing need for realistic positioning, navigation and timing (PNT) testing for sensor fusion. As customers apply increasing pressure on car manufacturers for more advanced driver-assistance system (ADAS) features and advanced infotainment systems, test labs need to be able to combine Wi-Fi, camera, lidar, radar, inertial and GNSS data that power these advanced automotive systems.

    SimHIL helps test engineers bring accurate, controlled and coherent data from GNSS and inertial sensors to their sensor-fusion algorithms within HIL test environments. Facilitating the ultra-low latency, complete control, enhanced realism, and ease of use and setup of Spirent GSS7000 and GSS9000 GNSS simulators, SimHIL is suitable for OEMs and tier-one suppliers developing ADAS, V2X and sensor-fusion engines.

    The new SimHIL API enables:

    • external motion input – real-time direct motion and trajectory data input from simulators
    • sensor fusion – introducing GNSS signals into sensor-fusion engines
    • V2X testing – validation and performance benchmarking of V2X applications
    • infotainment system testing – real-time scenario feedback to system and driver responses
    • vehicle-in-the-loop (VIL) – final production form product testing
    • accurate testing – reliable results supported by ultra-low latency simulation. Criticality of ADAS features, such as lane assist and automatic braking, mean that 3+ metres of uncertainty introduced by higher latency systems is not sufficient.

    “With our SimHIL software and GNSS simulators, test engineers can bring realistic, controlled GNSS simulation to their HIL testing environments – a vital requirement in a world where ADAS features are relying more heavily and critically on accurate positioning,” said Martin Foulger, general manager of Spirent’s PNT business.

    Spirent has worked with leading suppliers to ensure SimHIL is compatible with their HIL platforms, and because of its open API, there’s broad scope for additional custom third-party integrations.

    “When used with our GSS7000, SimHIL latency is less than 40 ms from motion command to RF output and supports all GNSS and SBAS signals,” said Ricardo Verdeguer Moreno, product manager for Connected and Autonomous Vehicles at Spirent. “SimHIL is also compatible with all the options and features available in Spirent’s GNSS simulators, including ionospheric and tropospheric modeling, antenna patterns, date and time settings, and obscuration and multipath effects via Sim3D.”

    Users can easily configure and control both the GNSS scenarios, and signal generation and vehicle motion from within the HIL simulator graphical user interface — saving time and the possibility of error.

    Spirent is also offering three service packages alongside SimHIL to help customers mitigate project risk and reduce the time from delivery to useful deployment.

    For more information about Spirent’s SimHIL integrated testing for Spirent GNSS simulators, visit the SimHIL information page.

  • Innovation: Quo vademus

    Innovation: Quo vademus

    Future automotive GNSS positioning in urban scenarios

    By Martin Escher, Mirko Stanisak and Ulf Bestmann


    INNOVATION INSIGHTS with Richard Langley
    INNOVATION INSIGHTS with Richard Langley

    WHERE ARE WE GOING with GNSS positioning? There have been many advances in satellite-based positioning over the past couple of decades and there are more to come.

    Probably the most significant advance, affecting the most users, has been the further miniaturization of GNSS chipsets and modules. Virtually every mobile phone now includes a GPS component. Developers have also made these embedded devices more sensitive so that they can work with smaller, less efficient antennas. Furthermore, GPS satellites are now being launched with additional, more capable signals and already high-end receivers are starting to use these signals. Once full constellations transmitting these signals are in place, consumer devices will likely make use of them as well.

    Another very important advance in GNSS positioning has been the development of additional GNSS constellations and multi-GNSS receivers capable of using their signals. Actually, it’s been a multi-GNSS world for quite a while now. The Russians began development of GLONASS shortly after work began on fielding GPS and both systems achieved full operational capability in the mid-1990s. Unfortunately, due to financial problems following the break-up of the Soviet Union, the number of operating GLONASS satellites fell to the single digits making the system virtually unusable. However, with renewed government support, GLONASS has once again become a viable GNSS and many consumer and professional receivers can track and use GLONASS signals along with those of GPS.

    In the 1990s, we also saw the development of the U.S. Wide Area Augmentation System, transmitting GPS correction and integrity information from geostationary satellites on the GPS L1 (and subsequently L5) frequency. Other compatible satellite-based augmentation systems followed, including the European Geostationary Navigation Overlay Service, Japan’s Multi-Functional Transport Satellite Satellite-based Augmentation System, India’s GPS Aided GEO Augmentation System, and Russia’s System for Differential Correction and Monitoring. Besides enhancing integrity, the data transmitted by the satellites of these systems improves GPS pseudorange-based positioning accuracy, sometimes to below the one-meter level.

    Starting about 15 years ago, we have seen the development of additional autonomous GNSSs, joining GPS and GLONASS. The European Galileo system is under construction as is China’s BeiDou system. And although only providing regional coverage, we should also mention Japan’s Quasi-Zenith Satellite System and the Indian Regional Navigation Satellite System. While all of the new systems are still in development and full constellations are still some years away from completion, the signals from the satellites already in orbit can be used to supplement those received from GPS and GLONASS satellites to improve positioning and navigation availability for some difficult navigation scenarios.

    One of the most difficult situations requiring a continuous positioning capability is driving in built-up areas where buildings and other objects can block the signals from a number of GPS satellites such that GPS-only positioning becomes impossible. Even if four or more satellites are in view of the satellite navigation receiver’s antenna, those satellites might have unfavorable geometry, resulting in significantly degraded positioning accuracy. However, if the receiver can access the signals of two or more GNSSs, then position fixes might be available where none were possible with GPS alone, and the accuracies of marginal fixes might be improved.

    In this month’s column, we take a look at some early work in using multi-GNSS plus additional sensors for navigating in the heart of the city of Braunschweig, Germany (the birth place of Johann Friedrich Carl Gauss, the inventor of least squares and the father of modern geodesy), and how the additional signals can help us to get where we’re going.


    In the near future, we will see the introduction of more and more next-generation advanced driver assistance systems (ADASs) targeting the field of automated or autonomous driving. These systems will have to be considered as safety critical. In contrast to conventional localization systems, they will have to guarantee a higher overall accuracy and integrity to their target applications. Of course, the overall performance of any localization system is mostly limited by its behavior during the worst conditions.

    Such behavior is a very limiting factor especially for an ADAS that uses a GNSS such as GPS. The accuracy and integrity of GNSS depend on the quality and availability of satellite signals. The more signals that are available, the greater are the accuracy and integrity. However, as GNSS signals can be blocked easily, the worst-time behavior is difficult to characterize, especially in challenging urban scenarios important for an ADAS.

    To face these challenges, additional sensors such as inertial measurement units (IMUs) or odometers can be used for positioning as well. These sensors can increase the availability and accuracy for situations where GNSS-based positioning is not available. Additionally, the characteristics of these sensors are complementary to satellite navigation. The combination of these sensors with satellite navigation thus has the potential to achieve a positioning accuracy and integrity superior to that of single-system performance.

    As the number of GNSS measurements is crucial for a precise position fix, the parallel use of different GNSS constellations can improve the overall performance significantly.

    Four global satellite-positioning systems are now available. The American GPS and the Russian GLONASS have been in operation for years and are already used in a wide variety of applications. Additionally, newer systems like the European Galileo and the Chinese BeiDou systems are under construction. Even though these systems do not have continuous worldwide availability at the moment, their currently available satellites can already be included in multi-constellation GNSS positioning. Once more satellites are in orbit, the benefit of multi-constellation GNSS will increase even further.

    In this article, we take a look at the current performance of multi-constellation GNSS positioning in an urban scenario, contrasting it with GPS-only positioning as well as GNSS positioning aided by additional sensors.

    Satellites in orbit

    To characterize multi-constellation GNSS performance, stationary GNSS data has been collected using different receivers in Braunschweig, Germany. GNSS data from GPS, GLONASS, Galileo and BeiDou was recorded over a 14-hour window on November 20, 2015.

    Based on the broadcast ephemeris data and the receiver’s position, the availability of GNSS measurements was calculated for the duration of the campaign. TABLE 1 shows the number of all satellites of the different constellations as well as the minimum and maximum number of available satellites for each system during the recording period down to an elevation angle of 0°.

    Table 1. Number of satellites in orbit and in view during a 14-hour window.
    Table 1. Number of satellites in orbit and in view during a 14-hour window.

    FIGURE 1 shows the satellite availability for the measurement campaign. To obtain a position fix using a single GNSS constellation, range measurements to at least four satellites of this constellation must be acquired. Thus, assuming optimal reception of GNSS signals, single-constellation positioning was possible for the full observing window using only GPS, only GLONASS and only BeiDou satellites. On the other hand, Galileo-only position fixes were not possible at any time due to the low number of simultaneously visible satellites.

    FIGURE 1. Satellites in view from Braunschweig, Germany.
    FIGURE 1. Satellites in view from Braunschweig, Germany.

    However, combining measurements from different GNSS constellations in parallel — multi-constellation GNSS — provides the most benefit.

    Multi-Constellation GNSS

    All major GNSS constellations operate independently and use different reference frames for position and time. To combine measurements of different GNSS constellations, the correct handling of the diverse reference frames needs to be ensured.

    On the one hand, the different coordinate systems have to be taken into account. However, the differences between the position frames is usually kept to within a few centimeters and can thus be neglected for most standalone-GNSS applications.

    On the other hand, the handling of the different system time scales requires a specific approach. Even though the inter-system biases (that is, the differences between the system time scales) are usually kept within a few nanoseconds, the influence of the inter-system offsets must not be ignored for most applications and have to be taken into account for a combined position solution.

    The most common approach is to extend the estimated state vector with a distinct clock error for each used constellation. For a combined position solution incorporating GPS, GLONASS, Galileo and BeiDou, the state vector used for the least-squares estimation could look like this:

    Inn-E1.  (1)

    Each pseudorange measurement only contributes to its respective clock-error component.

    Of course, as the values of more unknown variables have to be estimated, the number of necessary GNSS measurements increases, too. To calculate a combined position solution including GPS, GLONASS, Galileo and BeiDou for the above-mentioned example, seven variables must be estimated. This means that at least seven independent GNSS measurements are necessary at each epoch. However, if no satellite of a specific constellation is available, the state vector can also be adapted to not estimate the corresponding clock error. In this way, the availability of a multi-constellation GNSS solution is always higher or, in the worst case, equal to that of the single-constellation GNSS solutions.

    By being able to use more than just one GNSS constellation, the geometric distribution of the satellites over the sky is improved, resulting in a lower dilution of precision (DOP). A lower DOP value usually indicates a better mapping of range measurement precision into the position precision. However, as the different GNSS constellations are currently in different states of maturity, the range precision varies significantly. Thus, a multi-constellation position solution is not necessarily more accurate than a single-constellation solution, but will benefit from an improved overall availability and integrity.

    Such a capability is particularly important for safe operations in constrained scenarios like urban canyons, which are a common challenge for automotive applications. Compared to currently prevailing GPS-only positioning, multi-constellation GNSS has the potential to enable safety-of-life services, which will require a high level of integrity in the automotive domain.

    Tight coupling

    To take even greater advantage of multi-GNSS positioning in challenging environments, the combination with additional sensors can improve the overall positioning performance significantly. The Institute of Flight Guidance at the Technische Universität Braunschweig has developed a tightly coupled GPS fusion system, which incorporates measurements of a close-to-market IMU and odometer sensors for reliable urban car positioning.

    This system is capable of using raw data from a reference station receiver to generate differential GNSS corrections. These differential corrections must be free from reference-receiver clock error before they can be used by the tightly coupled system (rover-receiver clock-bias update by pseudorange positioning, rover-receiver clock-drift update by Doppler frequency velocity estimation, and clock-bias prediction by clock drift).

    Inn-E2.  (2)

    As shown in Equation 2, the system calculates the residuals for each pseudorange (PSR) received by the reference receiver based on the well-known reference antenna positionIn-x-ant and the current satellite position as calculated using its broadcast ephemerisIn-xj-sant . While calculating the residuals, it involves the atmospheric effects ε j computed by the Klobuchar ionosphere delay model and a modified Hopfield tropospheric delay model.

    These residuals must be corrected by the satellite clock errors In-dj-sat (also calculated using the broadcast ephemeris). The arithmetic average of the corrected residuals is used as an estimate for the reference receiver clock error (see Equation 3). This approach is sufficient for most applications, but it is also possible to use additional algorithms to estimate the clock error more accurately.

    In-Eq3  .  (3)

    To generate reference receiver clock error-free pseudorange corrections, the residuals are calculated a second time. Only the estimated clock error of the reference receiver is removed in the second set of residuals:

    In-Eq4  .  (4)

    The assumption was made that these residuals correct all satellites, all atmospheric errors and the inter-system time errors.

    With this assumption, the tightly coupled system uses the corrected residuals as pseudorange corrections for the ranges measured by the rover receiver. Using the corrected pseudoranges, the tightly coupled system can estimate the rover receiver’s clock error for positioning:

    In-Eq5  .  (5)

    In this way, the inter-system offsets are eliminated as well. Corrected multi-constellation GNSS measurements can thus be processed by estimating one receiver clock error only.

    Simulation of obstacles

    The performance of satellite navigation is affected directly by the distribution of the useable GNSS satellites over the sky. The more GNSS satellites are spread out over the sky, the lower the DOP value and the better the positioning accuracy. For reference, FIGURE 2 shows a sky plot of unconstrained GNSS with perfect reception of all GNSS satellites during the measurement period of 14 hours. Combining the satellites of all four GNSS core constellations (GPS, GLONASS, Galileo and BeiDou), up to 30 satellites are usable at the same time.

    FIGURE 2. Sky plot of GNSS satellites (GPS, GLONASS, Galileo and BeiDou) at Braunschweig.
    FIGURE 2. Sky plot of GNSS satellites (GPS, GLONASS, Galileo and BeiDou) at Braunschweig.

    Of course, this is an optimized scenario that can only be achieved using high-quality antennas without any obstacles in the vicinity. Many applications, including urban automotive situations, do not have a comparable reception of GNSS data, and will suffer from blocked satellites and multipath reception.

    Therefore, we created a simulation of surrounding obstacles to predict the behavior of GNSS positioning in challenging urban scenarios. In this simulation, all buildings are represented by endless walls with constant height. A satellite is assumed to be invisible if its line of sight crosses the wall.

    To get a first impression of the usability of this approach, we took GNSS measurements in front of the Institute of Flight Guidance in Braunschweig.

    Using this scenario, the same simulation of optimal visibility using ephemeris data has been conducted again. As shown in FIGURE 3, large portions of the sky are blocked by the simulated obstacles.

    FIGURE 3. Sky plot with valid (thick lines) and invalid (thin lines) measurements.
    FIGURE 3. Sky plot with valid (thick lines) and invalid (thin lines) measurements.

    Of course, the blockages also affect the number of visible satellites as shown in FIGURE 4. Instead of 23 to 31 satellites for the unconstrained scenario, only 11 to 18 satellites are now visible.

    FIGURE 4. Comparison of satellite visibility with and without simulated obstacles.
    FIGURE 4. Comparison of satellite visibility with and without simulated obstacles.

    In a following step, we validated the theoretical predictions of the visible GNSS satellites against the reception by a GNSS receiver of the available signals at the simulated position.

    Validation of simulation

    For a validation of the obstacle simulation, data from a high-grade receiver was used for the validation of the simulation. This modern GNSS receiver is able to track signals from all GNSS constellations (GPS, GLONASS, Galileo and BeiDou) on different GNSS frequencies with a data rate of up to 100 Hz. The BeiDou reception, however, was only acquired recently before the recording of the data and unfortunately suffered from bad BeiDou tracking performance.

    The receiver was connected to a multi-frequency antenna. This GNSS antenna was installed at the back of the roof of the research car. A sky plot of the tracked signals is shown in FIGURE 5.

    FIGURE 5. Tracked signals of the high-end receiver.
    FIGURE 5. Tracked signals of the high-end receiver.

    A comparison of the simulated (Figure 3) and the actual (Figure 5) sky plots shows a very good agreement between the simulations and the measurements. There are, however, some spots in the sky plot where the real GNSS receiver is able to track satellites that are behind a building. This can be explained by the reception of signals through the windows of the building. Thus, the signal-quality indication based on the receiver’s signal-to-noise measurements of these spots is quite bad in these situations.

    As described before, we experienced some problems with the BeiDou reception of the high-grade receiver. Thus, we used an additional single-frequency GNSS receiver. This receiver is capable of providing raw L1 GNSS data of two constellations simultaneously and was configured to track GPS and BeiDou satellites. In this way, an additional sky plot showing GPS and BeiDou reception in the same setup could be generated. The visible BeiDou satellites are shown in light blue in FIGURE 6 and are in accordance with the simulated visibility.

    FIGURE 6. Valid signals sky plot of the single-frequency receiver data.
    FIGURE 6. Valid signals sky plot of the single-frequency receiver data.

    In general, the sky plots identify significant differences compared to the simulated ones as even in regions blocked by buildings some satellites can still be tracked. The contour of the building, however, can still be seen in the signal strength plot in FIGURE 7.

    FIGURE 7. Signals strength sky plot of the single-frequency data.
    FIGURE 7. Signals strength sky plot of the single-frequency data.

    This result is an indication that the single-frequency receiver can track some satellites blocked by the buildings using diffracted or reflected signals, but, of course, resulting in worse positioning accuracy.

    It goes without saying that the various receivers we used are designed with contrary goals in mind. High-performance GNSS receivers are optimized to provide accurate position solutions for high-demanding applications. Thus, the receiver attempts to suppress multipath effects as much as possible to obtain precise and accurate position solutions. The single-frequency receiver, on the other hand, is closer to the low-price, high-volume class of receivers for portable devices, and is optimized to provide valid position output even in challenging environmental situations. Thus, the receivers must not be compared directly because they are designed for completely different purposes.

    Simulating urban canyons

    To assess the overall multi-GNSS performance in urban scenarios, we conducted driving tests in the city center of Braunschweig. Driving through city centers is particularly challenging for any positioning algorithm because of various potential sources of errors. Instead of only using suburban commuter roads, the route we chose represents the most challenging situations for the city center. Most of the roads are surrounded by multi-story buildings (typically up to six floors) very close to the driving lanes. This is – especially for European cities – a common and challenging urban scenario for satellite navigation. An example of such a scenario is shown in FIGURE 8.

    FIGURE 8. Dimensions of representative urban scenario.
    FIGURE 8. Dimensions of representative urban scenario.

    To quantify the impact of the limited GNSS availability due to buildings and other obstacles, we simulated a scenario with walls on both sides of the road. With the road running in a north-south direction, we simulated buildings within a distance of 14 meters and a height of 15 meters. The simulated effect on a GNSS receiver in the middle of the street due to blocked satellites in this scenario is shown in FIGURE 9. Satellites with an elevation angle of up to 65° can be obstructed by the buildings.

    FIGURE 9. Sky plot for obstacle simulation of urban canyon.
    FIGURE 9. Sky plot for obstacle simulation of urban canyon.

    In this scenario, more than half of the sky is blocked by buildings, making satellite navigation quite challenging. Additionally, Braunschweig is located at about 52° north latitude and is close to the inclination of most GNSS constellation orbits (GPS 55°, Galileo 56°, BeiDou MEO 55°). Only GLONASS satellites can be seen in the far northern part of the sky from time to time due to their inclination of 65°.

    Using GPS satellites only, fewer than four satellites are available for long periods of time. On the other hand, using a combination of all constellations, up to 14 satellites can be used even for this constraining scenario. Most of the time, at least seven satellites are visible, allowing a multi-constellation GNSS position solution.

    Downtown positioning

    To assess the practical benefit of multi-constellation GNSS in urban scenarios, we conducted a test drive in downtown Braunschweig using our research car. This area is dominated by narrow roads with multi-story buildings on both sides of the road. Using recorded data from different GNSS receivers and other sensors, multiple positioning solutions were obtained by post-processing the recorded data to compare the different positioning performances.

    As a baseline for comparison, a GPS-only position solution was calculated. This result represents the current state-of-the-art navigation systems for most production cars. All valid GPS-only position fixes are shown in FIGURE 10. For large portions of the test drive, no GPS-only position solution was possible because of insufficient GPS measurements.

    FIGURE 10. GPS-only standalone positioning fixes for test drive in Braunschweig.
    FIGURE 10. GPS-only standalone positioning fixes for test drive in Braunschweig.

    To quantify the benefit of multi-constellation GNSS compared to GPS-only, a combined position solution was calculated using the same data as before. There was a significant improvement in the availability compared to the GPS-only position solution.

    However, even when using multiple GNSS constellations, some areas with no valid GNSS fixes still exist. The GNSS availability can be improved further by using differential corrections from a GNSS reference receiver. The correction data is available in the research car using 4G mobile telecommunication links to different service providers. Each provider uses a network of GNSS receivers to calculate differential corrections. However, all commercially available services are currently limited to GPS and GLONASS. Thus, another stationary multi-constellation GNSS reference receiver at the Institute of Flight Guidance generated correction data for the test drives. As the baselines are short in this scenario (not longer than 10 kilometers), no significant spatial decorrelation is expected.

    As the majority of possible inter-system offsets are already eliminated using the differential corrections of identical receiver types, a multi-constellation solution can be calculated here even with as few as four GNSS satellites in view. This is shown in FIGURE 11. In this way, the achieved availability increased again.

    FIGURE 11. Differentially corrected multi-constellation positioning fixes for test drive in Braunschweig.
    FIGURE 11. Differentially corrected multi-constellation positioning fixes for test drive in Braunschweig.

    Finally, using all the information available in the car, a hybrid position solution based on differentially corrected GNSS, inertial navigation and the test vehicle’s odometer has been calculated.

    In sections without any GNSS positioning aiding (marked red in FIGURE 12), the inertial navigation system was used in dead-reckoning mode. As these outages lasted only for short periods of time, the accuracy of the combined position remained usable for the duration of the test. In this way, an accurate position solution could be calculated for the whole test drive using this tightly coupled positioning algorithm.

    FIGURE 12. Tightly coupled positioning trajectory for test drive in Braunschweig.
    FIGURE 12. Tightly coupled positioning trajectory for test drive in Braunschweig.

    With increasing positioning complexity, the computational burden increased as well. For a tightly coupled system integrating the measurements of the different sensors, significantly more calculations must be performed in real time than for current GPS-only standalone positioning. However, even today these computations can be easily made using embedded devices.

    Conclusions and outlook

    For this article, the achievable positioning performance of multi-constellation GNSS has be analyzed with a special emphasis on urban automotive applications. Simulations of constrained environments have been compared with real data and show good agreement. Multi-constellation GNSS outperforms GPS-only positioning, especially in situations where large portions of the sky are blocked by obstacles, because significantly more satellites remain usable. Multi-constellation GNSS has thus the potential to be an important part of future safety-of-life positioning and navigation applications.

    However, a few challenges still exist. Some GNSS constellations have not reached their full operational capabilities as not all satellites are in orbit yet (Galileo and BeiDou). Additionally, the ranging errors of these systems are expected to decrease with improved navigation message accuracy and receiver performance.

    The availability of numerous GNSS constellations results in new requirements for the receivers as well. Even though most manufacturers of GNSS equipment already support the additional systems with some products, the majority of currently used GNSS receivers is limited to one or two constellations, especially in mass-market applications. In addition, the reception quality of the newer systems is not always on the same level as GPS or GLONASS because of the limited experience that manufacturers have with Galileo and BeiDou. This, we hope, will change in the near future.

    Acknowledgments

    This article is based on the paper “Future Automotive GNSS Positioning in Urban Scenarios” presented at The Institute of Navigation 2016 International Technical Meeting, held in Monterey, Calif., Jan. 25–28.

    Manufacturers

    The high-grade receiver used in our tests was a Septentrio AsteRx3. The receiver was connected to a NovAtel GPS-703-GGG antenna. The single-frequency receiver we used was a u-blox LEA-M8T GNSS receiver with firmware version 2.3. Additionally, we used a NovAtel OEM6 multi-GNSS receiver and an Analog Devices ADIS16375BMLZ IMU.


    MARTIN ESCHER holds a Dipl.-Ing. in electrical engineering from the Technische Universität (TU) Braunschweig in Braunschweig, Germany, and has been employed as a research engineer at the Institute of Flight Guidance (IFF) since 2010.

    MIRKO STANISAK is a research assistant and Ph.D. candidate at the IFF of TU Braunschweig. He received his Dipl.-Ing. in mechanical engineering in 2009 and since then has worked on various GNSS-related topics.

    ULF BESTMANN received his Dr.-Ing. in mechanical engineering from the TU Braunschweig in 2010. He is employed at the IFF of TU Braunschweig, where he is head of the navigation department.

    Further Reading

    • Authors’ Conference Paper

    “Future Automotive GNSS Positioning in Urban Scenarios” by M. Escher, M. Stanisak and U. Bestmann in Proceedings of ITM 2016, the 2016 International Technical Meeting of The Institute of Navigation, Monterey, Calif., Jan. 25–28, 2016, pp. 836–845.

    • Multi-Constellation GNSS Measurements

    Precise Point Positioning with Galileo Observables” by R.M. White and R.B. Langley in Proceedings of the 5th International Colloquium on Scientific and Fundamental Aspects of the Galileo Programme, Braunschweig, Germany, Oct. 27–29, 2015.

    “Accuracy and Reliability of Multi-GNSS Real-Time Precise Positioning: GPS, GLONASS, BeiDou, and Galileo” by X. Li, M. Ge, X. Dai, X. Ren, M. Fritsche, J. Wickert and H. Schuh in Journal of Geodesy, Vol. 89, 2015, pp. 607–635, doi: 10.1007/s00190-015-0802-8.

    Getting a Grip on Multi-GNSS: The International GNSS Service MGEX Campaign” by O. Montenbruck, C. Rizos, R. Weber, G. Weber, R. Neilan and U. Hugentobler in GPS World, Vol. 24, No. 7, July 2013, pp. 44–49.

    Precise Positioning with Galileo Prototype Satellites: First Results” by R.B. Langley, S. Banville and P. Steigenberger in GPS World, Vol. 23, No. 9, Sept. 2012, pp. 45–49.

    “Performance Evaluation of Integrated GPS/GIOVE Precise Point Positioning” by W. Cao, A. Hauschild, P. Steigenberger, R.B. Langley, L. Urquhart, M. Santos and O. Montenbruck in Proceedings of ITM 2010, the 2010 International Technical Meeting of The Institute of Navigation, San Diego, Calif., Jan. 25–27, 2010, pp. 540–552.

    The Future Is Now: GPS + GNSS + SBAS = GNSS” by L. Wanninger in GPS World, Vol. 19, No. 7, July 2008, pp. 42–48.

    • Tightly-Coupled GPS Fusion System

    “A GPS/Galileo Tightly-Coupled Localization System for Safety-Relevant Automotive Assistance Systems” by H.-G. Büsing, M. Escher, T. Scheide and P. Hecker in Proceedings of ION GNSS 2011, the 24th International Technical Meeting of the Satellite Division of The Institute of Navigation, Portland, Ore., Sept. 19–23, 2011, pp. 356–362.

    • Geometry Effects on GNSS Positioning

    Dilution of Precision” by R.B. Langley in GPS World, Vol. 10, No. 5, May 1999, pp. 52–59.

  • GM, Volkswagen to use Mobileye auto mapping technology

    Mobileye, a developer of vision and data analysis for Advanced Driver Assistance Systems (ADAS) and autonomous driving, has introduced a new mapping technology development called Road Experience Management (REM).

    REM enables crowd-sourced real-time data for precise localization and high-definition lane data that forms an important layer of information to support fully autonomous driving.

    Mobileye is engaged with General Motors to integrate REM into existing program launches in an expedited timeframe, as part of GM’s heightened partnership with Mobileye. In addition, on Jan. 5, Mobileye signed a Memorandum of Understanding with Volkswagen and announced a strategic partnership to explore and integrate REM into Volkswagen’s fleet.

    The technology is based on software running on Mobileye’s EyeQ processing platforms that extracts landmarks and roadway information at extremely low bandwidths, approximately 10 kb per kilometer of driving. Additionally, backend software running on the cloud integrates the segments of data sent by all vehicles with the on-board software into a global map.

    “We leveraged advanced artificial intelligence, used for creating environmental models from camera input, in order to create maps based on local coordinate systems while requiring very low bandwidth,” said Prof. Amnon Shashua, co-founder, chairman and Chief Technology Officer of Mobileye. “The low bandwidth of the model, and the fact that it requires only a camera, which is already available in most new car models as part of the trend towards growing driver assistance deployment, enables the map creation and update to be managed by a cooperative crowd sourcing mechanism.”

    A third OEM customer of comparable size is expected to be announced later this year.

    Shashua discussed the future of autonomous driving and road mapping at the Consumer Electronics Show in Las Vegas in January.

  • June Webinar to Focus on Autonomous Driving

    Autonomous vehicles — and the technology that will make them possible — are the focus of the June GPS World Market Insights Webinar. The Road to Driverless: Autonomous Vehicle Platforms, Sensors and Requirements will be held Thursday, June 18, at 1 p.m. EDT/10 a.m. PDT. Registration is free.

    Advanced driver-assistance systems (ADAS) are now integrated in all luxury cars and moving into mainstream models. Governments are getting involved to prevent accidents and minimize the related economic impacts with them. Manufacturers are not far behind; every one of them wishes to be seen as a technology master. Most car and truck companies are working actively on qualifying fully driverless technology today. The military also has a high interest in this area, and has developed autonomous convoy capability for large trucks and supply vehicles.

    Although no driverless car is expected to operate freely on public roads for the next 10 years, some open test drives have already taken place, including one 100-mile highway cruise by a driverless Mercedes. This technology is restrained by legal issues and the lack of reliable nationwide mapping data — but the platforms are nearly ready to go.

    Join us as we explore the current state of affairs and the likely near-term future developments.

    Speakers:

    John Fischer, Chief Technology Officer, Spectracom
    Fischer has more than 30 years experience creating navigation and communications systems, received his Masters in electrical engineering from SUNY at Buffalo and has worked in radar, command and control, and wireless systems prior to joining Spectracom. To learn more, visit www.spectracom.com.

    Lisa Perdue, Applications Engineer, Spectracom
    Perdue is an applications engineer at Spectracom and a specialist in GNSS simulation. She has more than 15 years of navigation and RF systems experience, including 10 years of Naval Service.

    Topics:

    • Accurate positioning of ADAS vehicles on the test track using similar methods as used in military UAVs – John Fischer
    • GNSS and Hybrid Navigation Testing Issues for ADAS and Driverless Cars – Lisa Perdue
    • Realtime Testing Issues for V2V and V2X for ADAS and Driverless Cars – John Fischer

    Register today. The webinar is sponsored by NavCom.



  • Expert Advice: Sensor Fusion for Highly Automated Driving

    High-Precision GNSS Needs Help for Continuous Localization Reliability

    By Siamak Akhlaghi

    Automotive safety and comfort functions, known as Advanced Driver Assistance Systems (ADAS), have become an essential part of modern vehicles. These functions assist drivers in the driving process, providing capabilities such as adaptive cruise control or highway driving mode. To achieve a desired level of performance, the position of the vehicle must be known. Precise positioning supports the vehicle’s systems with planning, executing and monitoring of a particular maneuver.

    Position determination, or localization, is the estimation of the location, heading, velocity and acceleration of a vehicle with respect to a fixed coordinate system. High-precision GNSS provides an excellent, worldwide, absolute position reference for localization. However, GNSS technology alone has limitations that must be overcome to make it suitable for use in autonomous systems. For instance, GNSS signals may become blocked or lost due to: obstructions such as in urban canyon or tunnels; multipath, where signals are reflected off the vehicle body; or signal interference from other RF signal sources.

    Siamak Akhlaghi
    Siamak Akhlaghi

    GNSS correction data and data from other sensors on the vehicle can be used to improve the accuracy and reliability of the vehicle localization solution both globally and with respect to the local environment. To achieve the localization performance, accuracy and integrity required for autonomous vehicles, a multi-system, sensor fusion approach seems to be the most promising. Localization systems will require absolute positioning references like precision GNSS as well as local or relative positioning inputs from inertial sensors, odometers, radar, LiDAR, cameras, infrared and ultrasound sensors. It is clear that no single technology will make highly automated driving possible. Rather, the fusion of the entire vehicle’s sensing technologies will provide the localization accuracy and reliability required.

    Achieving Accuracy and Reliability with GNSS

    GNSS has revolutionized localization in many applications, from precision survey to agricultural guidance. For autonomous driving applications, localization accuracy of 30 centimeters (cm) or less is required. The single-frequency, auto-grade GNSS receivers that have been used in vehicles up to now cannot achieve this level of accuracy. Multi-frequency GNSS receivers utilizing Precise Point Positioning (PPP) correction techniques can achieve accuracies better than 10 cm. PPP algorithms combine GNSS satellite clock and orbit correction data from a global reference station network with high precision GNSS receiver satellite observations to yield robust sub-decimeter positioning without the need for local base stations. Since the PPP corrections can be delivered via satellite, the solution is ideal for highly automated driving where communications infrastructure is costly and in some areas may not be available. Recent advances in PPP techniques provide robust positioning and the ability to quickly regain full accuracy following a temporary loss of GNSS signals, for instance under foliage or highway overpasses.

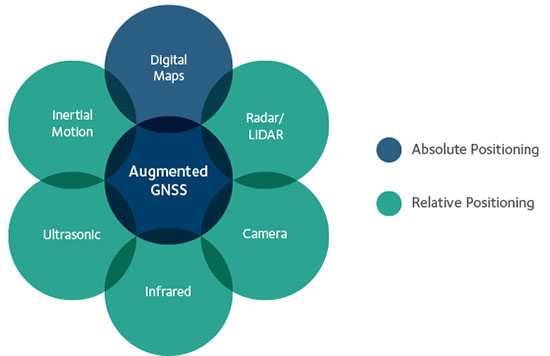

    Figure 1. High precision / localization with sensor fusion.
    Figure 1. High-precision / localization with sensor fusion.

    Sensor Fusion

    Occasional instantaneous irregularities and temporary outages of GNSS can be compensated for by incorporating measurements of the vehicle motion from inertial sensors mounted in the vehicle. An advantage of a tightly coupled GNSS-inertial solution is that the low frequency errors inherent to inertial sensors can be compensated for and removed from the solution. As a result, sensor fusion algorithms provide a highly robust and stable localization solution at data rates as high as 200 Hz. Other sensors in the vehicle, such as odometers, cameras or LiDAR, can also give information about the relative motion of the vehicle and can add to the redundancy, reliability and stability of the localization solution.

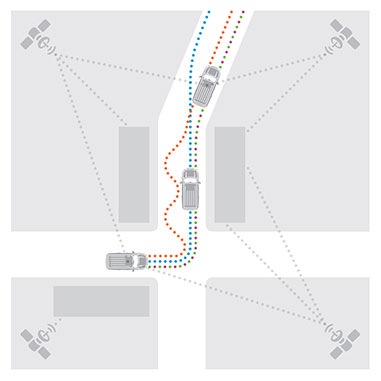

    Figure 2. With a tightly coupled GNSS-inertial solution, low-frequency errors can be removed from the localization solution. The brown dots are the GNSS solution, the blue dots are the inertial solution, and the combined colors represent the tightly coupled solution.
    Figure 2. With a tightly coupled GNSS-inertial solution, low-frequency errors can be removed from the localization solution. The brown dots are the GNSS solution, the blue dots are the inertial solution, and the combined colors represent the tightly coupled solution.

    High-Precision GNSS Antenna

    Antennas play a critical role in achieving precise localization with GNSS. While GNSS antenna requirements differ depending on the application, ideally the antenna should receive only signals above the horizon, have a known and stable phase center that is co-located with the geometrical center of the antenna, and have perfect circular polarization characteristics to maximize the reception of the incoming signals. Highly automated driving applications demand high performance as well as compact size and strong interference rejection. Achieving the required performance amidst these challenging constraints will require innovative new GNSS antenna designs.

    Autonomous driving will be a reality in the not-too-distant future. Innovation in the suite of sensors and fusion algorithms used for solving the localization challenge will be paramount to making safe and reliable autonomous vehicles. Further, innovation developed for automotive autonomy will support new autonomous vehicle applications in other segments.

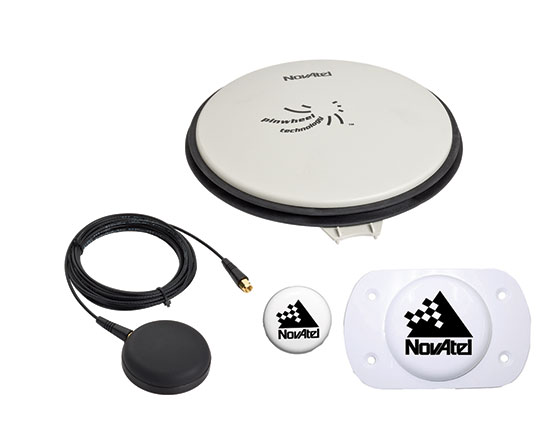

    High-precision antennas are key.
    High-precision antennas are key.

    Siamak Akhlaghi is segment manager for Autonomous Systems at NovAtel. He has 20 years of professional experience working for high-tech sectors with broad experience in inertial sensors and navigation systems.

  • MWC 2015: Geotab Offers Add-On Extender for All-Vehicle Support

    Geotab, a telematics engineering company, has released its IOX-CAN extender, a plug-and-play solution that allows partners to send data from their device over a private CAN network in the vehicle, supporting integrations on all vehicle types.

    Geotab is exhibiting at Mobile World Congress 2015, at Hall 3, Stand 3J20.

    According to Geotab, Fortune 500 companies, including 40 percent of the top ten fleets and 18 percent of the top 100 fleets in North America, rely on Geotab’s solutions to improve productivity, optimize fleets through the reduction of fuel consumption, enhance driver safety, and achieve stronger compliance to regulatory changes.

    A number of companies are already leveraging the IOX-CAN extender to send data from their devices to the MyGeotab system. Geotab’s integration with Mobileye, a technology company that develops vision-based Advanced Driver Assistance Systems (ADAS) providing warnings for collision prevention and mitigation, has been upgraded with the IOX-CAN extender allowing full support for all vehicle types, including OBDII (on-board diagnostics II) vehicles.

    Geotab’s new add-on solution allows Mobileye devices to plug into Geotab’s GO6 and GO7 devices, allowing Mobileye data to be sent to the MyGeotab software platform, where it can be viewed and analyzed by dispatchers and fleet managers.

    “Our solutions are designed to make the roads safer for everyone as the issue of distracted driving continues to be a problem,” said Elad Serfaty, vice president and general manager of Mobileye Aftermarket. “Working with Geotab allows us to not only provide feedback to the driver, and with managers who can effect change where needed, but we can do this across all vehicle types.”

    “Expanding our integration capabilities and continuing our work with Mobileye is a natural evolution as more and more companies realize the benefits of fleet management,” said Neil Cawse, CEO, Geotab. “Providing collision warnings to drivers just before a crash is the first step to creating a safer driving environment for everyone.”

  • Cohda Wireless, u-blox Develop System to Warn Drivers of Danger

    u-blox has provided global positioning technology to Cohda Wireless‘ vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) equipment, collectively called V2X. V2X will be a key technology for the next generation of advanced driver assistance systems (ADAS) as well as autonomous vehicles, the companies said.

    Cohda’s DSRC (dedicated short-range communications) based V2X system uses accurate satellite positioning with embedded dead-reckoning technology provided by u-blox. The system enables early warning of imminent collisions, oncoming traffic, the presence of road workers and unsafe speed based on vehicles in the vicinity.

    “Cohda’s V2X DSRC-based solutions make full use of u-blox’ advanced automotive-grade positioning technology to enhance driver safety through ample warning time and excellent non-line-of-sight performance. Such technology will soon be a standard feature embedded in all vehicles,” said Michael Ammann, VP platform partnerships at u‑blox.

    “Our V2X vehicle warning systems are dependent on highly accurate position and velocity data to deliver the performance that is crucial to meet the safety demands of next generation cars,” said Fabien Cure, Chief Engineer at Cohda Wireless. “u-blox’ satellite positioning solutions, leading automotive dead reckoning technology, module roadmap and clear strategy to deliver lane accurate performance in challenging urban environments was convincing.”

  • Volvo and Mercedes-Benz Driving Roll Out of ADAS as Standard Equipment in Cars

    ABI Research forecasts that the global market for Driver Monitoring Systems (DMS) will reach 64.8 million units by the end of 2020 with the majority of shipments being accounted for in vehicles sold in the Asia-Pacific region. These findings are part of ABI Research’s Intelligent Transportation Systems Research Service and includes detailed installed base and forecasts of ADAS systems [‪advanced driver assistance systems‬] by regions.

    Driver Monitoring Systems were first introduced as far back as 2006 when Toyota launched its innovative Driver Attention Monitor system. Toyota’s system functions by directly monitoring the driver’s face using a discrete in-dash camera and was initially offered as an option in the company’s luxury Lexus models. Other OEMs soon followed suit and announced their own DMS systems which were typically based on monitoring the vehicle rather than the driver’s face.

    “DMS systems such as Mercedes-Benz’s ’Attention Assist’ and Volvo and Volkswagen’s ’Driver Alert’ systems were the first ADAS systems to be offered as standard equipment by OEMs, albeit only in a small selection of models,” comments Gareth Owen, principal analyst at ABI Research.

    Today, an increasing number of ADAS systems are gradually becoming standard equipment in new cars, particularly in some European and Japanese brands such as Volvo, Mercedes-Benz, Nissan Infiniti, Lexus, and Mazda, and more are being offered as options. Although some of the big U.S. brands offer ADAS features in their European models, they typically do not offer the same features in their U.S. models, although this is beginning to change. Ford is a good example of this with its Ford Focus model.

    “Another very observable trend in 2013 is that ADAS features are migrating from the luxury brands into B, C, and even A segment cars. Typically, the focus here is on offering ADAS systems, mostly as options, designed specifically for low-speed urban driving,” adds Owen.

    Prices are decreasing, too. For example, the European Ford Focus offers an emergency braking system plus lane departure warning and lane-keep assist, driver alert, and blind spot monitoring as an optional package for £550 ($880) in the UK. Meanwhile, Volkswagen offers its City Emergency Braking System for £225-£405 ($360-$648), depending on model, on its budget A segment Up! car. This uses a laser sensor to detect the risk of an imminent collision and is active at speeds under 30 km/hr (18 mph).
