The collaborative solution will be launched commercially later in 2013, and was previewed at ION GNSS+ in September in Nashville, Tennessee.

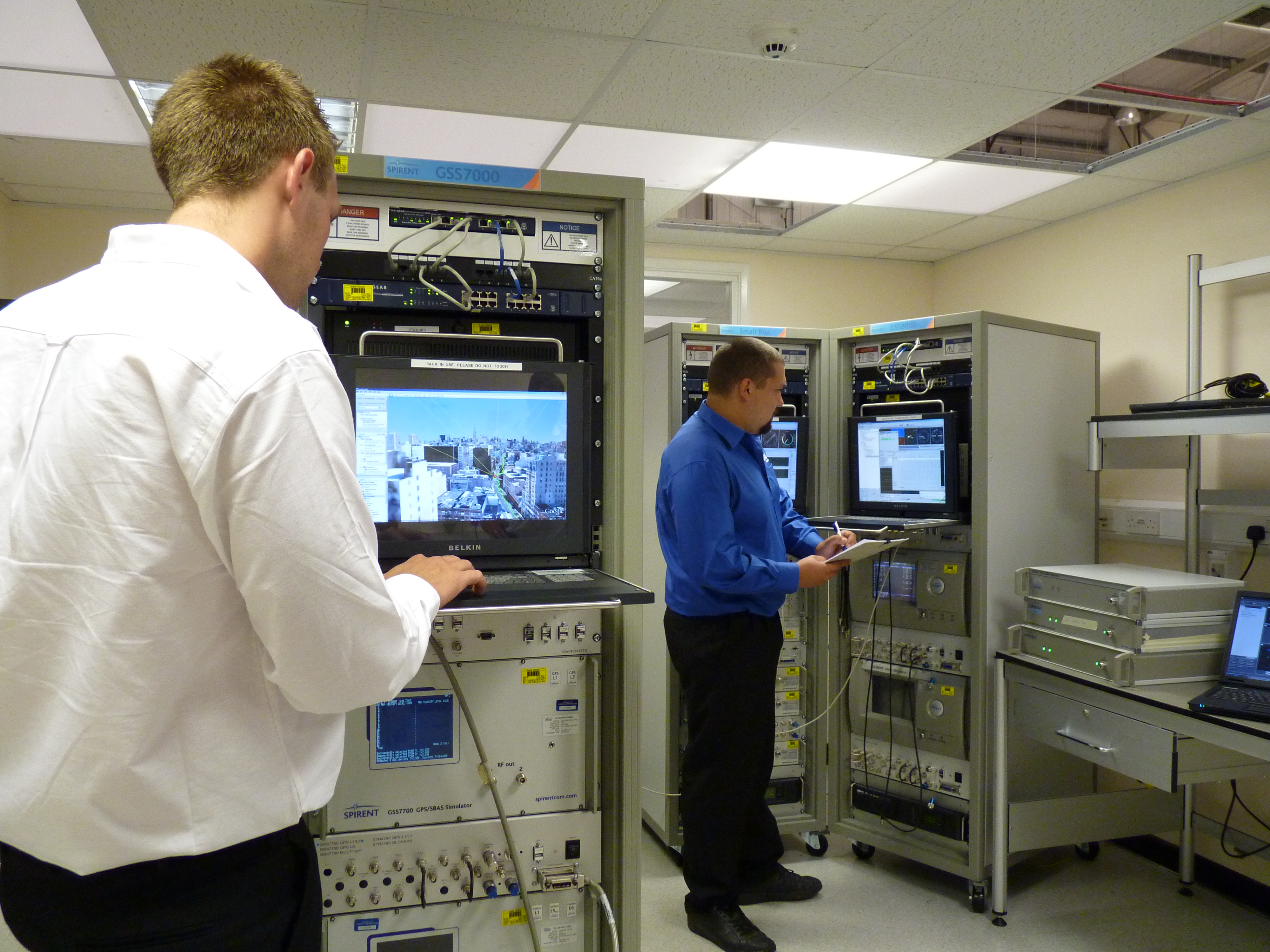

The test bed will concurrently simulate legitimate GNSS constellations and spoofed or hoax signals. It will enable positioning systems manufacturers to improve their products’ resilience to hoax signals.
As GNSS becomes increasingly embedded in modern infrastructure for application timing and device positioning, the impact of spoofing attacks becomes greater. From mobile telephony to Internet banking, GNSS timing signals are used in many key systems, and yet there is no requirement on GNSS equipment to demonstrate any degree of robustness to block or even detect malicious attacks that disrupt performance.
“There is growing industry concern about the vulnerability of satellite navigation signals,” said John Pottle, Marketing Director of Spirent’s Positioning Division. “This will help the industry to create positioning systems that are more resilient to interference.”
Hoax or spoofing attacks work by mimicking genuine GNSS signals, which mislead GNSS receivers. Often affected receivers do not recognize when they are receiving fake signals and continue to operate normally, but provide false time or position information. This new test tool helps to develop systems that will detect and counter spoofing attacks by providing a fully controllable laboratory based, non-radiated test solution to evaluate a receiver’s response to a range of spoofing attacks. The test tool controls the emulation of signals representing both the genuine GNSS signals and the false signals. This allows users to simulate a wide range of sophisticated attacks and monitor the response of the receiver under attack to then improve the resilience of the design against such attacks.
For more information on threat detection and mitigation testing visit Spirent Booth #F during ION GNSS+, September 15-20 in Nashville, Tennessee.
GPS Source announced today that GLI-FLO has been granted security approval by the U.S. Air Force Global Positioning Systems Directorate. The GPS Directorate security approval provides GPS Source with the opportunity to supply military end-users and prime contractors with a DAGR Distributed Device (D3) that meets the mandate for reliability and security, GPS Source said.
GLI-FLO is a secure (ICD-GPS-153 compliant) GPS position, navigation, and timing (PNT) distribution device. One GLI-FLO has the same capability as four DAGRs operating in a platform mounted application (eight DAGRs with custom cabling). GLI-FLO serves ICD-GPS-153 PNT data simultaneously to multiple communication or weapon systems that require GPS information. It routes PNT data while secured in the bracket now used by the DAGR, utilizing standard DAGR accessory cables. When GLI-FLO is connected to one DAGR (or as alternative option, interfaces with an internal secure GPS receiver), secure PNT data can be distributed without the integration of GB-GRAM cards to multiple devices.
GLI-FLO meets the stringent requirements for reliability and security by integrating a GPS Directorate-approved SAASM receiver (Selective Availability/Anti-Spoofing Module). SAASM is the security architecture selected by the Joint Chiefs of Staff (JCS) to provide current security functions for GPS-authorized military users.
“We understand the importance of reliable GPS/PNT data for synchronizing military operations and the need to protect against jamming and/or spoofing,” said Robert Horton, CEO of GPS Source. “We further realize the importance of protecting our national assets by designing products that fully comply with all GPS Directorate security requirements. This security approval makes it possible for our GLI-FLO to be deployed by military forces without reservation.”
In addition to the SAASM compliance, other GLI-FLO features include the ability to serve ICD-GPS-153 PNT data simultaneously to multiple communications or weapon systems that require secure GPS information. It is a significant step for GPS Source toward compliance in GPS Signal Distribution (Single PNT Distribution Point). With zero impact to subscriber application software/hardware, it removes the need to rely on multiple, expensive GB-GRAMS found in military platforms.
Correlating Carrier Phase with Rapid Antenna Motion
By Mark L. Psiaki with Steven P. Powell and Brady W. O’Hanlon
INNOVATION INSIGHTS by Richard Langley
IT’S A HOSTILE (ELECTRONIC) WORLD OUT THERE, PEOPLE. Our wired and radio-based communication systems are constantly under attack from evil doers. We are all familiar with computer viruses and worms hiding in malicious software or malware distributed over the Internet or by infected USB flash drives. Trojan horses are particularly insidious. These are programs concealing harmful code that can lead to many undesirable effects such as deleting a user’s files or installing additional harmful software. Such programs pass themselves off as benign, just like the “gift” the Greeks delivered to the Trojans as reported in Virgil’s Aeneid. This was a very early example of spoofing. Spoofing of Internet Protocol (IP) datagrams is particularly prevalent. They contain forged source IP addresses with the purpose of concealing the identity of the sender or impersonating another computing system.
To spoof someone or something is to deceive or hoax, passing off a deliberately fabricated falsehood made to masquerade as truth. The word “spoof” was introduced by the English stage comedian Arthur Roberts in the late 19th century. He invented a game of that name, which involved trickery and nonsense. Now, the most common use of the word is as a synonym for parody or satirize — rather benign actions. But it is the malicious use of spoofing that concerns users of electronic communications.
And it is not just wired communications that are susceptible to spoofing. Communications and other services using radio waves are, in principle, also spoofable. One of the first uses of radio-signal spoofing was in World War I when British naval shore stations sent transmissions using German ship call signs. In World War II, spoofing became an established military tactic and was extended to radar and navigation signals. For example, German bomber aircraft navigated using radio signals transmitted from ground stations in occupied Europe, which the British spoofed by transmitting similar signals on the same frequencies. They coined the term “meaconing” for the interception and rebroadcast of navigation signals (meacon = m(islead)+(b)eacon).
Fast forward to today. GPS and other GNSS are also susceptible to meaconing. From the outset, the GPS P code, intended for use by military and other so-called authorized users, was designed to be encrypted to prevent straightforward spoofing. The anti-spoofing is implemented using a secret “W” encryption code, resulting in the P(Y) code. The C/A code and the newer L2C and L5 codes do not have such protection; nor, for the most part, do the civil codes of other GNSS. But, it turns out, even the P(Y) code is not fully protected from sophisticated meaconing attacks.
So, is there anything that military or civil GNSS users can do, then, to guard against their receivers being spoofed by sophisticated false signals? In this month’s column, we take a look at a novel, yet relatively easily implemented technique that enables users to detect and sequester spoofed signals. It just might help make it a safer world for GNSS positioning, navigation, and timing.
“Innovation” is a regular feature that discusses advances in GPS technology andits applications as well as the fundamentals of GPS positioning. The column is coordinated by Richard Langley of the Department of Geodesy and Geomatics Engineering, University of New Brunswick. He welcomes comments and topic ideas. To contact him, see the “Contributing Editors” section on page 4.
The radionavigation community has known about the dangers of GNSS spoofing for a long time, as highlighted in the 2001 Volpe Report (see Further Reading). Traditional receiver autonomous integrity monitoring (RAIM) had been considered a good spoofing defense. It assumes a dumb spoofer whose false signal produces a random pseudorange and large navigation solution residuals. The large errors are easy to detect, and given enough authentic signals, the spoofed signal(s) can be identified and ignored.
That spoofing model became obsolete at The Institute of Navigation’s GNSS 2008 meeting. Dr. Todd Humphreys introduced a new receiver/spoofer that could simultaneously spoof all signals in a self-consistent way undetectable to standard RAIM techniques. Furthermore, it could use its GNSS reception capabilities and its known geometry relative to the victim to overlay the false signals initially on top of the true ones. Slowly it could capture the receiver tracking loops by raising the spoofer power to be slightly larger than that of the true signals, and then it could drag the victim receiver off to false, but believable, estimates of its position, time, or both.
Two of the authors of this article contributed to Humphreys’ initial developments. There was no intention to help bad actors deceive GNSS user equipment (UE). Rather, our goal was to field a formidable “Red Team” as part of a “Red Team/Blue Team” (foe/friend) strategy for developing advanced “Blue Team” spoofing defenses.
This seemed like a fun academic game until mid-December 2011, when news broke that the Iranians had captured a highly classified Central Intelligence Agency drone, a stealth Lockheed Martin RQ-170 Sentinel, purportedly by spoofing its GPS equipment. Given our work in spoofing and detection, this event caused quite a stir in our Cornell University research group, in Humphreys’ University of Texas at Austin group, and in other places. The editor of this column even got involved in our extensive e-mail correspondence. Two key questions were: Wouldn’t a classified spy drone be equipped with a Selective Availability Anti-Spoofing Module (SAASM) receiver and, therefore, not be spoofable? Isn’t it difficult to knit together a whole sequence of false GPS position fixes that will guide a drone to land in a wrong location? These issues, when coupled with apparent inconsistencies in the Iranians’ story and visible damage to the drone, led us to discount the spoofing claim.
Developing a New Spoofing Defense
My views about the Iranian claims changed abruptly in mid-April 2012. Todd Humphreys phoned me about an upcoming test of GPS jammers, slated for June 2012 at White Sands Missile Range (WSMR), New Mexico. The Department of Homeland Security (DHS) had already spent months arranging these tests, but Todd revealed something new in that call: He had convinced the DHS to include a spoofing test that would use his latest “Red Team” device. The goal would be to induce a small GPS-guided unmanned aerial vehicle (UAV), in this case a helicopter, to land when it was trying to hover. “Wow”, I thought. “This will be a mini-replication of what the Iranians claimed to have done to our spy drone, and I’m sure that Todd will pull it off. I want to be there and see it.” Cornell already had plans to attend to test jammer tracking and geolocation, but we would have to come a day early to see the spoofing “fun” — if we could get permission from U.S. Air Force 746th Test Squadron personnel at White Sands.
The implications of the UAV test bounced around in my head that evening and the next morning on my seven-mile bike commute to work. During that ride, I thought of a scenario in which the Iranians might have mounted a meaconing attack against a SAASM-equipped drone. That is, they might possibly have received and re-broadcast the wide-band P(Y) code in a clever way that could have nudged the drone off course and into a relatively soft landing on Iranian territory.
In almost the next moment, I conceived a defense against such an attack. It involves small antenna motions at a high frequency, the measurement of corresponding carrier-phase oscillations, and the evaluation of whether the motions and phase oscillations are more consistent with spoofed signals or true signals. This approach would yield a good defense for civilian and military receivers against both spoofing and meaconing attacks. The remainder of this article describes this defense and our efforts to develop and test it.
It is one thing to conceive an idea, maybe a good idea. It is quite another thing to bring it to fruition. This idea seemed good enough and important enough to “birth” the conception. The needed follow-up efforts included two parts, one theoretical and the other experimental.
The theoretical work involved the development of signal models, hypothesis tests, analyses, and software. It culminated in analysis and truth-model simulation results, which showed that the system could be very practical, using only centimeters of motion and a fraction of a second of data to reliably differentiate between spoofing attacks and normal GNSS operation.
Theories and analyses can contain fundamental errors, or overlooked real-world effects can swamp the main theoretical effect. Therefore, an experimental prototype was quickly conceived, developed, and tested. It consisted of a very simple antenna-motion system, an RF data-recording device, and after-the-fact signal processing. The signal processing used Matlab to perform the spoofing detection calculations after using a C-language software radio to perform standard GPS acquisition and tracking.
Tests of the non-spoofed case could be conducted anywhere outdoors. Our initial tests occurred on a Cornell rooftop in Ithaca, New York. Tests of the spoofed case are harder. One cannot transmit live spoofing signals except with special permission at special times and in special places, for example, at WSMR in the upcoming June tests. Fortunately, the important geometric properties of spoofed signals can be simulated by using GPS signal reception at an outdoor antenna and re-radiation in an anechoic chamber from a single antenna. Such a system was made available to us by the NASA facility at Wallops Island, Virginia, and our simulated spoofed-case testing occurred in late April of last year. All of our data were processed before mid-May, and they provided experimental confirmation of our system’s efficacy. The final results were available exactly three busy weeks after the initial conception.
Although we were convinced about our new system, we felt that the wider GNSS community would like to see successful tests against live-signal attacks by a real spoofer. Therefore, we wanted very much to bring our system to WSMR for the June 2012 spoofing attack on the drone. We could set up our system near the drone so that it would be subject to the same malicious signals, but without the need to mount our clumsy prototype on a compact UAV helicopter. We were concerned, however, about the possibility of revealing our technology before we had been able to apply for patent protection. After some hesitation and discussions with our licensing and technology experts, we decided to bring our system to the WSMR test, but with a physical cover to keep it secret. The cover consisted of a large cardboard box, large enough to accommodate the needed antenna motions. The WSMR data were successfully collected using this method. Post-processing of the data demonstrated very reliable differentiation between spoofed and non-spoofed cases under live-signal conditions, as will be described in subsequent sections of this article.
System Architecture and Prototype
The components and geometry of one possible version of this system are shown in FIGURE 1. The figure shows three of the GNSS satellites whose signals would be tracked in the non-spoofed case: satellites j-1, j, and j+1. It also shows the potential location of a spoofer that could send false versions of the signals from these same satellites. The spoofer has a single transmission antenna. Satellites j-1, j, and j+1 are visible to the receiver antenna, but the spoofer could “hijack” the receiver’s tracking loops for these signals so that only the false spoofed versions of these signals would be tracked by the receiver.
Figure 1. Spoofing detection antenna articulation system geometry relative to base mount, GNSS satellites, and potential spoofer. Photo: Mark L. Psiaki with Steven P. Powell and Brady W. O’Hanlon
The receiver antenna mount enables its phase center to be moved with respect to the mounting base. In Figure 1, this motion system is depicted as an open kinematic chain consisting of three links with ball joints. This is just one example of how a system can be configured to allow antenna motion. Spoofing detection can work well with just one translational degree of freedom, such as a piston-like up-and-down motion that could be provided by a solenoid operating along the za articulation axis. It would be wise to cover the motion system with an optically opaque radome, if possible, to prevent a spoofer from defeating this system by sensing the high-frequency antenna motions and spoofing their effects on carrier phase.
Suppose that the antenna articulation time history in its local body-fixed (xa, ya, za) coordinate system is ba(t). Then the received carrier phases are sensitive to the projections of this motion onto the line-of-sight (LOS) directions of the received signals. These projections are along , , and in the non-spoofed case, with being the known unit direction vector from the jth GNSS satellite to the nominal antenna location. In the spoofed case, the projections are all along , regardless of which signal is being spoofed, with being the unknown unit direction vector from the spoofer to the victim antenna. Thus, there will be differences between the carrier-phase responses of the different satellites in the non-spoofed case, but these differences will vanish in the spoofed case. This distinction lies at the heart of the new spoofing detection method. Given that a good GNSS receiver can easily distinguish quarter-cycle carrier-phase variations, it is expected that this system will be able to detect spoofing using antenna motions as small as 4.8 centimeters, that is, a quarter wavelength of the GPS L1 signal.
The UE receiver and spoofing detection block in Figure 1 consists of a standard GNSS receiver, a means of inputting the antenna motion sensor data, and additional signal processing downstream of the standard GNSS receiver operations. The latter algorithms use as inputs the beat carrier-phase measurements from a standard phase-locked loop (PLL).
It may be necessary to articulate the antenna at a frequency nearly equal to the bandwidth of the PLL (say, at 1 Hz or higher). In this case, special post-processing calculations might be required to reconstruct the high-frequency phase variations accurately before they can be used to detect spoofing. The needed post-processing uses the in-phase and quadrature accumulations of a phase discriminator to reconstruct the noisy phase differences between the true signal and the PLL numerically controlled oscillator (NCO) signal. These differences are added to the NCO phases to yield the full high-bandwidth variations.
We implemented the first prototype of this system with one-dimensional antenna motion by mounting its patch antenna on a cantilevered beam. It is shown in FIGURE 2. Motion is initiated by pulling on the string shown in the upper left-hand part of the figure. Release of the string gives rise to decaying sinusoidal oscillations that have a frequency of about 2 Hz.
Figure 2. Antenna articulation system for first prototype spoofing detector tests: a cantilevered beam that allows single-degree-of-freedom antenna phase-center vibration along a horizontal axis. Photo: Mark L. Psiaki with Steven P. Powell and Brady W. O’Hanlon
The remainder of the prototype system consisted of a commercial-off-the-shelf RF data recording device, off-line software receiver code, and off-line spoofing detection software. The prototype system lacked an antenna motion sensor. We compensated for this omission by implementing additional signal-processing calculations. They included off-line parameter identification of the decaying sinusoidal motions coupled with estimation of the oscillations’ initial amplitude and phase for any given detection.
This spoofing detection system is not the first to propose the use of antenna motion to uncover spoofing, and it is related to techniques that rely on multiple antennas. The present system makes three new contributions to the art of spoofing detection: First, it clearly explains why the measured carrier phases from a rapidly oscillating antenna provide a good means to detect spoofing. Second, it develops a precise spoofing detection hypothesis test for a moving-antenna system. Third, it demonstrates successful spoofing detection against live-signal attacks by a “Humphreys-class” spoofer.
Signal Model Theory and Verification
The spoofing detection test relies on mathematical models of the response of beat carrier phase to antenna motion. Reasonable models for the non-spoofed and spoofed cases are, respectively:
(1a)
(1b)
where is the received (negative) beat carrier phase of the authentic or spoofed satellite-j signal at the kth sample time . The three-by-three direction cosines matrix A is the transformation from the reference system, in which the direction vectors and are defined, to the local body-axis system, in which the antenna motion ba(t) is defined. λ is the nominal carrier wavelength. The terms involving the unknown polynomial coefficients , , and model other low-frequency effects on carrier phase, including satellite motion, UE motion if its antenna articulation system is mounted on a vehicle, and receiver clock drift. The term is the receiver phase noise. It is assumed to be a zero-mean, Gaussian, white-noise process whose variance depends on the receiver carrier-to-noise-density ratio and the sample/accumulation frequency.
If the motion of the antenna is one-dimensional, then ba(t) takes the form , with being the articulation direction in body-axis coordinates and ra(t) being a known scalar antenna deflection amplitude time history. If one defines the articulation direction in reference coordinates as , then the carrier-phase models in Equations (1a) and (1b) become
(2a)
(2b)
There is one important feature of these models for purposes of spoofing detection. In the non-spoofed case, the term that models the effects of antenna motion varies between GPS satellites because the direction vector varies with j. The spoofed case lacks variation between the satellites because the one spoofer direction replaces for all of the spoofed satellites. This becomes clear when one compares the first terms on the right-hand sides of Eqsuations (1a) and (1b) for the 3-D motion case and on the right-hand sides of Equations (2a) and (2b) for the 1-D case.
The carrier-phase time histories in FIGURES 3 and 4 illustrate this principle. These data were collected at WSMR using the prototype antenna motion system of Figure 2. The carrier-phase time histories have been detrended by estimating the , , and coefficients in Equations (2a) and (2b) and subtracting off their effects prior to plotting. In Figure 3, all eight satellite signals exhibit similar decaying sinusoid time histories, but with differing amplitudes and some of them with sign changes. This is exactly what is predicted by the 1-D non-spoofed model in Equation (2a). All seven spoofed signals in Figure 4, however, exhibit identical decaying sinusoidal oscillations because the term in Equation (2b) is the same for all of them.
Figure 3. Detrended carrier-phase data from multiple satellites for a typical non-spoofed case using a 1-D antenna articulation system.
Figure 4. Multiple satellites’ detrended carrier-phase data for a typical spoofed case using a 1-D antenna articulation system.
As an aside, an interesting feature of Figure 3 is its evidence of the workings of the prototype system. The ramping phases of all the signals from t = 0.4 seconds to t = 1.4 seconds correspond to the initial pull on the string shown in Figure 2, and the steady portion from t = 1.4 seconds to t = 2.25 seconds represents a period when the string was held fixed prior to release.
Spoofing Detection Hypothesis Test
A hypothesis test can precisely answer the question of which model best fits the observed data: Does carrier-phase sameness describe the data, as in Figure 4? Then the receiver is being spoofed. Alternatively, is carrier-phase differentness more reasonable, as per Figure 3? Then the signals are trustworthy.
A hypothesis test can be developed for any batch of carrier-phase data that spans a sufficiently rich antenna motion profile ba(t) or ρa(t). The profile must include high-frequency motions that cannot be modeled by the , , and quadratic polynomial terms in Equations (1a)-(2b); otherwise the detection test will lose all of its power. A motion profile equal to one complete period of a sine wave has the needed richness.
Suppose one starts with a data batch that is comprised of carrier-phase time histories for L different GNSS satellites: for samples k = 1, …, Mj and for satellites j = 1,…, L. A standard hypothesis test develops two probability density functions for these data, one conditioned on the null hypothesis of no spoofing, H0, and the other conditioned on the hypothesis of spoofing, H1. The Neyman-Pearson lemma (see Further Reading) proves that the optimal hypothesis test statistic equals the ratio of these two probability densities. Unfortunately, the required probability densities depend on additional unknown quantities. In the 1-D motion case, these unknowns include the , , and coefficients, the dot product , and the direction if one assumes that the UE attitude is unknown. A true Neyman-Pearson test would hypothesize a priori distributions for these unknown quantities and integrate their dependencies out of the two joint probability distributions. Our sub-optimum test optimally estimates relevant unknowns for each hypothesis based on the carrier-phase data, and it uses these estimates in the Neyman-Pearson probability density ratio. Although sub-optimal as a hypothesis test, this approach is usually effective, and it is easier to implement than the integration approach in the present case.
Consider the case of 1-D antenna articulation and unknown UE attitude. Maximum-likelihood calculations optimally estimate the nuisance parameters , , and for j = 1, …, L for both hypotheses along with the unit vector for the non-spoofed hypothesis, or the scalar dot product for the spoofed hypothesis. The estimation calculations for each hypothesis minimize the negative natural logarithm of the corresponding conditional probability density. Because , , and enter the resulting cost functions quadratically, their optimized values can be computed as functions of the other unknowns, and they can be substituted back into the costs. This part of the calculation amounts to a batch high-pass filter of both the antenna motion and the carrier-phase response.
The remaining optimization problems take, under the non-spoofed hypothesis, the form:
find: (3a)
to minimize: (3b)
subject to: (3c)
and, under the spoofed hypothesis, the form:
find: η (4a)
to minimize: (4b)
subject to: . (4c)
The coefficient is a function of the deflections for k = 1, …, Mj, and the non-homogenous term is derived from the jth phase time history for k = 1, …, Mj. These two quantities are calculated during the , , optimization. The constraint in Equation (3c) forces the estimate of the antenna articulation direction to be unit-normalized. The constraint in Eq. (4c) ensures that η is a physically reasonable dot product.
The optimization problems in Equations (3a)-(3c) and (4a)-(4c) can be solved in closed form using techniques from the literature on constrained optimization, linear algebra, and matrix factorization. The optimal estimates of and η can be used to define a spoofing detection statistic that equals the natural logarithm of the Neyman-Pearson ratio:
(5)
It is readily apparent that γ constitutes a reasonable test statistic: If the signal is being spoofed so that carrier-phase sameness is the best model, then ηopt will produce a small value of because the spoofed-case cost function in Equation (4b) is consistent with carrier-phase sameness. The value of , however, will not be small because the plurality of directions in Equation (3b) precludes the possibility that any estimate will yield a small non-spoofed cost. Therefore, γ will tend to be a large negative number in the event of spoofing because >> is likely. In the non-spoofed case, the opposite holds true: will yield a small value of , but no estimate of η will yield a small , and γ will be a large positive number because << .
Therefore, a sensible spoofing detection test employs a detection threshold γth somewhere in the neighborhood of zero. The detection test computes a γ value based on the carrier-phase data, the antenna articulation time history, and the calculations in Equations (3a)-(5). It compares this γ to γth. If γ ≥ γth, then the test indicates that there is no spoofing. If γ < γth, then a spoofing alert is issued.
The exact choice of γth is guided by an analysis of the probability of false alarm. A false alarm occurs if a spoofing attack is declared when there is no spoofing. The false-alarm probability is determined as a function of γth by developing a γ probability density function under the null hypothesis of no spoofing p(γ|H0). The probability of false alarm equals the integral of p(γ|H0) from γ = to γ = γth. This integral relationship can be inverted to determine the γth threshold that yields a given prescribed false-alarm probability
A complication arises because p(γ|H0) depends on unknown parameters, in the case of an unknown UE attitude and 1-D antenna motion. Although sub-optimal, a reasonable way to deal with the dependence of p(γ|,H0) on is to use the worst-case for a given γth. The worst-case articulation direction maximizes the p(γ|,H0) false-alarm integral. It can be calculated by solving an optimization problem. This analysis can be inverted to pick γth so that the worst-case probability of false alarm equals some prescribed value. For most actual values, the probability of false alarm will be lower than the prescribed worst case.
Given γth, the final needed analysis is to determine the probability of missed detection. This analysis uses the probability density function of g under the spoofed hypothesis, p(γ|η,H1). The probability of missed detection is the integral of this function from γ = γth to γ = +. The dependence of p(γ|η,H1) on the unknown dot product η can be handled effectively, though sub-optimally, by determining the worst-case probability of false alarm. This involves an optimization calculation, which finds the worst-case dot product ηwc that maximizes the missed-detection probability integral. Again, most actual η values will yield lower probabilities of missed detection.
Note that the above-described analyses rely on approximations of the probability density functions p(γ|,H0) and p(γ|η,H1). The best approximations include dominant Gaussian terms plus small chi-squared or non-central chi-squared terms. It is difficult to analyze the chi-squared terms rigorously. Their smallness, however, makes the use of Gaussian approximations reasonable.
We have developed and evaluated several alternative formulations of this spoofing detection method. One is the case of full 3-D ba(t) antenna motion with unknown UE attitude. The full direction cosines matrix A is estimated in the modified version of the non-spoofed optimal fit calculations of Equations (3a)-(3c), and the full spoofing direction vector is estimated in the modified version of Equations (4a)-(4c). A different alternative allows the 1-D motion time history ρa(t) to have an unknown amplitude-scaling factor that must be estimated. This might be appropriate for a UAV drone with a wing-tip-mounted antenna if it induced antenna motions by dithering its ailerons. In fixed-based applications, as might be used by a financial institution, a cell-phone tower, or a power-grid monitor, the attitude would be known, which would eliminate the need to estimate or A for the non-spoofed case.
Test Results
The initial tests of our concept involved generation of simulated truth-model carrier-phase data using simulated , , and polynomial coefficients, simulated satellite LOS direction vectors for the non-spoofed cases, a simulated true spoofer LOS direction for the spoofed cases, and simulated antenna motions parameterized by and ρa(t). Monte-Carlo analysis was used to generate many different batches of phase data with different random phase noise realizations in order to produce simulated histograms of the p(γ|, H0) and p(γ|η,H1) probability density functions that are used in false-alarm and missed-detection analyses.
The truth-model simulations verified that the system is practical. A representative calculation used one cycle of an 8-Hz 1-D sinusoidal antenna oscillation with a peak-to-peak amplitude of 4.76 centimeters (exactly 1/4 of the L1 wavelength). The accumulation frequency was 1 kHz so that there were Mj = 125 carrier-phase measurements per satellite per data batch. The number of satellites was L = 6, their LOS vectors were distributed to yield a geometrical dilution of precision of 3.5, and their carrier-to-noise-density ratios spanned the range 38.2 to 44.0 dB-Hz. The worst-case probability of a spoofing false alarm was set at 10-5 and the corresponding worst-case probability of missed detection was 1.2 ´ 10-5. Representative non-worst-case probabilities of false alarm and missed detection were, respectively, 1.7 ´ 10-9 and 1.1 ´ 10-6. These small numbers indicate that this is a very powerful test. Ten-thousand run Monte-Carlo simulations of the spoofed and non-spoofed cases verified the reasonableness of these probabilities and the reasonableness of the p(γ|, H0) and p(γ|η,H1) Gaussian approximations that had been used to derive them.
The live-signal tests bore out the truth-model simulation results. The only surprise in the live-signal tests was the presence of significant multipath, which was evidenced by received carrier amplitude oscillations that correlated with the antenna oscillations and whose amplitudes and phases varied among the different received GPS signals. As a verification that these oscillations were caused by multipath, the only live-signal data set without such amplitude oscillations was the one taken in the NASA Wallops anechoic chamber, where one would not expect to find multipath. The multipath, however, seems to have negligible impact on the efficacy of this spoofing detection system.
FIGURES 5 and 6 show the results of typical non-spoofed and spoofed cases from WSMR live-signal tests that took place on the evening of June 19–20, 2012. Each plot shows the spoofing detection statistic γ on the horizontal axis and various related probability density functions on the vertical axis. This statistic has been calculated using a modified test that includes the estimation of two additional unknowns: an antenna articulation scale factor f and a timing bias t0 for the decaying sinusoidal oscillation . The damping ratio ζ and the undamped natural frequency wn are known from prior system identification tests.
Figure 5. Spoofing detection statistic, threshold, and related probability density functions for a typical non-spoofed case with live data.
Figure 6. Performance of a typical spoofed case with live data: spoofing detection statistic, threshold, and related probability density functions.
The vertical dashed black line in each plot shows the actual value of γ as computed from the GPS data. There are three vertical dash-dotted magenta lines that lie almost on top of each other. They show the worst-case threshold values γth as computed for the optimal and ±2σ estimates of t0: t0opt, t0opt+2σt0opt, and t0opt-2σt0opt. They have been calculated for a worst-case probability of false alarm equal to 10-6. An ad hoc method of compensating for the prototype system’s t0 uncertainty is to use the left-most vertical magenta line as the detection threshold γth. The vertical dashed black line lies very far to the right of all three vertical dash-dotted magenta lines in Figure 5, which indicates a successful determination that the signals are not being spoofed. In Figure 6, the situation is reversed. The vertical dashed black line lies well to the left of the three vertical dash-dotted magenta lines, and spoofing is correctly and convincingly detected.
These two figures also plot various relevant probability density functions. Consistent with the consideration of three possible values of the t0 motion timing estimate, these are plotted in triplets. The three dotted cyan probability density functions represent the worst-case non-spoofed situation, and the dash-dotted red probability functions represent the corresponding worst-case spoofed situations. Obviously, there is sufficient separation between these sets of probability density functions to yield a powerful detection test, as evidenced by the ability to draw the dash-dotted magenta detection thresholds in a way that clearly separates the red and cyan distributions. Further confirmation of good detection power is provided by the low worst-case probabilities of false alarm and missed detection, the latter metric being 1.6 ´ 10-6 for the test in Figure 5 and 7 ´ 10-8 for Figure 6.
The solid-blue distributions on the two plots correspond to the ηopt estimate and the spoofed assumption, which is somewhat meaningless for Figure 5, but meaningful for Figure 6. The dashed-green distributions are for the estimate under the non-spoofed assumption. The wide separations between the blue distributions and the green distributions in both figures clearly indicate that the worst-case false-alarm and missed-detection probabilities can be very conservative.
The detection test results in Figures 5 and 6 have been generated using the last full oscillation of the respective carrier-phase data, as in Figures 3 and 4, but applied to different data sets. In Figure 3, the last full oscillation starts at t = 3.43 seconds, and it starts at t = 2.11 seconds in Figure 4. The peak-to-peak amplitude of each last full oscillation ranged from 4-6 centimeters, and their periods were shorter than 0.5 seconds. It would have been possible to perform the detections using even shorter data spans had the mechanical oscillation frequency of the cantilevered antenna been higher.
Conclusions
In this article, we have presented a new method to detect spoofing of GNSS signals. It exploits the effects of intentional high-frequency antenna motion on the measured beat carrier phases of multiple GNSS signals. After detrending using a high-pass filter, the beat carrier-phase variations can be matched to models of the expected effects of the motion. The non-spoofed model predicts differing effects of the antenna motion for the different satellites, but the spoofed case yields identical effects due to a geometry in which all of the false signals originate from a single spoofer transmission antenna. Precise spoofing detection hypothesis tests have been developed by comparing the two models’ ability to fit the measured data.
This new GNSS spoofing detection technique has been evaluated using both Monte-Carlo simulation and live data. Its hypothesis test yields theoretical false-alarm probabilities and missed-detection probabilities on the order of 10-5 or lower when working with typical numbers and geometries of available GPS signals and typical patch-antenna signal strengths. The required antenna articulation deflections are modest, on the order of 4-6 centimeters peak-to-peak, and detection intervals less than 0.5 seconds can suffice.
A set of live-signal tests at WSMR evaluated the new technique against a sophisticated receiver/spoofer, one that mimics all visible signals in a way that foils standard RAIM techniques. The new system correctly detected all of the attacks. These are the first known practical detections of live-signal attacks mounted against a civilian GNSS receiver by a dangerous new generation of spoofers.
Future Directions
This work represents one step in an on-going “Blue Team” effort to develop better defenses against new classes of GNSS spoofers. Planned future improvements include 1) the ability to use electronically synthesized antenna motion that eliminates the need for moving parts, 2) the re-acquisition of true signals after detection of spoofing, 3) the implementation of real-time prototypes using software radio techniques, and 4) the consideration of “Red-Team” counter-measures to this defense and how the “Blue Team” could combat them; counter-measures such as high-frequency phase dithering of the spoofed signals or coordinated spoofing transmissions from multiple locations.
Acknowledgments
The authors thank the following people and organizations for their contributions to this effort: The NASA Wallops Flight Facility provided access to their anechoic chamber. Robert Miceli, a Cornell graduate student, helped with data collection at that facility. Dr. John Merrill and the Department of Homeland Security arranged the live-signal spoofing tests. The U.S. Air Force 746th Test Squadron hosted the live-signal spoofing tests at White Sands Missile Range. Prof. Todd Humphreys and members of his University of Texas at Austin Radionavigation Laboratory provided live-signal spoofing broadcasts from their latest receiver/spoofer.
Manufacturers
The prototype spoofing detection data capture system used an Antcom Corp. (www.antcom.com) 2G1215A L1/L2 GPS antenna. It was connected to an Ettus Research (www.ettus.com) USRP (Universal Software Radio Peripheral) N200 that was equipped with the DBSRX2 daughterboard.
MARK L. PSIAKI is a professor in the Sibley School of Mechanical and Aerospace Engineering at Cornell University, Ithaca, New York. He received a B.A. in physics and M.A. and Ph.D. degrees in mechanical and aerospace engineering from Princeton University, Princeton, New Jersey. His research interests are in the areas of GNSS technology, applications, and integrity, spacecraft attitude and orbit determination, and general estimation, filtering, and detection.
STEVEN P. POWELL is a senior engineer with the GPS and Ionospheric Studies Research Group in the Department of Electrical and Computer Engineering at Cornell University. He has M.S. and B.S. degrees in electrical engineering from Cornell University. He has been involved with the design, fabrication, testing, and launch activities of many scientific experiments that have flown on high altitude balloons, sounding rockets, and small satellites. He has designed ground-based and space-based custom GPS receiving systems primarily for scientific applications.
BRADY W. O’HANLON is a graduate student in the School of Electrical and Computer Engineering at Cornell University. He received a B.S. in electrical and computer engineering from Cornell University. His interests are in the areas of GNSS technology and applications, GNSS security, and GNSS as a tool for space weather research.
VIDEO
Here is a video of Cornell University’s antenna articulation system for the team’s first prototype spoofing detector tests.
FURTHER READING
• The Spoofing Threat and RAIM-Resistant Spoofers
“Status of Signal Authentication Activities within the GNSS Authentication and User Protection System Simulator (GAUPSS) Project” by O. Pozzobon, C. Sarto, A. Dalla Chiara, A. Pozzobon, G. Gamba, M. Crisci, and R.T. Ioannides, in Proceedings ofION GNSS 2012, the 25th International Technical Meeting of The Institute of Navigation, Nashville, Tennessee, September 18–21, 2012, pp. 2894-2900.
“Assessing the Spoofing Threat” by T.E. Humphreys, P.M. Kintner, Jr., M.L. Psiaki, B.M. Ledvina, and B.W. O’Hanlon in GPS World, Vol. 20, No. 1, January 2009, pp. 28-38.
• Moving-Antenna and Multi-Antenna Spoofing Detection
“Robust Joint Multi-Antenna Spoofing Detection and Attitude Estimation by Direction Assisted Multiple Hypotheses RAIM” by M. Meurer, A. Konovaltsev, M. Cuntz, and C. Hattich, in Proceedings ofION GNSS 2012, the 25th International Technical Meeting of The Institute of Navigation, Nashville, Tennessee, September 18–21, 2012, pp. 3007-3016.
“GNSS Spoofing Detection for Single Antenna Handheld Receivers” by J. Nielsen, A. Broumandan, and G. Lachapelle in Navigation, Vol. 58, No. 4, Winter 2011, pp. 335-344.
• Alternate Spoofing Detection Strategies
“Who’s Afraid of the Spoofer? GPS/GNSS Spoofing Detection via Automatic Gain Control (AGC)” by D.M. Akos, in Navigation, Vol. 59, No. 4, Winter 2012-2013, pp. 281-290.
“Civilian GPS Spoofing Detection based on Dual-Receiver Correlation of Military Signals” by M.L. Psiaki, B.W. O’Hanlon, J.A. Bhatti, D.P. Shepard, and T.E. Humphreys in Proceedings of ION GNSS 2011, the 24th International Technical Meeting of The Institute of Navigation, Portland, Oregon, September 19–23, 2011, pp. 2619-2645.
• Statistical Hypothesis Testing
Fundamentals of Statistical Signal Processing, Volume II: Detection Theory by S. Kay, published by Prentice Hall, Upper Saddle River, New Jersey,1998.
An Introduction to Signal Detection and Estimation by H.V. Poor, 2nd edition, published by Springer-Verlag, New York, 1994.
An ITT Exelis product that detects and locates GPS interference sources in 3-D by using longitude, latitude and altitude has successfully completed a significant integration milestone.
Signal Sentry 1000, formerly known as GPS Interference, Detection and Geolocation, may now be deployed to collect actionable intelligence for law enforcement, such as tracking high-value targets and protecting critical infrastructure.
Signal Sentry 1000 is a proprietary product that leverages GNSS signal domain knowledge; it is based upon patented technology developed by Exelis through many years of designing and fielding electronic intelligence systems, ITT Exelis said.
“Exelis developed Signal Sentry 1000 to help protect critical infrastructure and to deliver intelligence to law enforcement operations that depend upon GPS availability,” said Kevin Farrell, positioning, navigation and timing general manager for Exelis Geospatial Systems. “Jamming devices can transmit signals capable of disrupting the synchronization of critical infrastructure, such as utility power grids, and timing information of financial transactions. This is why we are continually making improvements in our technology, and the latest milestone achievement is a testament to our goal to deliver actionable interference intelligence to agencies that rely upon GPS operational availability.”
Signal Sentry 1000 technology is a network of threat-detection sensors, which are part of a centralized server executing Exelis‐developed proprietary location algorithms. These sensors can be strategically located around areas of critical infrastructure, such as shipping ports, utilities and government facilities to automatically sense and locate any intentional or unintentional GPS jamming source. Should a threat be detected, users would receive accurate location information and actionable intelligence in order to determine an interference-mitigation plan.
“Signal Sentry 1000 builds upon Exelis expertise in the field of GPS and positioning, navigation and timing. Exelis payloads and payload components have been on board every GPS satellite for nearly 40 years,” said Farrell. “Today, Exelis is involved in GPS modernization initiatives, building tomorrow’s GPS III satellite constellation by developing and integrating the navigation payloads. Exelis is also providing navigation processing components, precision monitor station receivers, and key components of the system security design for the GPS Operational Control System, also known as OCX.”
By Daniel Shepard, Jahshan A. Bhatti, and Todd E. Humphreys
Unmanned aerial vehicle (uav) used in the spoofing tests; owned by the University of Texas.
A radio signal sent from a half-mile away deceived the GPS receiver of a UAV into thinking that it was rising straight up. In this way, the UAV’s dependence on civil GPS allowed the spoofer operator to force the UAV vertically downward in dramatic fashion as part of multiple capture demonstrations.
In December 2011, Iran captured a U.S. Central Intelligence Agency (CIA) surveillance drone with only minor damage to the undercarriage of the drone, likely due to a rough landing when captured. An Iranian engineer claimed in an interview that “Iran managed to jam the drone’s communication links to American operators” causing the drone to shift into an autopilot mode that relies solely on GPS to guide itself back to its home base in Afghanistan. With the drone in this state, the Iranian engineer claimed that “Iran spoofed the drone’s GPS system with false coordinates, fooling it into thinking it was close to home and landing into Iran’s clutches.”
Although the Iranian claims are highly questionable, this incident left many unanswered questions as to the security of GPS systems on unmanned aerial vehicles (UAVs). The CIA drone should have been guiding itself based on the encrypted military GPS signals, which would be incredibly difficult to spoof. However, some experts have conjectured that simultaneous jamming of the military signals and spoofing of the civilian signals might have worked if the drone had been programmed to fall back on the civilian GPS signals in the event that the military signals were jammed. This raises the question: How difficult would it be to spoof a UAV guiding itself based on civilian GPS signals?
FAA Modernization Act
In February of this year, Congress passed the FAA Modernization and Reform Act of 2012. According to the Library of Congress summary, this act “requires the Secretary [of Transportation] to develop a plan to accelerate safely the integration by September 30, 2015, of civil unmanned aircraft systems (UASes, or drones) into the national airspace system … [and] determine if certain drones may operate safely in the national airspace system before completion of the plan.”
Such civilian UAVs would be primarily guided by civil GPS, which has been shown to be readily spoofable in the lab. This would create a significant potential hazard in the national airspace if the problem of civil GPS spoofing is not fixed. Thousands of civilian UAVs (operated by postal services, police departments, research institutions, and others) could populate the skies in only a few years while still being vulnerable to remote hijacking via GPS spoofing. The passing of the FAA Modernization Act further emphasizes the need to examine the vulnerability of UAVs to GPS spoofing.
Test
On invitation of the Department of Homeland Security (DHS), unclassified spoofing tests against a UAV were performed at White Sands Missile Range (WSMR) on June 19, 2012 during the DHS GYPSY test exercise. These tests demonstrated the capability of a spoofer, built by the University of Texas (UT) Radionavigation Lab, to commandeer a civilian UAV by influencing the position-velocity-time (PVT) solution of the UAV’s GPS receiver.
The Spoofer. The civil GPS spoofer used for these tests is an advanced version of the spoofer reported in “Assessing the Spoofing Threat,” GPS World, January 2009. A schematic representation of the spoofer is shown in Figure 1. It is the only spoofer reported in open literature to date that is capable of precisely aligning the spreading codes and navigation data of its counterfeit signals with those of the authentic GPS signals. Such alignment capability allows the spoofer to carry out a sophisticated spoofing attack in which no obvious clues remain to suggest that an attack is underway.
Figure 1. This spooler is capable of precisely aligning the spreading code and navigation data of its counterfeit signals with GPS signals.
The spoofer is implemented on a portable software-defined radio platform with a digital signal processor (DSP) at its core. This platform comprises:
A radio frequency (RF) front-end that down-mixes and digitizes GPS L1 and L2 frequencies
A DSP board that performs acquisition and tracking of GPS L1 C/A, calculates a navigation solution, predicts the L1 C/A databits, and produces a consistent set of up to 14 spoofed GPS L1 C/A signals with a user-controlled fictitious implied navigation and timing solution.
An RF back-end with a digital attenuator that converts the digital samples of the spoofed signals from the DSP to analog output at the GPS L1 frequency with a user-controlled broadcast power.
A single-board computer that handles communication between the spoofer and a remote computer over the Internet.
The spoofer works by first acquiring and tracking GPS L1 C/A and L2C signals to obtain a navigation solution. It then enters its “feedback” mode, in which it produces a counterfeit, data-free feedback GPS signal that is summed with its own antenna input. The feedback signal is tracked by the spoofer and used to calibrate the delay between production of the digitized spoofed signal and output of the analog spoofed signal. This is necessary because the delay is non-deterministic on start-up of the receiver, although it stays constant thereafter.
After feedback calibration is complete and enough time has elapsed to build up a navigation data bit library, the spoofer is ready to begin an attack. Initially, it produces signals that are aligned to within a few meters with the authentic signals at the location of the target antenna but have low enough power that they remain far below the target receiver’s noise floor. The spoofer then raises the power of the spoofed signals slightly above that of the authentic signals. At this point, the spoofer has taken control of the victim receiver’s tracking loops and can slowly lead the spoofed signals away from the authentic signals, carrying the receiver’s tracking loops with it. The target receiver can be considered completely captured when either of the following are true:
each spoofed signal has shifted by 2 µs relative to the authentic signals, or
each spoofed signal is at least 10 dB more powerful than the corresponding authentic signal.
The latter option ensures that there is no significant interaction between authentic and spoofed signals by simultaneously jamming and spoofing.
The UT spoofer and attack strategy have been tested against a wide variety of civil GPS receivers and have always been successful in commandeering the target receiver.
Test UAV. The spoofing tests targeted a University-of-Texas-owned Hornet Mini UAV supplied by Adaptive Flight, which is shown in the opening photo. The Hornet Mini is roughly five feet long and weighs about 10 pounds when fully loaded. The Mini’s sophisticated avionics package loosely couples an altimeter, magnetometer, and a MEMS IMU package to a GPS receiver via an extended Kalman filter.
The Hornet Mini is representative of UAVs used by law enforcement. Thus, the results of the spoofing tests with the Mini also apply to other similarly-designed UAVs, including those used in most civil applications, whose navigation systems are centered on civil GPS. It should be noted that no special alterations were made to the Hornet Mini for this test – it was in its “as sold” or “stock” configuration.
Setup. A schematic of the setup used for the spoofing tests against the civil UAV at WSMR appears in Figure 2. The spoofer was located on a hilltop with the receive antenna on the far side of the hilltop from the transmit antenna as shown in Figure 3. The UAV site was located in a sandy basin approximately 620 meters from the transmit antenna.
Figure 2. Schematic of the test setup.
Figure 3. Aerial view of the test site showing the spoofer location on a hilltop and the UAV site 0.62 kilometers away.
Procedure. The UAV was commanded by its ground controller to hover approximately 60 feet above ground level at the UAV site. After the initial ground control command was sent, the UAV maintained its hovering position automatically based on the navigation solution of its extended Kalman filter, which is based in part on GPS. At this point in the test procedure, the spoofed signals were not being broadcast: the UAV was only under the influence of the authentic GPS signals.
The spoofer was then commanded to begin transmitting spoofed signals. To ensure seamless capture of the UAV’s GPS unit, the code phases of the spoofed signals were aligned to within meters of the authentic signals at the location of the UAV’s GPS antenna. The spoofed signals overpowered their authentic counterparts and instantly captured the tracking loops within the UAV’s GPS receiver.
Immediately after capture, the spoofer induced a false velocity and corresponding position change in the UAV’s GPS receiver, drawing the position reported by the UAV’s extended Kalman filter away from the UAV’s commanded hover position. To compensate, the UAV’s flight controller responded by moving in the opposite direction. A safety pilot was on hand to prevent the UAV from drifting out of control. This was necessary because by commandeering the UAV’s GPS receiver, the spoofer operator effectively breaks the UAV autopilot’s feedback control loop. The spoofer operator must now act as an operator-in-the-loop, which requires real-time, meter-level knowledge of the UAV’s true location.
Results. Between tests WSMR and UT, the spoofer demonstrated short-term 3-dimensional control of the UAV. Thus, we conclude that it is indeed possible to hijack a civil UAV — in this case, a fairly sophisticated one — by civil GPS spoofing.
Interestingly, the Hornet Mini relies only on its altimeter for direct measurements of its vertical position; the GPS-measured vertical position is ignored. This can be done with reasonable accuracy because of the Hornet Mini’s short flight endurance (~20 minutes). However, the GPS vertical velocity does affect the extended Kalman filter’s vertical coordinate estimate because the filter propagates GPS velocity measurements through a UAV dynamics model to form an a priori vertical estimate that gets updated with the altimeter measurements. This dependence on GPS velocity allowed the spoofer operator to force the UAV vertically downward in dramatic fashion in the final three capture demonstrations.
Developing a full spoofer-based control system for a UAV is a difficult problem that, in addition to the requirement for real-time true position feedback, requires the spoofer to model the UAV’s feedback control behavior and to estimate the UAV’s desired path. Causing a UAV to spin out of control and crash is not difficult with a spoofer, but fine-grained control certainly is.
Implications
These tests have demonstrated that civilian UAVs will be vulnerable to control by malefactors with a civil GPS spoofer looking to hijack or crash these UAVs unless their vulnerability to GPS spoofing is addressed. There are several reasons why someone may want to spoof a drone including fear over drones invading people’s privacy. This poses a significant safety concern that could result in mid-air collisions with other aerial vehicles or buildings, not to mention loss of property.
Constructing from scratch a sophisticated GPS spoofer like the one developed by UT is not easy, nor is it within the capability of the average anonymous hacker. It is orders of magnitude harder than developing a GNSS jammer. Nonetheless, the trend toward software-defined GNSS receivers for research and development, where receiver functionality is defined entirely in software downstream of the A/D converter, has significantly lowered the bar to spoofer development in recent years.
As a point of reference, we estimate that there are more than 100 researchers in universities around the globe who are well-enough versed in software-defined GPS that they could develop a sophisticated spoofer from scratch with a year of dedicated effort. More worrisome is the fact that one does not have to build a sophisticated spoofer like ours, capable of aligning its signals precisely with authentic signals at the location of a chosen target, to spoof a civil GPS receiver. A low-cost off-the-shelf GPS signal simulator would not permit the kind of seamless attack we carried out, but would be adequate to confuse and disrupt the navigation system of a commercial UAV.
Fixing the Problem
There is no quick, easy, and cheap fix for the civil GPS spoofing problem. Moreover, not even the most effective GPS spoofing defenses are foolproof. Nonetheless, there are many possible remedies to the spoofing problem that, while not foolproof, would vastly improve civil GPS security. These defenses can be broken up into two categories: cryptographic and non-cryptographic defenses.
Cryptographic defenses come primarily in two forms, spread-spectrum security codes (SSSC) and navigation message authentication (NMA), depending on whether the unpredictable digital signature is placed on the spread-spectrum code or the navigation data. These cryptographic signatures could be placed on WAAS signals or existing or future GPS signals to provide authentication of the source of the WAAS or GPS signals. A cryptographic defense implemented with appropriate checks to protect against certain variants of spoofing attacks, described in “Straight Talk on Anti-Spoofing,” GPS World, January 2012, would significantly raise the bar for a would-be spoofer. Several proposals for cryptographic methods are currently on the table including a proposal by Logan Scott to place SSSC signatures on GPS L1C signals that will be broadcast by GPS Block III satellites. However, the current proposals for civil GPS cryptographic authentication schemes are still at least several years away from implementation and have a 5-minute window between authentications of each individual GPS signal. These proposals have currently gained no ground in being implemented because of a lack of dedicated funds for development and implementation.
There are also a number of promising non-cryptographic techniques for civil GPS spoofing detection that include jamming-to-noise power detectors (J/N meters), correlation profile anomaly defenses, and antenna-based defenses. J/N meters are simple and easily-implementable and would prevent a spoofer from simultaneous jamming and spoofing. However, a J/N sensor will not typically detect a spoofing attack in which the spoofed signals are only slightly more powerful than their authentic counterparts. The inclusion of a J/N meter does ensure that the authentic signals will also be visible as a corruption to the correlation curve during a spoofing attack, due to the difficulty of nulling out the authentic signal. This allows correlation profile anomaly defenses to be viable. However, these methods suffer from the difficulty of distinguishing multipath effects from a spoofing attack, particularly in mobile receivers. Antenna-based defenses also present an attractive option for anti-spoofing, but most of these methods require additional hardware (multiple antennas) and cost. One promising new antenna-based defense is currently under development at Cornell University that does not require multiple antennas. This defense involves an extension of the signal spatial correlation technque developed by the University of Calgary PLAN group. However, this technique is still under development, and receivers implementing this technique would likely be several times more expensive than current receivers.
We recommend that for non-recreational operation in the national airspace, civil UAVs exceeding 18 pounds be required to employ navigation systems that are spoof-resistant. Spoof resistance will be defined through a series of four canned attack scenarios that can be recreated in a laboratory setting. A navigation system is declared spoof-resistant if, for each attack scenario, the system is either unaffected by or able to detect the spoofing attack. Spoofing detection combined with an appropriate GPS-denied mode for the UAV to fall back on will significantly increase the difficulty of mounting a successful spoofing attack.
Additionally, civil GPS receivers in many critical infrastructures (communications networks, financial trade centers, and the power grid) are also vulnerable to civil GPS spoofing. These critical infrastructures primarily rely on GPS for timing, which is also susceptible to manipulation with varying consequences depending on the application. A discussion of power grid vulnerabilities to GPS spoofing is given in “Going Up Against Time” in this issue of the magazine on page 34. We also recommend that GPS-based timing or navigation systems having a non-trivial role in systems designated by DHS as national critical infrastructure be required to be spoof-resistant.
Finally, we recommend that funding be committed for development and implementation of a cryptographic authentication signature in one of the existing or forthcoming civil GPS signals. The signature should at minimum take the form of a digital signature interleaved into the navigation message stream of the WAAS signals. A better plan would be to interleave the signature into the CNAV or CNAV2 GPS navigation message stream. The best plan for implementing a cryptographic authentication signature would be to implement the signature as an SSSC interleaved into the spreading code of the L1C data channel. Inclusion of a cryptographic signature would greatly aid manufacturers in developing receivers that are spoof-resistant.
Manufacturers
The Hornet Mini UAV carries a µ-blox GPS receiver.
Daniel P. Shepard is pursuing M.S. and Ph.D. degrees in aerospace engineering at the University of Texas (UT) at Austin. He is a member of the Radionavigation Laboratory.
Jahshan A. Bhatti is pursuing a Ph.D. in aerospace engineering and engineering mechanics at UT and is a member of the Radionavigation Laboratory.
Todd E. Humphreys is an assistant professor of aerospace engineering and engineering mechanics at UT and director of the Radionavigation Laboratory. He received a Ph.D. in aerospace engineering from Cornell University.
By Daniel P. Shepard, Todd E. Humphreys, and Aaron A. Fansler
Spoofing tests against phasor measurement units demonstrate their vulnerability to attack. A generator trip in an automatic control scheme could be falsely activated by the GPS spoofing, possibly leading to cascading faults and a large-scale power blackout.
As electric power grids continue to expand throughout the world and as transmission lines are pushed to their operating limits, the dynamic operation of the power system has become a serious concern and increasingly difficult to accurately model. More effective real-time system control is now seen as key to preventing wide-scale cascading outages like the 2003 Northeast Blackout.
For years, electric power control centers have estimated the state of the power system (the positive sequence voltage magnitude and phase angle at each network node) from measurements of power flows. But for improved accuracy in the so-called power system state estimates, it will be necessary to feed existing estimators with a richer measurement ensemble or to measure the grid state directly.
Alternating current (AC) quantities have been analyzed for over 100 years using a construct developed by Charles Proteus Steinmetz in 1893, known as a phasor. In power systems, the phasor construct has commonly been used for analyzing AC quantities, assuming a constant frequency. A relatively new synchronization technique which allows referencing measured current or voltage phasors to absolute time has been developed and is currently being implemented throughout the world. The measurements produced by this technique are known as synchronized phasor measurements or synchrophasors.
Synchrophasors provide a real-time snapshot of current and voltage amplitudes and phases across a power system, and so can give a complete picture of the state of a power system at any instant in time. This makes synchrophasors useful for control, measurement, and analysis of the power system.
A device used to measure synchrophasors is called a phasor measurement unit (PMU). In a typical deployment, PMUs are integrated in protective relays and are sampled from widely dispersed locations in the power system network. They are synchronized with respect to the common time source of a GPS clock. PMUs basically measure AC voltage (or current) and absolute phase angles at selected locations in an electric transmission or distribution system.
GPS Spoofing
GPS spoofing is the act of producing a falsified version of the GPS signal with the goal of taking control of a GPS receiver’s position-velocity-time (PVT) solution. This is most effectively accomplished when the spoofer has knowledge of the GPS signal as seen by the target receiver so that the spoofer can produce a matched, falsified version of the signal. In the case of military signals, this type of attack is nearly impossible because the military signal is encrypted and therefore unpredictable. On the other hand, the civil GPS signal is publicly-known and readily predictable.
In recent years, civil GPS spoofing is becoming recognized as a serious threat to many critical infrastructure applications which rely heavily on the publicly-known civil GPS signal. A number of promising methods are currently being developed to defend against civil GPS spoofing attacks, but it will still take a number of years before these technologies mature and are implemented on a wide scale. Currently, there is a complete absence of any off-the-shelf defense against a GPS spoofing attack.
See “Generation, Transmission” sidebar at the end of this article for background on the following tests.
The Tests. The minimum threshold for success was to show that a GPS spoofer could force a PMU to violate the IEEE C37.118 Standard “Synchrophasors for Power Systems,” which defines accuracy as a vectorial difference between the measured and expected value of the phasor for the measurement at a given instant of time, called the total vector error (TVE). TVE blends three possible sources of error: magnitude, phase angle, and timing. An error in timing appears identical to an error in phase angle. Without timing and magnitude errors, a phase angle error of 0.573o corresponds to a 1 percent TVE, the maximum allowable by the IEEE C37.118 Standard. This phase angle error could be equivalently and indistinguishably caused by a timing error of 26.5 µs, which was chosen as the threshold for success in the spoofing tests.
The Spoofer
The civil GPS spoofer used for these tests is an advanced version of the spoofer reported in “Assessing the Spoofing Threat,” GPS World, January 2009. A block diagram of the spoofer is shown in Figure 1. It is the same spoofer used in the tests described in “Drone Hack” in this issue of the magazine, and a detailed description is given in that article.
The spoofer can carry out a sophisticated spoofing attack in which no obvious clues remain to suggest that an attack is underway. The University of Texas spoofer and attack strategy have been tested against a wide variety of GPS receivers and has always been successful in commandeering the target receiver.
Figure 1. Block diagram of the University of Texas spoofer used to attack the phasor unit.
Test Setup
Figure 2 shows a schematic of the setup used for the open-air tests. The signals received at the roof were routed into the spoofer for use in producing the counterfeit signals and into the RF shielded tent for rebroadcasting. The counterfeit signals were also routed into the tent for broadcasting. In addition to the antennas broadcasting the authentic and counterfeit signals, a third antenna was setup inside the tent to receive the combination of authentic and spoofed signals. This setup is representative of an actual attack scenario where the malefactor does not have physical access to the victim receiver’s antenna input but rather broadcasts the spoofed signals over-the-air. For cable-only tests, the entire setup inside the tent was replaced with a signal combiner that summed the authentic and spoofed signals.
Figure 2. Schematic of the test setup.
The combined authentic and spoofed signals were fed to the victim GPS time reference receiver. The output timing signal from the victim receiver was used as the synchronization reference for one PMU, whereas a second PMU was given timing from a separate GPS time reference receiver that was tracking only authentic GPS signals. Since the PMUs were in the same room and measured the local voltage and carrier phasors, both PMUs would report roughly the same phasor measurements under normal circumstances. Thus, any significant differences in the phase angle measurements between the two PMUs could be attributed to the effects of spoofing.
Test Results
Both the cable-only and the over-the-air spoofing attacks were successful in leading the PMU phase measurements off from the truth. Figure 3 shows the measured phase angle difference between the reference PMU, which was fed the true GPS signal, and the spoofed PMU throughout one entire test. This value would normally be less than a few degrees in the absence of spoofing, since the two PMUs are co-located. After the initial ten minute capture-and-carry-off, which proceeds slowly to avoid detection, the spoofer accelerates its carry-off and the reference and spoofed phase angles quickly diverge.
Figure 3. A plot of the phase angle difference between the reference and the spoofed PMUs. Normally the phase angle difference would be nearly zero in the absence of a spoofing attack. Point 1 marks the start of the test. Point 2 marks the point at which the spoofer has completely captured the victim receiver. Point 3 marks the point at which the IEEE C37.118 Standard has been broken. Point 4 marks the point at which the spoofer-induced velocity has reached its maximum value for the test. Point 5 marks the point at which the spoofed signal was removed.
Figure 4 shows pictures of an oscilloscope and the Synchrowave screen at the start of the test. The oscilloscope shows two pulse-per-second (PPS) signals, with the upper yellow pulse coming from a reference clock being fed true GPS and the lower blue pulse coming from the spoofed timing receiver. Both PPS signals are initially aligned with each other. The Synchrowave screen displays the PMU phase angle data in real-time as phasors with the nominal 60 Hz operating frequency subtracted from the phase angle. The red and green phasors show the phase data from the reference and spoofed PMUs respectively. These phasors are within a few degrees of each other at the beginning of the test.
Figure 4. Oscilloscope (left) and Synchrowave (right) screen at the start of the test, which is marked as point 1 in Figure 3.
Figure 5 shows pictures of the Oscilloscope and the Synchrowave screen at about 620 seconds into the test. At this point, the spoofer has moved the victim receiver 2 µs off in time and has completely captured the receiver. The delicate initial capture-and-carry-off is performed at a slow rate to suppress any evidence of the spoofer’s presence. However, this process could be done quicker because the receiver was not looking for such evidence of foul play. At this stage of the test, there is not yet any significant difference between the two phasors on the Synchrowave screen, since the spoofed time offset remains relatively small. The oscilloscope, however, reveals that the PPS output from the victim receiver has moved by about 2 µs relative to the reference PPS. At this point, the spoofer begins to accelerate the victim receiver’s time solution at a distance-equivalent rate of 4 m/s2 until it reaches a final distance-equivalent velocity of 1000 m/s. Distance-equivalent velocity can be converted into the actual time rate of change of time by dividing by the speed of light.
Figure 5. Oscilloscope and Synchrowave screen at about 620 seconds, point 2 in Figure 3.
The acceleration segment of the attack must be tailored to the individual receiver’s ability to track the spoofer-induced dynamics. Otherwise, the spoofer risks losing control of the victim receiver’s tracking loops by moving too quickly for the receiver to track or by raising alarms. Alternatively, a malefactor could survey possible GPS time reference receivers that might be used and tailor the spoofing attack such that any of the receivers would track and believe the spoofed signals. This would place severe limits on the spoofer’s ability to manipulate timing, but would not make the attack impossible or implausible.
Figure 6 shows the oscilloscope and Synchrowave screen at about 680 seconds into the test. At this point, the spoofer has broken the IEEE C37.118 Standard for PMUs, which requires accuracy in the measured phase angle of 0.573o. This demonstrates a significant vulnerability for PMU-based monitoring and control, since these applications leverage the accuracy supposedly guaranteed by the standard. There is yet no noticeable difference on the Synchrowave screen, but the oscilloscope clearly shows that the victim receiver has now been offset in time by about 20 µs.
Figure 6. Oscilloscope and Synchrowave screen at about 680 seconds, point 3 in Figure. 3.
Figure 7 shows pictures of the oscilloscope and the Synchrowave screen at about 870 seconds into the test. At this point, the spoofer has reached its final velocity of 1000 m/s. A phase angle offset of 10o has also been introduced in a matter of minutes. As expected, there is a marked difference in the phasors on the Synchrowave screen. The oscilloscope also shows a time offset of 400 µs has been induced in the victim receiver.
Figure 7. Oscilloscope and Synchrowave screen at about 870 seconds, point 4 in Figure 3.
Figure 8 shows pictures of the oscilloscope and the Synchrowave screen at about 1370 seconds into the test. At this point, the spoofed signal was heavily attenuated and instantly realigned with the authentic signals. This was intended to be the end of the test, but when this particular receiver lost lock on the signal it continued to send out a valid time signal to the PMU while fly-wheeling off its internal clock. This caused an alarm to issue on the front panel of the time reference receiver indicating loss of GPS signal lock. The downstream PMU, however, was oblivious to this loss of lock. This state persisted for about half an hour before the clock finally reacquired the authentic signal and instantly realigned its time output, which caused the phasors to realign. Figure 3 does not show the phase angle data for this entire period, but does show that the phase angle difference exceeds at least 70o before the time reference receiver reacquires the authentic signal.
Figure 8. Oscilloscope and Synchrowave screen at about 1370 seconds, point 5 in Figure 3.
Implications
Synchrophasor data provides a clear picture of the state of the power system in real-time. As the size of the power grid grows and stability margins are reduced (to provide more efficient distribution of power), it will become desirable to use synchrophasors for control purposes. PMU manufacturers are currently selling PMUs capable of implementing automated control schemes that offer response times less than 4 cycles. Such swift response times are seen as necessary to prevent grid instability or damage to equipment.
Control schemes based on synchrophasors rely on phase angle differences between two nodes as an indicator of a fault condition. One example of a currently operational synchrophasor-based control system is the Chicoasen-Angostura transmission link in Mexico. This transmission line links together large hydroelectric generators in Agostura to large loads in Chicoasen through two 400-kV transmission lines and one 115-kV transmission line. If a fault occurs in which both of the 400-kV lines are lost, then the hydroelectric generators may experience angular instability. In order to prevent this, a PMU was set up at each end of the transmission lines with a direct communications link between them. It was found that under nominal and single-fault (only one 400-kV line lost) conditions, the phase angle difference between the two locations was less than 7o, whereas a double-fault (both 400-kV lines lost) produced a phase angle difference of 14o. Based on this finding, the PMUs were configured so that if the phase angle difference exceeded 10o, the hydroelectric generators would be automatically tripped.
If a spoofer were to attack this system in Mexico or a similar implementation elsewhere, then the spoofer could cause a generator trip. In the test described in the previous section, a 10o offset, the threshold for the Chicoasen-Angostura link, was induced by the spoofer about 250 s after capturing the target receiver, as seen in Figures 3 and 7. A malefactor could even lead the phase angle off in the opposite direction (say 7o) before cutting both 400-kV transmission lines. Instead of causing a generator to unnecessarily trip, this would prevent PMUs from tripping the generator when required and potentially cause damage to the generator or remaining transmission lines.
Beyond tripping a single generator, there is potential for the effects of the attack to propagate through the grid and cause cascading faults across the grid. One example of this type of cascading failure is the 2003 Northeast blackout. Although this blackout did not involve PMUs or a spoofing attack, it demonstrates how an appropriately targeted attack against PMUs used for control on the power grid could cause large scale blackouts that originate with a single generator or transmission line trip.
On August 14, 2003, at 3:05 p.m., a 345-kV transmission line in Ohio began to sag from increased flow of electric power. When the line sagged too close to a tree, it caused a short-to-ground and tripped offline. This is something that happens fairly frequently on the massive U.S. electrical grid and is usually easily dealt with. However, the tripping of that line in northern Ohio began a cascade of failures that, in a little more than an hour, led to a near total power loss for more than 50 million people in the northeastern U.S. and parts of Canada.
The blackout is estimated to have cost approximately $6 billion for only four days of power loss. This led the Department of Energy and the North American Electric Reliability Corporation (NERC) to fund and push for an improved “smart grid” with synchrophasor technology as a major component.
As previously pointed out, PMUs are high-speed, real-time synchronized measurement devices used to diagnose the health of the electricity grid. With synchrophasor data, electric utilities can use existing power more efficiently and push more power through the grid while reducing the likelihood of power disruptions like blackouts. Synchrophasor measurements are being looked at to reduce the likelihood of false and inappropriate triggers of transmission system circuit breakers that protectively shut down electrical flow and contribute to cascading blackouts. However, GPS spoofing poses a significant threat to these objectives for PMUs and can make synchrophasor-based control the cause for these events instead of the cure.
Conclusions
Spoofing poses a threat to the integrity of synchrophasor measurements. A spoofer can introduce a time offset in the time reference receiver that provides the timing signal for a PMU without having physical access to the receiver itself. This produces a corresponding phase offset in the synchrophasor data coming from that PMU. Tests demonstrated that a PMU could be made to violate the IEEE C37.118 Standard for synchrophasors in about 11 minutes from the start of a spoofing attack.
As PMU usage continues to grow throughout the world, PMUs will increasingly be used for automatic control purposes instead of just grid monitoring. The tests described here demonstrate that a spoofer could cause control schemes to falsely trip a generator. In the presence of other exacerbating factors, this could lead to a cascade of faults and a large scale blackout.
Daniel P. Shepard is pursuing M.S. and Ph.D. degrees in aerospace engineering at the University of Texas at Austin. He is a member of the Radionavigation Laboratory.
Todd E. Humphreys is an assistant professor of aerospace engineering and engineering mechanics at the University of Texas at Austin and director of the Radionavigation Laboratory. He received a Ph.D. in aerospace engineering from Cornell University.
Aaron A. Fansler serves as cyber critical infrastructure protection (CCIP) program manager for Northrop Grumman Information System. He obtained a Master’s degree from Capitol College in information assurance and is currently working on a Ph.D. in that field.
Generation, Transmission
The generation, transmission, and distribution of electric power make the power grid the most critical of critical infrastructures in the United States. Past events and numerous government demonstrations have shown just how vulnerable the power grid can be, not only to natural disasters, but more importantly to malicious cyber activity, which is on the rise. Past consequences of power disruption were annoyance and some economic cost; future disruptions from intentional malicious activity could cascade into crippling failures. Cyber threats now rival the consequences of physical attacks.
Over the past decade, the power industry has seen an explosion in the use of accurate, synchronized time incorporated into its controlling networks. Accurate timing signals are exploited in power systems from the generation plant down to the distribution substation and now down to individual smart grid component.
The value of time synchronization is best understood by recognizing that the power grid is a single, complex, interconnected, and interdependent network. What happens in one part of the grid affects operation elsewhere, and in other systems reliant on stable power, as was observed in the 2003 Northeast Blackout.
With the transition to smart technologies and a unified, synchronized grid, the potential for catastrophic cascading failures increases if proper control measures are not implemented. Time-synchronized measurements are changing the way electric power systems are controlled to protect against these events. Phasor measurement units (PMUs) have recently emerged as one technology which has the potential to one day anticipate failures, making it possible to take remedial actions before failures spread across the network.
PMUs rely on GPS to provide accurate, synchronized time across the power grid. This reliance creates a vulnerability to a particular type of malicious attack: GPS spoofing. Spoofers generate counterfeit GPS signals that commandeer a victim receiver’s tracking loops and induce spoofer-controlled time or position offsets. The 2001 USDOT Volpe Report noted the absence of any off-the-shelf defense against civilian spoofing. In 2008, researchers demonstrated that an inexpensive portable software-defined GPS spoofer could be built from off-the-shelf components.
Northrop Grumman Information Systems (NGIS) and the University of Texas (UT) conducted a functional test and evaluation of the effects a spoofed GPS timing signal would have on synchrophasors, to determine if adverse effects could be produced on a sensitive timing-signal-dependent network such as a Supervisor Control and Data Acquisition (SCADA) network and the network devices such as PMUs. This article describes the test.
Just for the record: what is reported in “Detecting False Signals With Automatic Gain Control” (April GPS World) is what we introduced a long time ago and is reflected in one of our videos, and implemented in all of our GNSS receivers. AGC information is one of the four ways, and the least significant way, that we show interferences. There is a big difference between showing something in the laboratory and in some receivers, compared with having technology in mass production that everyone can understand and use. — Javad Ashjaee
JAVAD GNSS, San Jose, California
Author Dennis Akos replies:
I am sure JAVAD receivers work quite well to leverage AGC to flag RFI (it was not the survey-grade model I used for the paper, though). The original Nordnav R30 GPS receiver showed both AGC and the L1 frequency spectrum back in 2004. u-blox has an RFI flag in its receiver, which is based on AGC. Others likely do as well.
In any event, AGC detection of RFI (and you could say spoofing) is not new. I coauthored an ION GPS paper with Bastide and others back in 2003 showing how powerful AGC could be to detect interference. In 1997 Per Enge had a student, Awele Ndili, working with the Plessey chipset, who did something similar, checking the AGC for signs of RFI.
So when all the hubbub came up about spoofers a couple years back, I tried to flag the question — why be concerned about this? AGC can tell when more power is coming in the frequency band and thus flag RFI or spoofing is happening. So spoofing is no more of a threat than simple jamming, should one be concerned about it and make a relatively small effort to check for it.
I was quite impressed with the spoofer design Humphreys/Psiaki/Ledvina came up with (“Straight Talk on Anti-Spoofing,” January 2011, and “Assessing the Spoofing Threat,” January 2009). Quite neat, needs very little additional energy with the lift and carry-off approach. But also very hard to leverage for any dynamic case where the victim receiver did not want to be spoofed (spoofing a dynamic receiver with the approach? Doable, but really hard, and would still inject more RF energy). So it left the threat, in my mind, to those who are being monitored and want to spoof their device: very small subset — the fisherman in illegal waters, the prisoner with ankle monitoring. This is the hardest detection case, but I am still fairly confident AGC can work here.
Main motivation for the article: I was troubled that I did not see the need for folks to be up in arms any more about spoofing than plain old jamming.
Again, my premise: in the great majority of cases spoofing is easily detected using technology already in a majority of receivers, making it no worse than jamming, and the harder cases should still be detectable with additional effort/sensors. But it is important for all to remain vigilant, as these AGC-based techniques do need to be implemented/leveraged to avert the spoofing threat — and Humphreys/Psiaki/Ledvina deserve credit for bringing this potential to light. Even with successful spoofing detection it will appear as much less sophisticated jamming, not allowing the receiver to obtain position/time information.
So that is why I worked with the Swedes to try and show this and get that message out. It would have been great to test with one of the more sophisticated jammers (perhaps will have a chance to do so with an upcoming test), but I did not have one, so we just did simple repeater jamming.
I am glad Javad is preaching the same message. It would be great to see him to more widely disseminate that message and put much of these concerns to rest.
Regarding the video: Thanks, Javad. Really some nice features. I need to get a TRIUMPH-VS or two here at Colorado University to work with. Quite curious as to the sensitivity of the AGC. But the receiver has a great feature set!
One quick comment. In the video where you tested the RX with the jammer — I might go back and qualify that indicated you did the test under controlled/allowed conditions. I recall we published an GPS RFI test back about 10 years ago, and we had some official inquires for more details on the testing and why we were broadcasting in the GPS band. No idea how/where you did your testing (assuming 746th Jamfest or similar), but unless you state otherwise, it might bring some unwelcome attention.
By Holly Borowski, Oscar Isoz, Fredrik Marsten Eklöf, Sherman Lo, and Dennis Akos
A component of most GPS receiver front-ends, the automatic gain control (AGC) can flag potential jamming and spoofing attacks. The detection method is simple to implement and accessible to most GPS receivers. It may be used alone or as a complement other anti-spoofing architectures. This article presents results from a baseline AGC characterization, develos a simple spoofing detection method, and demonstrate the results of that method on receiver data gathered in the presence of a live spoofing attack.
Growing reliance on GNSS also creates the need to defend against those with the ability to exploit its weaknesses. Specifically, GNSS signal spoofing is recently a growing concern, as an effective spoofing attack can fool a GNSS receiver into producing erroneous navigation and timing information. Although applicable to many GNSS, GPS will be used as the example.
One example of spoofing seen recently in the popular press was the Iranian claims of bringing down a U.S. unmanned aircraft via a GPS spoofing attack. Although this may be unfounded given the complexity required, spoofing attacks to autonomous vehicles are emerging threats. A second hypothetical example is a fisherman whose location is monitored using GNSS may be motivated to use spoofing, such that illegally fishing in protected waters is not detetcted, increasing profits.
GPS signals received by a traditional hemispherical antenna are below the thermal noise floor, a physical constant dependent only on temperature. Although multiple signals are transmitted at low power in the same frequency band, they can be acquired and tracked using code-division multiple-access (CDMA). However, low signal power also makes GPS systems vulnerable to intentional radio-frequency interference (RFI) and the more sophisticated spoofing.
Spoofers range from simple to sophisticated. For example, a simple spoofer may be built from a GPS repeater (known as meaconing) by simply using it to rebroadcast signals at a higher power than the authentic GNSS signals. Receivers close enough to these spoofers then acquire and track the stronger spoofed signal, producing an erroneous position/timing solution. In this case, a position jump is likely to occur in the victim receiver’s reported solution as it transitions from the true signals to the spoofed signal, alerting the user of a potential spoofing attack. Somewhat more complex than a simple repeater would be to broadcast signals from a GPS simulator, which would enable a threat with more control over the signal-to-noise ratios as well as the resulting position. Finally, a very sophisticated spoofing attack first introduced by Humphreys , et al. in 2008 may be implemented by placing a spoofer near the receiver, so that it can correctly align its transmitted false signals to the authentic ones seen by the victim receiver. The spoofer then gradually increases the power of its transmitted signals, eventually capturing the receiver. After the receiver begins tracking the false signals, the spoofer can gradually deviate its transmitted signals from the authentic ones, causing the victim receiver to produce false navigation and timing information.
Effective methods have been developed for distinguishing spoofed from authentic GPS signals with a summary most recently presented in a January 2012 GPS World article by Wesson, Shepard, and Humphreys. In short, these methods can be divided into cryptographic and non-cryptographic spoofing detection schemes.Unfortunately the presented methods are not readily available to the majority of current standalone GPS receivers and can be quite computationally expensive.
We suggest a method using the Automatic Gain Control (AGC), a component of most GPS receiver front ends, to flag potential jamming and spoofing attacks. The proposed spoofing detection method is simple to implement and accessible to most GPS receivers as a measure of confidence in the authenticity of received and tracked signals. It may be used by itself on receivers without other spoofing detection capabilities or to complement other anti-spoofing architectures.
AGC Background
GPS receivers consist of an analog portion and a digital portion: the analog signal, comprised nominally of GNSS signals and white Gaussian thermal noise, is received, amplified, down-converted, and filtered, then converted to a digital signal for processing within receiver acquisition and tracking loops. During signal sampling and quantization by the Analog to Digital Converter (ADC), some quantization losses will occur. These losses depend on the ratio between the ADC’s maximum quantization threshold, L, the number of bits utilized, and the incoming signal standard deviation, σ.
This is where the AGC comes in. In a typical GPS receiver, it sits between the analog portion of the front end and the ADC, as shown in Figure 1. The AGC acts as a variable gain amplifier, adjusting the power of the incoming signal to optimize the L/σ ratio, minimizing quantization losses. This assumes the receiver is a multibit design which is the norm for GPS receivers today.
FIGURE 1. Typical GPS receiver architecture.
When the GPS band is interference free, which should be the norm due to restrictions on emissions in and near the band, the AGC gain depends almost exclusively on thermal noise, since the received GPS signal power level is below that of the thermal noise floor. Since this thermal noise is a physical constant with minimal fluctuation resulting from the span of temperature variations on earth, the primary role of the AGC is to adjust to different active antenna gain values. However, in the unlikely presence of interference the AGC gain drops in response to increased power in the GPS band. Thus, AGC levels may be used to indicate potential interference. Moreover, AGC levels are expected to respond to the interference before receiver performance is compromised, so useful flags may be established, which could provide a warning before a problem exists.
Baseline AGC Data Gathering
Prior to the spoofer experiment, baseline AGC data were collected for 72 hours using both a survey grade and a mass market receiver. The GPS antenna was located on the roof of the Engineering Center at Colorado University (CU) in Boulder (Figure 2).
FIGURE 2. Antenna location for baseline AGC data collection.
Currently there is no standardization among GPS receivers for AGC reporting units or the measurement itself. Most receivers offer such a metric but it is likely that each needs to be interpreted individually. However, in general this metric provides an indication of the relative gain of the amplifier within the receiver. Should the active antenna be disconnected (loss of gain), the AGC metric will increase showing the increase in internal gain needed to compensate for the loss of the active antenna amplification of the thermal noise floor. Should additional energy be detected in band, the internal gain will decrease accordingly.
Baseline AGC levels from the survey grade and mass market receiver are shown in Figures 3a and 3b, respectively. The survey grade receiver AGC measurement was more sensitive to changes in the nominal environment; these results will be discussed later in more detail. The mass market receiver provided a much more consistent measure for the entire test period. Interestingly, there was one brief yet noticeable drop in AGC metric from the survey grade and mass market receivers at approximately hour 59 into the collection. Its magnitude was not overly significant, as it did not have an impact on the availability or accuracy of the position solution measurements from either receiver. It is assumed that this is a brief RFI event that occurred during the collection, perhaps from an illegal personal privacy device (PPD) in a vehicle on the nearby road.
FIGURE 3A. Nominal AGC values for survey-grade receiverFIGURE 3B. Nominal AGC values for mass-market receiver.
This RFI event outlier was excluded from the computed mean and standard deviation from the receivers’ AGC data. As shown in Figure 4a, the mean reported AGC gain was approximately 2510, and its standard deviation was approximately 99. For the mass market receiver, the data shows clear evidence of quantiztion in Figure 4b. Here the mean AGC level in this test was approximately 5432, standard deviation was approximately 64. Again, the absolute measures mean little and cannot be compared from various vendors of receivers. It is, of course, possible to calibrate individual receivers and obtain an absolute measure should this be required for a specific application. During the baseline data collection receiver reported position solutions were nominal, with deviations on the order of 2-3 meters in east and north directions, and 5-6 meters in the vertical direction for both receivers. A Gaussian curve was fit to the AGC data and although the data may not be well modeled by a Gaussian, a 2x standard deviation will be used to establish a quick initial flag to indicate potential spoofing/interference.
FIGURE 4A. Histogram of survey-grade AGC data.FIGURE 4B. Histogram of mass-market AGC data.
AGC Reactions to Live Spoofing
Live RFI or spoofing experiments are quite difficult to conduct due to the global and national legislation protecting the GPS frequency band. Any such experiments tend to be conducted with significant advanced planning and in locations where the testing will have no impact on any system or application which uses GPS outside the test range. Thus, we are grateful to have been able to test the AGC detection of live transmissions in the GPS band. This was done at the Robotförsökplats Norrland test range in Northern Sweden (Figures 5A, 5B, 5C) with the support of the Swedish Defense Research Agency.
FIGURE 5A Robotförsökplats Norrland test range in Northern Sweden (green outline is the test range and red outline is the flight restriction area, approximate 130 x 70 kilometers).FIGURE 5B Repeater spoofer transmission antenna.FIGURE 5C. Test vehicle
Dynamic GPS receiver measurements (position and AGC) from both the survey grade and mass market receivers were logged in the presence of repeater spoofing. Tests performed involved installing GPS antennas on the rooftop of a vehicle and driving along a 4km stretch of road toward (and away) from a hill top repeater spoofer transmission antenna while logging AGC levels and receiver positions from various GPS receivers. The data from both the survey grade and mass market receivers, used in the baseline collections, will be used here. The repeater spoofer source and transmissions antennas and the road (color shaded by elevation) used to go to/from the spoofer transmission antenna are shown in Figure 6.
FIGURE 6. Google Earth view of testing environment.
The baseline receiver data was used to establish the change in AGC levels necessary to flag potential jamming, spoofing, or unintentional RFI. In order to implement the AGC flag proposed in this paper, a known fixed RF chain (antenna, cable, and front end) would be calibrated in a known non RFI environment and the mean AGC would be established. Given the baseline data collection, a mean value has been established and a 2σ threshold is set as the RFI/Spoofing flag for each receiver. When the AGC drops below this flag, the resulting position/time solution should not be trusted.
In Figure 7 the measurements (AGC metric and survey receiver reported position) are shown as a function of time as the receiver is driven toward the spoofer transmission antenna. Under nominal conditions (no RFI or spoofing) one would expect a constant “safe” AGC value as well as a smooth gradual change in the reported XYZ coordinates (as the drive maintained a constant speed on the road for the duration of the test). However, as expected, due to the additional power in the GPS band, the AGC gain drops as the receiver gets closer to the repeater spoofer. At approximately 138 seconds the receiver fails to report a position and this continues for the next 30 seconds as the vehicle progresses toward the spoofer transmission antenna. At approximately 168 seconds, the survey receiver is captured and reports the fixed position of the spoofer source antenna despite continually moving toward the transmission source. Although the loss of lock and position jump could be utilized as a flag for spoofer detection, the AGC metric here clearly shows the additional power in the band prior to any corruption of the reported GPS receiver position. If the previously computed threshold is used here, the 2σ trigger occurs as the AGC level begins to drop, significantly before any loss of lock or any change in the position solution resulting from the repeater spoofer.
FIGURE 7. Survey-grade RX AGC/position during drive toward spoofer.
Figure 8 shows this same data for the mass market receiver with similar observations. First, and most importantly, the AGC metric can be used here as a flag well before any corruption of the resulting position solution. The resulting position solution as the receiver becomes “captured” by the spoofer is odd, not going directly to the repeater source antenna location but also not maintaining the true position either. Likely a result of the navigation filtering coupled with individual range measurements transitioning from the true satellite measurements to that from the repeater spoofer. Nevertheless, it is clear from the AGC metric that the receiver output should not be trusted , well before any misleading information is provided.
FIGURE 8. Mass-market RX AGC/position during drive to spoofer.
Figure 9 shows AGC levels and reported positions for the survey grade receiver as it is driven away from the repeater spoofer. At the beginning, the receiver is already captured by the spoofer and reports a false fixed position solution even while the vehicle is moving. While in close proximity to the spoofer, the AGC levels are low, attempting to compensate for the additional power in the GPS band. This would be an obvious flag that the resulting position cannot be trusted (all measurements to the left of the threshold are considered untrustworthy). As the receiver is driven away and exits the spoofer’s region of influence, power levels in the GPS band return to normal, the AGC reacts accordingly by increasing its gain, and the receiver begins to report accurate position solutions.
FIGURE 9. Survey-grade RX AGC/position during drive from spoofer.
Figure 10 shows this same data for the mass market receiver with similar observations. The AGC metric can be used as a flag indicating the position solution cannot be trusted until the receiver is well outside the range of the repeater spoofer. In this test, the AGC level does not return to a level within the established threshold, indicating that GPS solutions should not yet be trusted. This is likely a result of an overly conservative threshold (perhaps from the poor fit of data which is not well represented by a Gaussian) or perhaps hysteresis or smoothing in the AGC metric for this receiver.
FIGURE 10. Mass-market RX AGC/position during drive from spoofer.
These cases are representative of similar repeater spoofing tests we performed: in all cases this trigger identified potential interference well before the receiver reported false positions with the simple triggers established.
Improvements and Optimizations
These results do demonstrate the power of AGC to detect deception in GPS transmission, rendering these spoofers no more of a threat than the much less sophisticated jammers. However, the spoofer used in this testing was of a simple nature — a repeater spoofer.
The challenge would be to utilize such an approach to detect the most sophisticated spoofing attacks. This should be possible as the underlying thermal noise floor is a physical constant and in order for a receiver to be spoofed additional energy must enter the RF chain which, again, should be detectable. The optimization will come in via establishing thresholds – similar to GPS signal acquisition/detection. One will not want to set such a loose threshold such that frequent false alarms provide little confidence in the resulting position/time solution. Likewise one would not want to establish threshold so loose that the more sophisticated spoofing attacks would be successful. The key is the calibration and assessment of the underlying AGC measurement.
Recall the variation observed in the survey grade receiver data. Was this truly random noise that one must overbound as was done to establish the threshold for the experiments in this paper? And why were the noise levels so different for the baseline AGC collections in the survey grade and mass market receiver? We try to address both of these questions to provide a bit of insight into the advantages and shortcomings of the AGC metric.
First, the AGC measurement across receivers is not equal. In comparing these two receivers, the survey grade receiver has a much higher resolution measurement than that of the mass market receiver. This is obvious from the baseline data which showed little deviation from specific quantized levels in the mass market AGC metric. So although the great majority of GPS receiver already have/report their AGC measurement it may not be of sufficient fidelity for the most sophisticated spoofer detection.
Second, high resolution provides little benefit in a noisy measurement. So there is a pending question if there is a source for the variation in the AGC measurement for the survey grade receiver during the 72 hour baseline data collection – or was it simply a noisy measurement. Past work in this area led to the association of ambient temperature and the AGC measure, but perhaps not in the way one would initially think. Yes, the thermal noise level is dependent on temperature (from kTB), as well as bandwidth and Boltzmann’s constant, but this is really antenna temperature and in this case the correlation is with ambient temperature.
The baseline AGC levels were compared to changes in ambient temperatures in Boulder during testing to determine if observed fluctuations were related to temperature. The weather data were gathered in Broomfield, approximately 10 miles from CU; thus plotted temperatures do not exactly reflect the air temperature at the antenna. However, the data do reflect a correlation between approximate ambient temperature and AGC gain, shown in Figure 11a, b, and c.
FIGURE 11A. AGC measure (survey-grade RX) and ambient temperature, Day 1.FIGURE 11B. AGC measure (survey-grade RX) and ambient temperature, Day 2.FIGURE 11C. AGC measure (survey-grade RX) and ambient temperature, Day 3.
Why does this correlation exist? Why, when the temperature increases, must the gain of the receiver also increase? That may initially appear to be counter intuitive in that one may think higher temperature would result in higher thermal noise. Again, it is important not to confuse antenna temperature and ambient temperature which is the basis for the thermal noise floor. Why then must the receiver provide more gain with higher ambient temperatures? The validated hypothesis is that the antenna is an active design with an internal low noise amplifier. The gain, or really efficiency, of this amplifier is dependent on its temperature (and it is quite small, on the order of a dB). So as the ambient temperature increases the efficiency of the amplifier in the antenna decrease so the receiver is required to put more gain into the RF chain to accommodate.
This temperature correlation is an attempt to illustrate the power of the AGC metric and its potential sensitivity for detection. Other triggering methods, such as comparing current AGC levels with a moving average of previous values, could be implemented depending on desired performance. If such changes can be incorporated and/or calibrated out, we expect the most sophisticated spoofers could be detected coupled with a low false alarm rate.
Conclusion
A trigger based on the AGC, a measure available in a majority of GPS receivers, has been proposed that indicates the presence of potential signal spoofing prior to a compromise in receiver positioning. This proposed trigger is an effective tool for current GPS receivers to establish a low computational complexity measure of confidence of the reported position solution, and may complement other spoofing detection methods. The triggering mechanism may be adapted according to desired sensitivity in AGC changes, thereby either reducing the false alarm rate, or providing a conservative flag of potential RFI. Upon receiving such a flag, other navigation sources may be consulted to determine position, or the trust in the GPS solution may simply be lowered. Thus spoofing would be no more of a threat to satellite navigation/timing receivers than the much less sophisticated jamming.
Acknowledgments
Our thanks to the Robotförsökplats Norrland test range in Northern Sweden and the Swedish Defense Research Agency, particularly Peter Johanson and Mickael Alexandersson (who provided many of the photographs) for supporting the experiment.
Holly Borowski is a Ph.D. student working in the Research and Engineering Center for Unmanned Vehicles at the University of Colorado-Boulder. Her research involves unmanned vehicle path planning for information gathering in uncertain environments.
Oscar Isoz is a Ph.D. student at Luleå University of Technology. He has studied GPS interference detection and localization and is now focusing on radio occultation.
Fredrik Marsten Eklöf is the project manager for NAVWAR research at the Swedish Defense Research Agency.
Sherman Lo is a senior research engineer at the Stanford GPS Laboratory. He is the associate investigator for the Stanford University efforts on the FAA evaluation of alternative position navigation and timing (APNT) systems for aviation.
Dennis Akos is an associate professor with the Aerospace Engineering Sciences Department at the University of Colorado as well as a consulting associate professor with Stanford University and a visiting professor with Luleå University of Technology.
By Ryan H. Mitch, Ryan C. Dougherty, Mark L. Psiaki, Steven P. Powell, Brady W. O’Hanlon, Jahshan A. Bhatti, and Todd E. Humphreys
GPS jamming is a continuing threat. A detailed understanding of how the available jammers work is necessary to judge their effectiveness and limitations. A team of researchers from Cornell University and the University of Texas at Austin reports on their analyses of the signal properties of 18 commercially available GPS jammers.
INNOVATION INSIGHTS by Richard Langley
GPS IS AT WAR. It is a major asset for United States and allied military forces in a number of operating theaters around the world in both declared and undeclared conflicts. But GPS is at war on the domestic front, too — at war against a proliferation of jamming equipment being marketed to cause deliberate interference to GPS signals to prevent GPS receivers from computing positions to be locally stored or relayed via tracking networks.
There have been many notable examples of deliberate jamming of GPS receivers. Many more likely go undetected each day. In 2009, outages of a Federal Aviation Administration reference receiver at Newark Liberty International Airport close to the New Jersey Turnpike were traced to a $33, 200 milliwatt GPS jammer in a truck that passed the airport each day. The driver was reportedly arrested and charged. In July 2010, two truck thieves in Britain were jailed for 16 years. They used GPS jammers to prevent the trucks from being tracked after the thefts. And in Germany, some truck drivers have been using jammers to evade the country’s GPS-based road-toll system.
The U.S. and some foreign governments have enacted laws to prohibit the importation, marketing, sale or operation of these so-called personal privacy devices. Nevertheless, a certain number of jammers are in the hands of individuals around the world and they continue to be available from manufacturers and suppliers in certain countries. So, GPS jamming is a continuing threat both at home and abroad and a detailed understanding of how the available jammers work is necessary to judge their effectiveness and limitations. This information will also help in developing countermeasures that could be incorporated into GPS receivers to limit the impact of jammers.
Jammers constitute an enemy force, and as the Chinese General Sun Tzu stated in the Art of War more than 2,000 years ago, battles will be won by knowing your enemy. In the last verse of Chapter Three, he states:
So it is said that if you know your enemies and know yourself, you can win a hundred battles without a single loss.
If you only know yourself, but not your opponent, you may win or may lose.
If you know neither yourself nor your enemy, you will always endanger yourself.
In this month’s column, a team of researchers from Cornell University and the University of Texas at Austin reports on their analyses of the signal properties of 18 commercially available GPS jammers. The enemy has been exposed.
The Global Positioning System has become increasingly incorporated into civilian infrastructure. The increase in GPS-integrated systems has caused a proportional increase in the vulnerability of these systems to jamming and interference. The interests of individuals or groups willing to break the law may be served by interfering with the normal operation of GPS-enabled systems. As a result, in recent years many GPS jamming devices have become available for purchase over the Internet. These relatively cheap devices, some costing less than an inexpensive GPS receiver, pose a significant risk to the normal operation of many systems reliant on GPS.
Many types of intentional radio frequency (RF) interference exist, including tones, swept waveforms, pulses, narrowband noise, and broadband noise. There are a number of methods for mitigating the effects of jamming and interference, and additional methods exist to locate the sources of the interference. Mitigation and location methods can be improved by use of a priori information about the interference source. This article provides such a priori information for a set of jammers and assesses their threats. Its results are based on two tests. The first test records raw RF data from a selection of jammers and analyzes it using fast Fourier transform (FFT) spectral methods. The second test evaluates the effective range of a subset of the GPS jammers using a commercial off-the-shelf (COTS) receiver.
The article presents results based on 18 civil GPS jammers. There are other types of GPS jammers for sale that were not tested. Furthermore, civil jammer behavior and design is likely to evolve over time. In this article, we draw conclusions based on only the jammers that we tested.
Overview of Civil GPS Jammers
Devices that claim to jam or “block” GPS signals are widely available through a number of websites and online entities. The cost of these devices ranges from a few tens of dollars to several hundred. Their price does not seem to correlate with the claims made by the purveyors of these devices regarding the features and effectiveness of the product in question. Effective ranges from a few meters to several tens of meters are advertised, but the actual effective ranges are significantly greater. Claimed and true power consumptions range from a fraction of a watt to several watts.
We grouped the GPS jammers we examined in this article into three categories based on morphology. The first is a group of jammers designed to plug into an automotive 12-volt auxiliary power supply outlet (cigarette lighter socket); this class of jammer is referred to in the remainder of this article as Group 1. The second category contains those jammers that are both powered by an internal rechargeable battery and that have an external antenna connected via an SMA connector; these jammers are referred to as Group 2. The jammers in Group 3 are disguised as cell phones; they have batteries but no external antennas. Figure 1 shows an example of a device from each of Groups 1–3.
Figure 1. Three jammers are depicted, from left to right Jammers 1, 5, and 15 from Groups 1, 2, and 3, respectively.
All 18 jammers broadcast power at or near the L1 carrier frequency, six broadcast power at or near the L2 carrier frequency, and none broadcast power at or near the L5 carrier frequency. Some of the jammers also broadcast power at frequencies outside of the GPS bands, typically cellular phone or Wi-Fi bands, but those frequencies are outside the scope of this article. Results in this article are for the current power levels broadcast in the GPS L1 and L2 bands, but examination of power levels in non-GPS bands indicate that many of these devices could be easily modified to broadcast much more power in the GPS bands.
The jammer antennas have been removed in most of the testing for this article, but their use in a real-world scenario will modify the jammer behavior. The antennas used by Group 1 and Group 2 jammers are loaded monopole antennas, while those used by the Group 3 jammers are electrically short helical antennas that have approximately the same gain pattern as the loaded monopoles. These antennas broadcast linearly polarized radiation, as opposed to the right-hand circular polarization of GPS signals. The polarization mismatch will cause some loss in received power at a right-hand circularly polarized GPS receiver antenna.
Jammer Signal Characteristics Test
The goal of the first set of tests was to record complex samples of the jamming signals and to derive the jammer characteristics from these data. A two-step procedure was used to collect useful data. The first step used a spectrum analyzer to find the frequency range of the jamming signal near L1 and L2. The second step used this frequency information to set the center frequency of a general-purpose RF digitization and signal storage device with a 12-drive RAID storage array. Offline analyses were then conducted on the recorded data.
The test procedure was as follows. For the first two groups, the jammer was placed inside an RF-shielded test enclosure shown in Figure 2, to prevent any signal leakage, and its SMA signal output port was connected to the relevant data collection device using a shielded coaxial cable. The signal had to pass from the inside to the outside of the RF enclosure using the built-in coaxial feed-through. Note, therefore, that no jammer signal radiation occurred for Group 1 and 2 jammers even inside the RF enclosure. The enclosure was used primarily as a precaution.
Figure 2. RF-shielded test enclosure. Jammers were operated inside the enclosure to prevent emission of their RF signals.
None of the Group 3 jammers had external antennas. Therefore, they were allowed to radiate in the RF enclosure using their internal antennas. To capture the signal, a receiving patch antenna with active amplification was placed in the RF enclosure, and the antenna output was connected to the relevant RF recording device via the enclosure’s coaxial feed-through. The jammer and receiving antenna were separated by about 14 centimeters. The patch antenna field-of-view center was pointed directly at the jammer. The jammer was oriented such that the axis of its helical antenna was pointing perpendicular to the line from the receiving antenna to the jammer.
Jammer Signal Characteristics Test Results
Although 18 jammers were tested, only a representative subset is discussed here. The signals were analyzed using FFT spectral methods and measurements of in-band power. Figure 3 displays the results of this analysis for a typical jammer from Group 1.
The top plot of Figure 3 graphs frequency on the vertical scale versus time on the horizontal scale. The bottom plot graphs power on the vertical scale versus time on the horizontal scale. Each vertical slice of the recorded RF data plot is a single FFT frequency spectrum. It covers 62.5 MHz centered on the L1 band and has a resolution of approximately 1 MHz. The relative power spectral density of each slice is indicated by color. The time axes of both plots span 80 microseconds.
Figure 3. Jammer 4 power spectral density versus time, with color indicating relative power (top plot) and power versus time in a 62.5-MHz band centered at the L1 carrier frequency (bottom plot).
The upper plot of Figure 3 is clearly that of a linear frequency modulation interspersed with rapid resets — a series of linear chirps. Each sweep takes nine microseconds and spans a range of about 14 MHz. This range includes the civil L1 GPS band. The center frequency is depicted by the horizontal red line in the top plot. The power is about 20 milliwatts and remains fairly constant over the sweep.
Three of the Group 1 jammers appeared to be of the same model and one was slightly different. All of them broadcast power only at L1. Despite their similarities in external appearance, the three jammers of the same model exhibited markedly different signal properties. These differences will be presented later in terms of tabulated frequency modulation characteristics and in-band power levels.
One of the Group 2 jammers was unusual in two respects, as illustrated in Figure 4. This figure plots the L2 spectrum whose center is indicated by the horizontal red line in the top plot. The first obvious difference from Figure 3 is that the frequency modulation in time is a triangular wave instead of a sawtooth. Additionally, the modulation frequency is very high in comparison to all the other jammers; its period is only about 1 microsecond. Note that the horizontal scale of this figure spans only 8 microseconds, that is, 10 times less than in Figure 3.
The other Group 2 jammers tended to broadcast sawtooth frequency modulations as in Figure 3. They all broadcast jamming power at L1. Of course, the jammer depicted in Figure 4 broadcast power at L2 as well. Only one other Group 2 jammer had L2 jamming capability. Two of the jammers suffered from poor design of their L1 frequency modulation schemes: they placed no jamming power closer than 4.6 MHz away from the nominal L1 carrier frequency.
Figure 4. Jammer 10 power spectral density versus time (top plot), with resolution of about 3 MHz and color indicating relative power, and power versus time (bottom plot) in a 62.5-MHz band centered at the L2 carrier frequency.
Another unusual frequency modulation was encountered in a Group 3 jammer. The L1 results for this jammer are depicted in Figure 5. It seems to show a linear-type frequency modulation distorted by sudden frequency jumps, as seen in the upper plot of the figure. Despite its irregular nature, this waveform maintains its jamming efficacy.
Figure 5. Jammer 15 power spectral density versus time, with color indicating relative power (top plot) and power versus time in a 62.5-MHz band centered at the L1 carrier frequency (bottom plot). Note the additional frequency jumps in the sweep pattern.
All four jammers in Group 3 broadcast power at L1, L2, and additional frequency bands. Three of the jammers appeared to be of the same model, while a fourth was different. Jammers in this group normally use a standard sawtooth frequency modulation. Figure 5 represents the exception.
Additional types of distortion from the nominal sawtooth frequency modulation have been observed in some of the jammers. Discussion of each additional variation has been omitted here for the sake of brevity. See the authors’ companion conference paper, listed in the Further Reading sidebar for more details.
Frequency Modulation Periods and Ranges. The frequency modulation characteristics of all 18 jammers are listed in Table 1. The first two columns identify each jammer by group number and jammer number. The sweep period and frequency range for the L1 sweep are shown in the third and fourth columns. The two numbers in the fourth column are the upper and lower bounds of the jamming tone sweep range in megahertz above and below the L1 carrier frequency. For instance, the period between resets of the linear frequency modulation of Jammer 1 is 26 microseconds and the tone sweeps from 25.4 MHz below L1 to 31.3 MHz above L1. The fifth and sixth columns are analogous to the third and fourth columns, but for jamming in the L2 band, with entries only for those jammers that broadcast in this band.
The sweep periods were calculated using four contiguous sweeps from near the beginning of each data set and another four sweeps 30 seconds later. The sweep periods exhibited standard deviations of less than 1 microsecond. The reported sweep ranges are the minimum and maximum frequency observed in the same data used to calculate sweep periods. The sweep ranges changed by as much as 2.5 MHz between sweeps.
One can make a number of observations based on Table 1. First, as mentioned previously, jammers which appeared to be of the same model exhibited significant variations in sweep behavior. For instance, Jammers 1, 3, and 4 appeared to be of the same models, yet Jammer 1 has a sweep period nearly three times as long as Jammers 3 and 4. It also has a sweep range four times as wide. Second, some individual jammers were exceptional. For example, Jammer 10 has a sweep period nearly 10 times shorter than any other jammer, and its L1 sweep range exceeded the 62.5 MHz bandwidth recorded by the RF sampling equipment. The sweep range of Jammer 16 also exceeded the sampled bandwidth, though its sweep period was not exceptional. Jammers 12 and 13 do not sweep through the L1 carrier frequency, as indicated by the negative signs in the fourth column of Table 1. Jammer 17 suffered from the same problem, but for both L1 and L2.
Table 1. Frequency characteristics of GPS jammers.
In-Band Jammer Power Levels. The GPS signal is spread over several megahertz by the pseudorandom noise (PRN) codes that modulate the L1 or L2 carrier waves. Different GPS receivers exploit this spreading by processing more or less of the full bandwidth. The RF power of the GPS jamming signal within different bands centered at L1 is an important concern because different receiver RF front-end bandwidths may allow different total amounts of jammer power to pass through them. For example, a C/A-code receiver with a 2-MHz RF front-end bandwidth will pass 10 dB less jammer power than will a 20-MHz bandwidth RF front end of a P(Y)-code receiver if the jammer in question spreads its power evenly over the 20-MHz band centered at the L1 carrier frequency. If the jammer power is concentrated in a 2-MHz range, however, then both receiver front ends will pass equal total jammer power.
To determine the power in different bandwidths, the raw data were filtered to pass only the bandwidths of interest. The data were digitally filtered using a finite input response (FIR) equiripple band-pass filter, providing 60 dB of attenuation at 2 MHz past the roll-off frequency. Note that a real GPS receiver will probably not have analog filter frequency roll offs as sharp as those used in our work.
Table 2 presents the results of this study. It reports power measurements averaged over 15 milliseconds in three different bandwidths: 2, 20, and 50 MHz, all centered at the nominal L1 or L2 carrier frequency. The table also indicates whether each jammer broadcasts power at frequencies other than the GPS frequencies. No power data is given for the non-GPS frequencies because they are not the focus of this article.
A number of observations can be drawn from Table 2. First, there is a large variation in broadcast power among jammers, with Group 2 jammers being on average more powerful. Specifically, Jammer 11 is the most powerful, broadcasting more than a watt in the GPS bands! Second, jammers of the same model broadcast roughly the same amount of power despite the differences in sweep behavior mentioned above. For instance, Jammers 1, 3, and 4 broadcast roughly the same amount of power, and Jammers 15, 17, and 18 do so as well. Third, the poor frequency plans of Jammers 12, 13, and 17 are apparent in the power measurements. These jammers did not sweep a tone through L1 or L2, and effectively no power was measured in the 2-MHz band centered on the L1 or L2 carrier frequencies.
Table 2. Jammer power levels in frequency bands of interest.
Although not shown in the tables, Jammers 12, 13, and 14 exhibited periodic variations in broadcast power. Their peak-to-peak power varies as a sawtooth wave with period approximately 15 milliseconds and amplitude on the order of 10 percent of the total broadcast power.
The measured power values in Table 2 for jammers of Groups 1 and 2 were derived using direct cable connections. Thus, they report the total power into the transmitting antenna. The power received at a GPS receiver’s RF front end will be affected by any antenna inefficiency, the antenna gain pattern, and the space loss, among other effects.
In contrast, the power reported for Group 3 jammers includes all of those effects for the given test configuration. Specifically, the receiving antenna picked up only a fraction of the radiated power because the receiving antenna subtended only a fraction of the 4π steradians around the transmitting antenna. Also, the power that was received was boosted by the receiving antenna’s active low-noise amplifier. Finally, the radiation environment inside the RF enclosure is uncertain, and the enclosure constrains the separation of the antennas to be on the order of one wavelength, thereby giving rise to near-field effects. Therefore, the indicated power levels for the Group 3 jammers do not constitute measures of absolute power. The tabulated power levels for Group 3 jammers are included primarily for purposes of comparison within the group.
Maximum Effective Range Test
The goal of the second set of tests was to determine the effective ranges of the GPS jammers when interfering with a COTS receiver. A constraint on this test was that it could not broadcast harmful radiation to the environment. Ideally, the jammers and a receiver would be taken outside and tested with all antennas attached. However, this type of test would possibly interfere with other equipment and is illegal in the United States. A close approximation to this scenario can be constructed using a high-fidelity simulated GPS signal, a commercial GPS receiver, a GPS jammer in an RF enclosure, and a set of attenuators to simulate various distances. The setup for the second test is shown in the block diagram of Figure 6.
Figure 6. Block diagram of the test procedure and equipment used to determine the GPS jammers’ effective ranges.
Each range test involved running a GPS jammer inside the RF enclosure, passing its signal through the enclosure’s coaxial feed-through, and electrically combining that signal with a GPS simulator signal. The combined signal was then input to the antenna connector of the COTS GPS receiver. Attenuators were inserted in-line with the GPS jammer before it arrived at the combiner. Using this setup, two tests were conducted. The first test determined the jamming signal attenuation level necessary for continuous tacking. The second test determined the attenuation level necessary to allow the receiver to acquire the simulator signal within five minutes from a cold start. As will be shown in the next section, the resulting attenuation values can be converted into effective ranges of the jammers if one makes certain reasonable assumptions about transmitting and receiving antenna gains and path losses.
The simulator power level was set so that the power into the receiver matched that which it would receive from the actual GPS constellation through a typical roof-mounted passive patch antenna. This power level was checked by comparing the resulting C/N0 for all of the visible satellites when using the simulator against typical C/N0 values when using the roof-mounted antenna. Typical levels reported by the receiver were C/N0 = 43 dB-Hz.
Maximum Effective Range Results
The jamming signal attenuation levels resulting from the two tests are presented in Table 3. These tests were conducted on one jammer from Group 1 and three jammers from Group 2. No jammers from Group 3 were included because of the broadcast power uncertainties discussed in connection with Table 2.
The attenuation values by themselves are not very useful, but they can be converted into distance measurements with a number of assumptions. The ratio of received power to transmitted power can be expressed as
where Gt is the transmitting antenna gain, Gr is the receiving antenna gain, and the term (λ/(4πr))2 is the path loss for radiation of wavelength λ over the distance r. This equation can be solved for the range, r:
The quantity in this formula that equates to the total electrical jammer attenuation produced in each bench-top test is the product of the antenna gains and the ratio of transmitted to received power: Gt Gr(Pt ⁄Pr ).
To convert the results in Table 3 into effective ranges, the transmitting and receiving antennas can be assumed to be perfect, lossless, isotropic radiators. In this case, the gain terms, Gt and Gr , are unity. Each measured attenuation value can be converted to the unitless ratio, Pt ⁄Pr , and substituted into the equation for r. Use of this equation at the L1 carrier frequency yields the ranges in Table 4. If the range between the jammer and receiver is less than that listed in the third column of the table, then the jammer will prevent the receiver from tracking and acquiring. If the range is less than that listed in the last column but more than that listed in the third column, the receiver will continue to track but be unable to acquire. The effective ranges are at least an order of magnitude greater than the claims of the jammers’ purveyors.
Table 3. Jammer attenuation levels needed to allow COTS GPS receiver acquisition and tracking.Table 4. Ranges of jammer effectiveness against COTS GPS receiver when using lossless isotropic antennas.
Distinct scenarios with different antennas can be approximately tested using Table 3 and the range equation. For example, a patch antenna that is oriented perfectly skyward might have 10 dB of attenuation at very low elevation angles, and the jammer might have an additional 3 dB loss due to polarization mismatch. In this scenario, the effective jamming range would be factored down by 10-13/20 = 0.22. In this case, Jammer 11’s tracking interference range would be reduced from 6.1 kilometers to 1.4 kilometers. Additional jammer signal attenuation might occur if the emissions passed through the reduced RF aperture of a vehicle’s body and windows. Such an effect could be incorporated into the range equation to determine a revised effective range.
Due to the ignored losses in the real system, it would likely be safe to assume that the effective ranges of the GPS jammers would be no greater than those listed in Table 4. The ranges could potentially be greater if a high-gain receiving antenna were aimed directly at the jamming source, or if the jamming source used a high-gain transmitting antenna aimed at the receiver. None of the jammers tested employed such an antenna.
Summary and Conclusions
This article has presented the signal properties of 18 commercially available GPS jammers as determined from two types of live experimental tests. The first test examined the frequency structures and power levels of the jammer signals. It showed that all of the jammers used some sort of swept tone method to generate broadband interference. The majority of the jammers used linear chirp signals, all jammed L1, only six jammed L2, and none jammed L5. The sweep period of the jammers is about 9 microseconds on average, and they tend to sweep a range of less than 20 MHz. Some of the jammers’ sweep ranges failed to encompass the target L1 or L2 carrier frequencies.
The second test provided an estimate of four of the jammers’ effective ranges when deployed against a typical commercial receiver. An upper bound on the effective ranges was calculated for idealized, lossless, isotropic radiating and receiving antennas with matched polarizations. The weakest of the four jammers affected tracking at a range of about 300 meters and acquisition at about 600 meters, while the strongest affected tracking at a range of about 6 kilometers and acquisition at about 8.5 kilometers.
Acknowledgments
The authors thank the U.S. Department of Homeland Security for providing interference devices for testing. This article is based on the paper “Signal Characteristics of Civil GPS Jammers” presented at ION GNSS 2011, the 24th International Technical Meeting of the Satellite Division of The Institute of Navigation, Portland, Oregon, September 19–23, 2011, where it received a best-presentation-in-session award.
Manufacturers
The tests discussed in this article used an Agilent Technologies (www.home.agilent.com) model N1996A spectrum analyzer, a National Instruments PXI-5663 RF vector signal analyzer, a Ramsey Electronics model STE3000B RF shielded test enclosure, an Antcom (www.antcom.com) model 53G1215A-XT-1 patch antenna, and a NovAtel ProPakII-RT2 GPS receiver.
Ryan H. Mitch is a graduate student in the Sibley School of Mechanical and Aerospace Engineering at Cornell University, Ithaca, New York. He received his B.S. degree in mechanical engineering from the University of Pittsburgh.
Ryan C. Dougherty is a graduate student in the Sibley School. He holds a B.S. degree in aerospace engineering from the University of Southern California.
Mark L. Psiaki is a professor in the Sibley School. He received a B.A. degree in physics and M.A. and Ph.D. degrees in mechanical and aerospace engineering from Princeton University.
Steven P. Powell is a senior engineer with the GPS and Ionospheric Studies Research Group in the Department of Electrical and Computer Engineering at Cornell University. He has M.S. and B.S. degrees in electrical engineering from Cornell University.
Brady W. O’Hanlon is a graduate student in the School of Electrical and Computer Engineering at Cornell University. He received a B.S. degree in electrical and computer engineering from Cornell University.
Jahshan A. Bhatti is pursuing a Ph.D. degree in the Department of Aerospace Engineering and Engineering Mechanics at the University of Texas (UT) at Austin, where he also received his M.S. and B.S. degrees. He is a member of the UT Radionavigation Laboratory.
Todd E. Humphreys is an assistant professor in the Department of Aerospace Engineering and Engineering Mechanics at UT Austin and Director of the UT Radionavigation Laboratory. He received B.S. and M.S. degrees in electrical and computer engineering from Utah State University and a Ph.D. degree in aerospace engineering from Cornell University.
Further Reading
• Authors’ Conference Paper
“Signal Characteristics of Civil GPS Jammers” by R.H. Mitch, R.C. Dougherty, M.L. Psiaki, S.P. Powell, B.W. O’Hanlon, J.A. Bhatti, and T.E. Humphreys in Proceedings of ION GNSS 2011, the 24th International Technical Meeting of The Satellite Division of the Institute of Navigation, Portland, Oregon, September 19–23, 2011, pp. 1907–1919.
“Car Jammers: Interference Analysis” by R. Bauernfeind, T. Kraus, D. Dötterböck, B. Eissfeller, E. Löhnert, and E. Wittmann in GPS World, Vol. 22, No. 10, October 2011, pp. 28–35.
“GPS Jamming: No Jam Tomorrow” in The Economist, Technology Quarterly Special Section, Vol. 398, Issue 8724, March 12, 2011, pp. 20–21.
Modern Communications Jamming Principles and Techniques, 2nd ed., by R.A. Poisel, published by Artech House, Boston, Massachusetts, 2011.
“Jamming GPS: Susceptibility of Some Civil GPS Receivers” by B. Forssell and R.B. Olsen in GPS World, Vol. 14, No. 1, January 2003, pp. 54–58.
“A Growing Concern: Radiofrequency Interference and GPS” by F. Butsch in GPS World, Vol. 13, No. 10, October 2002, pp. 40–50.
“Interference Effects and Mitigation Techniques” by J.J. Spilker Jr. and F.D. Natali, Chapter 20 in Global Positioning System: Theory and Applications, Volume I, published by the American Institute of Aeronautics and Astronautics, Inc., Washington, D.C., 1996, pp. 717–771.
• Government Regulations and Actions Against Jammers
“The Civilian Battlefield: Protecting GNSS Receivers from Interference and Jamming” by M. Jones in Inside GNSS, Vol. 6, No. 2, March/April 2011, pp. 40–49.
By Kyle Wesson, Daniel Shepard, and Todd Humphreys
Disruption created by intentional generation of fake GPS signals could have serious economic consequences. This article discusses how typical civil GPS receivers respond to an advanced civil GPS spoofing attack, and four techniques to counter such attacks: spread-spectrum security codes, navigation message authentication, dual-receiver correlation of military signals, and vestigial signal defense. Unfortunately, any kind of anti-spoofing, however necessary, is a tough sell.
GPS spoofing has become a hot topic. At the 2011 Institute of Navigation (ION) GNSS conference, 18 papers discussed spoofing, compared with the same number over the past decade. ION-GNSS also featured its first panel session on anti-spoofing, called “Improving Security of GNSS Receivers,” which offered six security experts a forum to debate the most promising anti-spoofing technologies.
The spoofing threat has also drawn renewed U.S. government scrutiny since the initial findings of the 2001 Volpe Report. In November 2010, the U.S. Position Navigation and Timing National Executive Committee requested that the U.S. Department of Homeland Security (DHS) conduct a comprehensive risk assessment on the use of civil GPS. In February 2011, the DHS Homeland Infrastructure Threat and Risk Analysis Center began its investigation in conjunction with subject-matter experts in academia, finance, power, and telecommunications, among others. Their findings will be summarized in two forthcoming reports, one on the spoofing and jamming threat and the other on possible mitigation techniques. The reports are anticipated to show that GPS disruption due to spoofing or jamming could have serious economic consequences.
Effective techniques exist to defend receivers against spoofing attacks. This article summarizes state-of-the-art anti-spoofing techniques and suggests a path forward to equip civil GPS receivers with these defenses. We start with an analysis of a typical civil GPS receiver’s response to our laboratory’s powerful spoofing device. This will illustrate the range of freedom a spoofer has when commandeering a victim receiver’s tracking loops. We will then provide an overview of promising cryptographic and non-cryptographic anti-spoofing techniques and highlight the obstacles that impede their widespread adoption.
The Spoofing Threat
Spoofing is the transmission of matched-GPS-signal-structure interference in an attempt to commandeer the tracking loops of a victim receiver and thereby manipulate the receiver’s timing or navigation solution. A spoofer can transmit its counterfeit signals from a stand-off distance of several hundred meters or it can be co-located with its victim.
Spoofing attacks can be classified as simple, intermediate, or sophisticated in terms of their effectiveness and subtlety. In 2003, the Vulnerability Assessment Team at Argonne National Laboratory carried off a successful simple attack in which they programmed a GPS signal simulator to broadcast high-powered counterfeit GPS signals toward a victim receiver. Although such a simple attack is easy to mount, the equipment is expensive, and the attack is readily detected because the counterfeit signals are not synchronized to their authentic counterparts.
In an intermediate spoofing attack, a spoofer synchronizes its counterfeit signals with the authentic GPS signals so they are code-phase-aligned at the target receiver. This method requires a spoofer to determine the position and velocity of the victim receiver, but it affords the spoofer a serious advantage: the attack is difficult to detect and mitigate.
The sophisticated attack involves a network of coordinated intermediate-type spoofers that replicate not only the content and mutual alignment of visible GPS signals but also their spatial distribution, thus fooling even multi-antenna spoofing defenses.
Table 1. Comparison of anti-spoofing techniques discussed in this article.
Lab Attack. So far, no open literature has reported development or research into the sophisticated attack. This is likely because of the success of the intermediate-type attack: to date, no civil GPS receiver tested in our laboratory has fended off an intermediate-type spoofing attack. The spoofing attacks, which are always conducted via coaxial cable or in radio-frequency test enclosures, are performed with our laboratory’s receiver-spoofer, an advanced version of the one introduced at the 2008 ION-GNSS conference (see “Assessing the Spoofing Threat,” GPS World, January 2009).
To commence the attack, the spoofer transmits its counterfeit signals in code-phase alignment with the authentic signals but at power level below the noise floor. The spoofer then increases the power of the spoofed signals so that they are slightly greater than the power of the authentic signals. At this point, the spoofer has taken control of the victim receiver’s tracking loops and can slowly lead the spoofed signals away from the authentic signals, carrying the receiver’s tracking loops with it. Once the spoofed signals have moved more than 600 meters in position or 2 microseconds in time away from the authentic signals, the receiver can be considered completely owned by the spoofer.
Spoofing testbed at the University of Texas Radionavigation Laboratory, an advanced and powerful suite for anti-spoofing research. On the right are several of the civil GPS receivers tested and the radio-frequency test enclosure, and on the left are the phasor measurement unit and the civil GPS spoofer.
Although our spoofer fooled all of the receivers tested in our laboratory, there are significant differences between receivers’ dynamic responses to spoofing attacks. It is important to understand the types of dynamics that a spoofer can induce in a target receiver to gain insight into the actual dangers that a spoofing attack poses rather than rely on unrealistic assumptions or models of a spoofing attack. For example, a recent paper on time-stamp manipulation of the U.S. power grid assumed that there was no limit to the rate of change that a spoofer could impose on a victim receiver’s position and timing solution, which led to unrealistic conclusions.
Experiments performed in our laboratory sought to answer three specific questions regarding spoofer-induced dynamics:
How quickly can a timing or position bias be introduced?
What kinds of oscillations can a spoofer cause in a receiver’s position and timing?
How different are receiver responses to spoofing?
These questions were answered by determining the maximum spoofer-induced pseudorange acceleration that can be used to reach a certain final velocity when starting from a velocity of zero, without raising any alarms or causing the target receiver to lose satellite lock. The curve in the velocity-acceleration plane created by connecting these points defines the upper bound of a region within which the spoofer can safely manipulate the target receiver. These data points can be obtained empirically and fit to an exponential curve. Alarms on the receiver may cause some deviations from this curve depending on the particular receiver.
Figure 1 shows an example of the velocity-acceleration curve for a high-quality handheld receiver, whose position and timing solution can be manipulated quite aggressively during a spoofing attack. These results suggest that the receiver’s robustness — its ability to provide navigation and timing solutions despite extreme signal dynamics — is actually a liability in regard to spoofing. The receiver’s ability to track high accelerations and velocities allows a spoofer to aggressively manipulate its navigation solution.
Figure 1. Theoretical and experimental test results for a high-quality handheld receiver’s dynamic response to a spoofing attack. Although not shown here, the maximum attainable velocity is around 1,300 meters/second.
The relative ease with which a spoofer can manipulate some GPS receivers suggests that GPS-dependent infrastructure is vulnerable. For example, the telecommunications network and the power grid both rely on GPS time-reference receivers for accurate timing. Our laboratory has performed tests on such receivers to determine the disruptions that a successful spoofing attack could cause. The remainder of this section highlights threats to these two sectors of critical national infrastructure.
Cell-Phone Vulnerability. Code division multiple access (CDMA) cell-phone towers rely on GPS timing for tower-to-tower synchronization. Synchronization prevents towers from interfering with one another and enables call hand-off between towers. If a particular tower’s time estimate deviates more than 10 microseconds from GPS time, hand-off to and from that tower is disrupted. Our tests indicate that a spoofer could induce a 10-microsecond time deviation within about 30 minutes for a typical CDMA tower setup. A spoofer, or spoofer network, could also cause multiple neighboring towers to interfere with one another. This is possible because CDMA cell-phone towers all use the same spreading code and distinguish themselves only by the phasing (that is, time offset) of their spreading codes. Furthermore, it appears that a spoofer could impair CDMA-based E911 user-location.
Power-Grid Vulnerability. Like the cellular network, the power grid of the future will rely on accurate GPS time-stamps. The efficiency of power distribution across the grid can be improved with real-time measurements of the voltage and current phasors. Phasor measurement units (PMUs) have been proposed as a smart-grid technology for precisely this purpose. PMUs rely on GPS to time-stamp their measurements, which are sent back to a central monitoring station for processing. Currently, PMUs are used for closed-loop grid control in only a few applications, but power-grid modernization efforts will likely rely more heavily on PMUs for control. If a spoofer manipulates a PMU’s time stamps, it could cause spurious variations in measured phase angles. These variations could distort power flow or stability estimates in such a way that grid operators would take incorrect or unnecessary control actions including powering up or shutting down generators, potentially causing blackouts or damage to power-grid equipment.
Under normal circumstances, a changing separation in the phase angle between two PMUs indicates changes in power flow between the regions measured by each PMU. Tests demonstrate that a spoofer could cause variations in a PMU’s measured voltage phase angle at a rate of 1.73 degrees per minute. Thus, a spoofing attack could create the false indications of power flow across the grid. The tests results also reveal, however, that it is impossible for a spoofer to cause changes in small-signal grid stability estimates, which would require the spoofer to induce rapid (for example, 0.1–3 Hz) microsecond-amplitude oscillations in timing. Such oscillations correspond to spoofing dynamics well outside the region of freedom of all receivers we have tested. A spoofer might also be able to affect fault-location estimates obtained through time-difference-of-arrival techniques using PMU measurements. This could cause large errors in fault-location estimates and hamper repair efforts.
What Can Be Done? Despite the success of the intermediate-type spoofing attack against a wide variety of civil GPS receivers and the known vulnerabilities of GPS-dependent critical infrastructure to spoofing attacks, anti-spoofing techniques exist that would enable receivers to successfully defend themselves against such attacks. We now turn to four promising anti-spoofing techniques.
Cryptographic Methods
These techniques enable a receiver to differentiate authentic GPS signals from counterfeit signals with high likelihood. Cryptographic strategies rely on the unpredictability of so-called security codes that modulate the GPS signal. An unpredictable code forces a spoofer who wishes to mount a successful spoofing attack to either
estimate the unpredictable chips on-the-fly, or
record and play back authentic GPS spectrum (a meaconing attack).
To avoid unrealistic expectations, it should be noted that no anti-spoofing technique is completely impervious to spoofing. GPS signal authentication is inherently probabilistic, even when rooted in cryptography. Many separate detectors and cross-checks, each with its own probability of false alarm, are involved in cryptographic spoofing detection. Figure 2 illustrates how the jammer-to-noise ratio detector, timing consistency check, security-code estimation and replay attack (SCER) detector, and cryptographic verification block all work together. This hybrid combination of statistical hypothesis tests and Boolean logic demonstrates the complexities and subtleties behind a comprehensive, probabilistic GPS signal authentication strategy for security-enhanced signals.
Figure 2. GNSS receiver components required for GNSS signal authentication. Components that support code origin authentication are outlined in bold and have a gray fill, whereas components that support code timing authentication are outlined in bold and have no fill. The schematic assumes a security code based on navigation message authentication.
Spread Spectrum Security Codes. In 2003, Logan Scott proposed a cryptographic anti-spoofing technique based on spread spectrum security codes (SSSCs). The most recent proposed version of this technique targets the L1C signal, which will be broadcast on GPS Block III satellites, because the L1C waveform is not yet finalized. Unpredictable SSSCs could be interleaved with the L1C spreading code on the L1C data channel, as illustrated in Figure 3. Since L1C acquisition and tracking occurs on the pilot channel, the presence of the SSSCs has negligible impact on receivers. Once tracking L1C, a receiver can predict when the next SSSC will be broadcast but not its exact sequence. Upon reception of an SSSC, the receiver stores the front-end samples corresponding to the SSSC interval in memory. Sometime later, the cryptographic digital key that generated the SSSC is transmitted over the navigation message. With knowledge of the digital key, the receiver generates a copy of the actual transmitted SSSC and correlates it with the previously-recorded digital samples. Spoofing is declared if the correlation power falls below a pre-determined threshold.
Figure 3. Placement of the periodically unpredictable spread spectrum security codes in the GPS L1C data channel spreading sequence.
When the security-code chip interval is short (high chipping rate), it is difficult for a spoofer to estimate and replay the security code in real time. Thus, the SSSC technique on L1C offers a strong spoofing defense since the L1C chipping rate is high (that is, 1.023 MChips/second). Furthermore, the SSSC technique does not rely on the receiver obtaining additional information from a side channel; all the relevant codes and keys are broadcast over the secured GPS signals. Of course a disadvantage for SSSC is that it requires a fairly fundamental change to the currently-proposed L1C definition: the L1C spreading codes must be altered.
Implementation of the SSSC technique faces long odds, partly because it is late in the L1C planning schedule to introduce a change to the spreading codes. Nonetheless, in September 2011, Logan Scott and Phillip Ward advocated for SSSC at the Public Interface Control Working Group meeting, passing the first of many wickets. The proposal and associated Request for Change document will now proceed to the Lower Level GPS Engineering Requirements Branch for further technical review. If approved there, it passes to the Joint Change Review Board for additional review and, if again approved, to the Technical Interchange Meeting for further consideration. The chances that the SSSC proposal will survive this gauntlet would be much improved if some government agency made a formal request to the GPS Directorate to include SSSCs in L1C — and provided the funding to do so. The DHS seems to us a logical sponsoring agency.
Navigation Message Authentication. If an L1C SSSC implementation proves unworkable, an alternative, less-invasive cryptographic authentication scheme based on navigation message authentication (NMA) represents a strong fall-back option. In the same 2003 ION-GNSS paper that he proposed SSSC, Logan Scott also proposed NMA. His paper was preceded by an internal study at MITRE and followed by other publications in the open literature, all of which found merit in the NMA approach. The NMA technique embeds public-key digital signatures into the flexible GPS civil navigation (CNAV) message, which offers a convenient conveyance for such signatures. The CNAV format was designed to be extensible so that new messages can be defined within the framework of the GPS Interference Specification (IS). The current GPS IS defines only 15 of 64 CNAV messages, reserving the undefined 49 CNAV messages for future use.
Our lab recently demonstrated that NMA works to authenticate not only the navigation message but also the underlying signal. In other words, NMA can be the basis of comprehensive signal authentication. We have proposed a specific implementation of NMA that is packaged for immediate adoption. Our proposal defines two new CNAV messages that deliver a standardized public-key elliptic-curve digital algorithm (ECDSA) signature via the message format in Figure 4.
Figure 4. Format of the proposed CNAV ECDSA signature message, which delivers the first or second half of the 466-bit ECDSA signature and a 5-bit salt in the 238-bit payload field.
Although the CNAV message format is flexible, it is not without constraints. The shortest block of data in which a complete signature can be embedded is a 96-second signature block such as the one shown in Figure 5. In this structure, the two CNAV signature messages are interleaved between the ephemeris and clock data to meet the broadcast requirements.
Figure 5. The shortest broadcast signature block that does not violate the CNAV ephemeris and timing broadcast requirements. To meet the required broadcast interval of 48 seconds for message types 10, 11, and one of 30–39, the ECDSA signature is broadcast over a 96-second signature block that is composed of eight CNAV messages.
The choice of the duration between signature blocks is a tradeoff between offering frequent authentication and maintaining a low percentage of the CNAV message reserved for the digital signature. In our proposal, signature blocks are transmitted roughly every five minutes (Figure 6) so that only 7.5 percent of the navigation message is devoted to the digital signature. Across the GPS constellation, the signature block could be offset so that a receiver could authenticate at least one channel approximately every 30 seconds. Like SSSC, our proposed version of NMA does not require a receiver’s getting additional information from a side channel, provided the receiver obtains public key updates on a yearly basis.
Figure 6. A signed 336-second broadcast. The proposed strategy signs every 28 CNAV messages with a signature broadcast over two CNAV messages on each broadcast channel.
NMA is inherently less secure than SSSC. A NMA security code chip interval (that is, 20 milliseconds) is longer than a SSSC chip interval, thereby allowing the spoofer more time to estimate the digital signature on-the-fly. That is not to say, however, that NMA is ineffective. In fact, tests with our laboratory’s spoofing testbed demonstrated the NMA-based signal authentication structure described earlier offered a receiver a better-than 95 percent probability of detecting a spoofing attack for a 0.01 percent probability of false alarm under a challenging spoofing-attack scenario.
NMA is best viewed as a hedge. If the SSSC approach does not gain traction, then NMA might, since it only requires defining two new CNAV messages in the GPS IS — a relatively minor modification. CNAV-based NMA could defend receivers tracking L2C and L5. A new CNAV2 message will eventually be broadcast on L1 via L1C, so a repackaged CNAV2-based NMA technique could offer even single-frequency L1 receivers a signal-side anti-spoofing defense.
P(Y) Code Dual-Receiver Correlation. This approach avoids entirely the issue of GPS IS modifications. The technique correlates the unknown encrypted military P(Y) code between two civil GPS receivers, exploiting known carrier-phase and code-phase relationships. It is similar to the dual-frequency codeless and semi-codeless techniques that civil GPS receivers apply to track the P(Y) code on L2. Peter Levin and others filed a patent on the codeless-based signal authentication technique in 2008; Mark Psiaki extended the approach to semicodeless correlation and narrow-band receivers in a 2011 ION-GNSS paper.
In the dual-receiver technique, one receiver, stationed in a secure location, tracks the authentic L1 C/A codes while receiving the encrypted P(Y) code. The secure receiver exploits the known timing and phase relationships between the C/A code and P(Y) code to isolate the P(Y) code, of which it sends raw samples (codeless technique) or estimates of the encrypting W-code chips (semi-codeless technique) over a secure network to the defending receiver. The defending receiver correlates its locally-extracted P(Y) with the samples or W-code estimates from the secure receiver. If a spoofing attack is underway, the correlation power will drop below a statistical threshold, thereby causing the defending receiver to declare a spoofing attack. Although the P(Y) code is 20 MHz wide, a narrowband civil GPS receiver with 2.6 MHz bandwidth can still perform the statistical hypothesis tests even with the resulting 5.5 dB attenuation of the P(Y) code. Because the dual-receiver method can run continuously in the background as part of a receiver’s standard GPS signal processing, it can declare a spoofing attack within seconds — a valuable feature for many applications.
Two considerations about the dual-receiver technique are worth noting. First, the secure receiver must be protected from spoofing for the technique to succeed. Second, the technique requires a secure communication link between the two receivers. Although the first requirement is easily achieved by locating secure receivers in secure locations, the second requirement makes the technique impractical for some applications that cannot support a continuous communication link.
Of all the proposed cryptographic anti-spoofing techniques, only the dual-receiver method could be implemented today. Unfortunately the P(Y) code will no longer exist after 2021, meaning that systems that make use of the P(Y)-based dual-receiver technique will be rendered unprotected, although a similar M-code-based technique could be an effective replacement. The dual-receiver method, therefore, is best thought of as a stop-gap: it can provide civil GPS receivers with an effective anti-spoofing technique today until a signal-side civil GPS authentication technique is approved and implemented in the future This sentiment was the consensus of the panel experts at the 2011 ION-GNSS session on civil GPS receiver security.
Non-Cryptographic Methods
Non-cryptographic techniques are enticing because they can be made receiver-autonomous, requiring neither security-enhanced civil GPS signals nor a side-channel communication link. The literature contains a number of proposed non-cryptographic anti-spoofing techniques. Frequently, however, these techniques rely on additional hardware, such as accelerometers or inertial measurements units, which may exceed the cost, size, or weight requirements in many applications. This motivates research to develop software-based, receiver-autonomous anti-spoofing methods.
Vestigial Signal Defense (VSD). This software-based, receiver-autonomous anti-spoofing technique relies on the difficulty of suppressing the true GPS signal during a spoofing attack. Unless the spoofer generates a phase-aligned nulling signal at the phase center of the victim GPS receiver’s antenna, a vestige of the authentic signal remains and manifests as a distortion of the complex correlation function. VSD monitors distortion in the complex correlation domain to determine if a spoofing attack is underway.
To be an effective defense, the VSD must overcome a significant challenge: it must distinguish between spoofing and multipath. The interaction of the authentic and spoofed GPS signals is similar to the interaction of direct-path and multipath GPS signals. Our most recent work on the VSD suggests that differentiating spoofing from multipath is enough of a challenge that the goal of the VSD should only be to reduce the degrees-of-freedom available to a spoofer, forcing the spoofer to act in a way that makes the spoofing signal or vestige of the authentic GPS signal mimic multipath. In other words, the VSD seeks to corner the spoofer and reduce its space of possible dynamics.
Among other options, two potential effective VSD techniques are
a maximum-likelihood bistatic-radar-based approach and
a phase-pseudorange consistency check.
The first approach examines the spatial and temporal consistency of the received signals to detect inconsistencies between the instantaneous received multipath and the typical multipath background environment. The second approach, which is similar to receiver autonomous integrity monitoring (RAIM) techniques, monitors phase and pseudorange observables to detect inconsistencies potentially caused by spoofing. Again, a spoofer can act like multipath to avoid detection, but this means that the VSD would have achieved its modest goal.
Anti-Spoofing Reality Check
Security is a tough sell. Although promising anti-spoofing techniques exist, the reality is that no anti-spoofing techniques currently defend civil GPS receivers. All anti-spoofing techniques face hurdles. A primary challenge for any technique that proposes modifying current or proposed GPS signals is the tremendous inertia behind GPS signal definitions. Given the several review boards whose approval an SSSC or NMA approach would have to gain, the most feasible near-term cryptographic anti-spoofing technique is the dual-receiver method. A receiver-autonomous, non-cryptographic approach, such as the VSD, also warrants further development. But ultimately, the SSSC or NMA techniques should be implemented: a signal-side civil GPS cryptographic anti-spoofing technique would be of great benefit in protecting civil GPS receivers from spoofing attacks.
Manufacturers
The high-quality handheld receiver cited in Figure 1 was a Trimble Juno SB. Testbed equipment shown: Schweitzer Engineering Laboratories SEL-421 synchrophasor measurement unit; Ramsey STE 3000 radio-frequency test chamber; Ettus Research USRP N200 universal software radio peripheral; Schweitzer SEL-2401 satellite-synchronized clock (blue); Trimble Resolution SMT receiver (silver); HP GPS time and frequency reference receiver.
Full results of Figure 1 experiment are given in Shepard, D.P. and T.E. Humphreys, “Characterization of Receiver Response to Spoofing Attacks,” Proceedings of ION-GNSS 2011.
NMA can be the basis of comprehensive signal authentication: Wesson, K.D., M. Rothlisberger, T. E. Humphreys (2011), “Practical cryptographic civil GPS signal authentication,” Navigation, Journal of the ION, submitted for review.
Kyle Wesson is pursuing his M.S. and Ph.D. degrees in electrical and computer engineering at the University of Texas at Austin. He is a member of the Radionavigation Laboratory. He received his B.S. from Cornell University.
Daniel Shepard is pursuing his M.S. and Ph.D. degrees in aerospace engineering at the University of Texas at Austin, where he also received his B.S. He is a member of the Radionavigation Laboratory.
Todd Humphreys is an assistant professor in the department of Aerospace Engineering and Engineering Mechanics at the University of Texas at Austin and director of the Radionavigation Laboratory. He received a Ph.D. in aerospace engineering from Cornell University.
Disaster-preparedness plans recognize the individual’s role in his or her own survival. When storms approach, have water, food, and basic survival gear on hand. It takes time for help to arrive.
The civil GPS industry faces an oncoming storm of interference, and the receiver is the first line of defense. As we integrate GPS into all facets of our lives and infrastructure, we become more subject to disruptions, both unintentional and intentional. Newark International Airport now sees several jamming events per day. In Taiwan, one airport experiences an average of 117 events per day!
How can civil PNT infrastructure be made more resilient?
Faced with jamming, spoofing, and cyber attacks, receivers must take basic precautionary measures. They must recognize jamming and spoofing attacks to avoid generating hazardously misleading outputs. Situational awareness is key. Accurate and specific alarms must be generated so users can take action and authorities can be notified. Regular threat-signature updates can improve situational awareness, much like antivirus updates on a computer. Fire alarms don’t put out fires but they do save lives and improve response time.
Twenty years ago, computers rarely had firewall or antivirus protection. As GPS becomes more deeply integrated into communications-enabled systems, its utility increases exponentially but so does its vulnerability to cyber attack. When you update your GPS software or your maps, how do you know they have not been compromised? How do you know your receiver is authentic?
Figure 1. There are demonstrated, well known attacks that can cause receivers to output misleading information without warning. Many of these attacks can be detected using simple methods. Some receivers incorporate detection and countermeasures techniques. Many don’t. Receiver certification provides GPS buyers with a starting point for selecting GPS receivers. Certified receivers can accurately report on interference so it can be located and stopped.
The U.S. Navy recently discovered counterfeit routers in several of their installations. Well-developed computer security methods such as the Trusted Platform Module found in more than 300 million computers can help secure GPS receivers without impeding innovation.
The government can also play a role in improving receivers by providing an authenticatable civil signal structure. Well-documented Public Key Infrastructure methods such as digital signing and occasional, short-spread spectrum security-code bursts can be added to the new L1C signal. Receivers voluntarily using these signal features can establish signal provenance with extremely high confidence.
The public, unclassified keys needed to process these features could be sold and used as a revenue source for the GPS system. Receivers that choose not to use these features can ignore them without adverse impact other than weaker security. The large numbers of in-theater military users who rely on civil signals would also stand to benefit.
Finally, I would note that situationally aware receivers can provide specific and detailed reports about what they see. Interference-monitoring systems such as Patriot Watch will need detailed reports to sort and associate the multitude of reports they receive into a coherent picture of what is actually happening. To provide adequate geographic coverage, interference monitoring systems will need to accept reports from diverse receiver types on an opportunistic basis. In short, they will have to rely on crowdsourcing as a major operational input.
As Brad Parkinson noted during my presentation of this material to the November 9 meeting of the National PNT Executive Committee Advisory Board (“Receiver Certification: Making the GNSS Environment Hostile to Jammers and Spoofers,” at www.pnt.gov/advisory/2011/11/), in the early days of electricity, a lot of houses burned down because of electrical problems. Underwriters Laboratories helped immensely by testing electrical equipment to make sure it was reasonably safe, and consumers looked for the UL label. A voluntary, basic receiver certification process similar to Underwriters Laboratories should be pursued to provide the user community with a basis for selecting receivers.
Logan Scott has more than 32 years of military and civil GPS systems engineering experience. At Texas Instruments, he pioneered approaches for building high-performance, jamming-resistant digital receivers. While at Omnipoint, a cellular carrier, he developed cross-system interference mitigation strategies. He holds 33 U.S. patents.
By Roland Bauernfeind, Thomas Kraus, Dominik Dötterböck, Bernd Eissfeller, Erwin Loehnert, and Elmar Wittmann
Open-field tests of jamming signals from widely available in-car jammers, measured with an experimental software receiver that records the intermediate frequency (IF) samples, enable a detailed analysis of interference effects from these looming threats.
In-car GNSS jammers, openly advertised online as personal protection devices, constitute the most serious threat of all the GNSS interference sources. Such jammers are relatively easy to purchase from abroad over the Internet and to operate by plugging into the cigarette lighter of a vehicle.
Their usage may be motivated by criminal intention such as disabling a vehicle theft-protection system, a fraud attempt against a distance-based road-user charging system or distance-based vehicle insurance, or by privacy concerns, to escape monitoring by a fleet-management or other tracking system. Since most current GNSS receivers carry a communication link, it is difficult to keep full control of the data flow. Further concerns arise from reports of companies storing user location data, as was the case with Apple. Concerns about privacy issues will grow with the widespread introduction of intelligent transport systems (ITSs), vehicles and transport infrastructure that apply information and communications technology to improve transportation efficiency, sustainability, and safety. The primary information source is GNSS for location enabled applications like eCall, a pan-European location based emergency call, which shall be in place and installed in every new car from 2015 on.
Cooperative ITSs, which are currently undergoing standardization, are transport systems that communicate their positions such that each vehicle has a virtual picture of the real world in its vicinity. The cooperative ITS network connects the vehicles with the transportation infrastructure. Vehicles establish a wireless vehicular ad-hoc network (VANET), based on their geographical position. In a VANET the position is communicated to be used at the application layer but is also required at the physical layer to enable geographical routing and addressing. This emerging vehicular communication is an enabling technology many novel and innovative driver assistance systems and location-based services. The result of using an in-car jammer is the complete destruction of GNSS signals not only in the vehicle it is operated in, but also within vehicles in the vicinity. This creates a serious threat to ITS’ future.
To counter the interference threat by in-car jammers, the University of Federal Armed Forces (FAF) Munich purchased some jammers offered online, for analysis in a laboratory environment and in open-field tests in the GAlileo TEst range (GATE). Measurements were taken with an experimental software receiver developed at the Institute of Space Technology and Space Applications. This receiver enables recording of intermediate frequency (IF) samples and detailed analysis of the interference effects on the receiver.
Jammer Interference Signals
First, we analyzed the purchased jammers shown in the Opening Photo. It is always better to understand the signal structure of undesired signals well, before starting development of applicable countermeasures and mitigation technologies. Therefore, the jammers were analyzed in the frequency domain with a spectrum analyzer, and the analyses were extended by a time-domain analysis by recording the signal with a software radio-defined card.
The first results showed that the majority of low-cost in-car jammers transmit a chirp signal with a bandwidth between 9.4 to 44.9 MHz in the E1/L1 band (other frequency bands haven’t been considered yet). The others are sine-wave oscillators with a 3-dB bandwidth of around 0.92 kHz and have a temperature-dependent center frequency around the Galileo/GPS center frequency, but they are not considered further in this article. Both jammer types belong to the category of narrowband interference, however the chirp jammers are much more effective in jamming the signal within the GNSS receivers.
The construction of an in-car jammer chirp signal is usually done by a voltage controlled oscillator (VCO) with an input voltage of a saw-tooth function. In general, it is a sine function with a frequency change over time, which can be described by
(1)
For a unidirectional linear chirp signal the instantaneous frequency f(t) varies linearly over time as
(2)
where f0 is the starting frequency and k is the chirp rate. The amplitude a(t) is usually constant. The corresponding time domain function for a sinusoidal unidirectional linear chirp is
. (3)
All in-car chirp jammers are linear with a positive uni- or bidirectional sweep. The negative slope is so high that we can neglect them for modeling and can describe jammer 1 with the equation (3)
. (4)
Tsw = sweep time.
The frequency spectrum of jammer 1 and jammer 3 is given in Figure 1 and Figure 4, respectively, where we can extract the bandwidth and the peak power from the graph. For measuring the peak power of the jammer it is important to take the max-function mode of the spectrum analyzer, because the internal sweep of the jammer and the spectrum analyzer is never synchronized. Table 1 shows the important parameters of the jammers.
Table 1. Chirp jammer parameters.Figure 1. Power spectrum of jammer No. 1.
To get the timing information of the signal, the analysis must be done in the time-domain. Therefore, we converted the jammer signal into an intermediate frequency and recorded the signal with a SDR card. The further processing has been done with Matlab, where we could extract the frequency change over time for jammers 1, 2, and 3, given in Figure 2, Figure 3, and Figure 5, respectively. Finally, these functions are exactly the same, which were generated for the VCO within the jammers.
Figure 2. Frequency over time at jammer No. 1.Figure 3. Frequency over time at jammer No. 2.Figure 4. Power spectrum of jammer No. 3.Figure 5. Frequency over time at jammer No. 3.
If we compare the jammers, we can see how the complexity increases from one to the other. For jammer 1, a standard saw-tooth generator with a rising slope has been used only for the input of the VCO. Jammer 2 uses two generators. Compared to jammer 1, a second saw-tooth generator with a falling slope and a four-times longer sweep time is added. In the most complex case, jammer 3, we find four generators in total. Jammer 3 causes a frequency burst every 1.12, 1.35, or 2.28 milliseconds. These frequency bursts can be seen also in the power spectrum in Figure 6.
Interference Tests in GATE
Various static and dynamic interference tests were performed in the Galileo Test Range (GATE) in Berchtes-gaden, Germany, where the impact of the jammer signals on both GPS and Galileo RF signals could be evaluated in a realistic manner. GATE is a unique outdoor test and development environment for Galileo and GPS satellite navigation. Consisting of eight virtual Galileo satellites located atop several mountains around the test area in Berchtesgaden, GATE provides a topology to support different testing scenarios. The Galileo signals are transmitted simultaneously on all three frequencies. E1, E5ab, and E6, compliant to the Galileo OS ICD specification. GATE’s virtual-satellite mode simulates a realistic moving Galileo satellite constellation and supports commercial Galileo receivers without any modification. Two monitoring stations within the test area receive and process these signals. A central processing facility steers and controls the signals transmitted.
Figure 6 gives an overview of the test range with its transmit and monitoring stations as well as the GATE central point. The interference tests with the GNSS jammers were performed in the area close to this central point.
With respect to the testing of RF jamming scenarios including GPS as well as real over-the-air Galileo signals in the GATE test area, some requirements have to be taken into account.
Transmission of any interference signals on the GPS and Galileo frequency bands requires an official license from the responsible authority in Germany (Bundesnetzagentur). An appropriate permission for trial radio transmission was available in the framework of the jamming tests. The disturbance of other GPS receivers in the vicinity has to be minimized in any case. Therefore the transmission power of the jammers must be limited so that a distinct impact on the GPS L1 signal reception is restricted to a radius of a few hundred meters at the most. Furthermore, the interference signal source must be placed at an adequate distance from the GATE monitoring station antennas in order not to affect the processing and steering process for the GATE signals.
Finally, in the case of performing GATE tests with a dynamic test user receiver, a severe degradation of the user reference position must be avoided. As the steering of GATE signals in the virtual-satellite mode is based on accurate and reliable user position information transferred in near-real-time to the GATE processing facility. a combined GPS-RTK and inertial measurement unit (IMU) solution is applied. Thanks to the use of the IMU, a GPS signal outage can be well compensated for a certain time period. In order to meet the GATE accuracy requirements, the jammer transmission was restricted to time intervals of about 30 seconds.
Ipex Software Receiver
The Institute of Space Technology and Applications PC-based Experimental Software Receiver (ipexSR) is a multi-frequency GNSS receiver realized completely in software (Visual C++/assembler), capable of tracking GPS and other GNSS signals in real time or post-processing.
For signal analysis, IF samples were recorded and analyzed in post-processing, using two front ends that can be operated in different modes depending on required frequency bands. For the interference analysis, only L1 was recorded with the front end parameters summarized in Table 2.
Table 2. Front-end parameters.
The front-end gain is set once for the measurement in the receiver’s configuration menu. The front end uses no automatic gain control. All the tracking loops settings can be set in the receiver’s configuration menu. For the phase lock loop (PLL), we used a non-coherent (Costas) dot-product discriminator and for the delay lock loop (DLL) an early-minus-late discriminator with the settings in Table 3.
Table 3. Tracking loop settings.
Jammer Effect on Receiver
To analyze the interference effect on the receiver, we took measurements with static receivers and different jammers approaching the receivers, starting from a distance of 1,200 meters. Both commercial receivers, capable of recording the carrier-to-noise density ratio, and the Ipex software receiver, capable of recording IF samples, were set up. Receiver antennas were mounted on the car roof. For jammer reference trajectory, we used an odometer with a GPS receiver providing initial position and reference time.
A measurement for the degradation in the receiver is the carrier-to-noise density ratio. The theoretical effective carrier-to-noise density ratio is defined as
where Q is the spectral separation gain adjustment factor. While moving the jammer towards the receivers, the received interference power Preceived(r) increases relative the distance according to the free-space loss as
where Pjammer is the jammer transmission power. Figures 7 to 10 give the C/N0 degradation for the four different receivers interfered with by the three different jammers in respect to the distance. The measurements have been taken at different times so the undisturbed C/N0 is varying.
Figure 7. Carrier-to-noise ratio for IpexSR.Figure 8. Carrier-to-noise density ratio for BeeLine receiver.Figure 9.Carrier-to-noise density ratio for NAVILoc receiver.Figure 10. Carrier-to-noise density ratio for Garmin receiver.
Comparing the professional receivers with professional antenna to the mass-market receivers with patch antenna, it is evident that the professional receivers are interfered with at a later point but lose lock on the signal earlier.
The degradation of the C/N0 for ipexSR compared with the theoretical curve as introduced before is given in Figure 11. The measured curves follow the theoretical one as long as the front end is not saturated. As soon as the front-end analog-to-digital converter (ADC) is saturated, it causes severe degradation of the signal which exceeds the pure degradation caused by the increased interference power until loss of lock on the signal.
Figure 11. Carrier-to-noise ratio for IpexSR (Jammer 1).
Saturation is caused because the amplitude of the received interference power exceeds the range of the ADC. The comparison between the theoretical and actual received signal strength in respect of distance for the measurements of jammer 1 is shown in Figure 12. With an effective jammer transmission power of –40 dBW, the curves show good alignment for the interval where the received interference power is noticeable above the noise floor, until the front
end goes into saturation and the received signal strength converges to an upper limit.
Figure 12. Received signal strength (Jammer 1).Figure 13. Sample distribution over 8-bit ADC (Jammer 1).
The rising received interference power drives the IF samples to the outer limit of the ADC and changes the distribution of the IF samples over the bins of the ADC as shown in Figure 13. For these measurements, the gain of the front end was set to have the samples without interference distributed over all the ADC bins. This setting with low remaining dynamic range is optimal when no interference is present, whereas with interference the ADC goes immediately into saturation. The red line shows the distribution of the samples where 0.2 percent of the samples are at the outer boundary.
Figure 14. Punctual correlator output (Jammer 1).
Until saturation of the front end, the interference degrades the correlation process by raising the noise floor. When the dynamic range of the front end can no longer occupy the received interference power, the degradation by saturation dominates. For the undisturbed signal, all the signal power is in the I-channel as seen at the punctual correlator output in Figure 14. The correlation is degraded until loss of lock on the PLL occurs.
Degradation of the correlator output has a direct effect on the performance of the tracking loops and their discriminator outputs, as shown in Figure 15. The discriminator error rises until it is out of the discriminator function’s pull-in range. When the PLL error is outside the pull-in range, the tracking loop loses lock on the signal.
Figure 15. DLL and PLL discriminator outputs (Jammer 1).
The degradation of DLL performance causes a position error as shown in Figure 16.
The measurements show that currently available in-car jammers degrade the receiver performance in an radius of about 1 kilometer around the interference source and disable position determination within a radius of about 200 meters.
Interference Detection
Jammers constitute a serious threat to the future of intelligent transport systems. Their use is forbidden by law, and their illegal use must be prosecuted. To have awareness of the actual number of jammers in use requires deploying jammer detectors at dedicated points and recording interference events. Promising points for initial measurements would be highway interchanges or highly frequented border crossings. Reliable numbers on the actual use of GNSS jammers would be required to support government decision-making regarding further actions, and to support the final goal of an comprehensive GNSS interference monitoring network.
For the interference detection test, we recorded were recorded with five static receivers deployed in the GATE core area as shown in Figure 17, with jammer trajectory in red.
Detection of the interference source is based on monitoring the jammer-signal-to-noise ratio (JNR). To prosecute malicious intentional jamming, it is necessary to assign the detected interference signal to the jamming device. Therefore, the signal was analyzed in the time-frequency domain for the characteristic chirp signal of a jammer. The gain of the front end was set to the minimum so that the front end could cover high interference power levels
First, signals were recorded with the chirp jammer located at the central point. The jammer is located outside the car, with line-of-sight to position 1. The measurements at position 1 at about 200 meters from the jammer are shown in Figure 18. Short-time Fourier transformations of the signals in Figure 19 and Figure 20 clearly show the presence of the chirp signal.
Figure 18. JNR at Position 1.Figure 19. STFT of Jammer 1 at Position 1.Figure 20. STFT of Jammer 3 at Position 1.
For the second measurement, the jammer was used inside a car. The car started at position 1, where it switched on the jammer and drove along the main street, passing position 3. The car then turned and drove back the same way. The measured JNR at the five positions is illustrated in Figure 21.
Figure 21. JNR with jammer 1 moving.The resulting degradation in C/N0 is presented for GPS PRN 9 in Figure 22 and for GATE PRN 46 in Figure 23. The measurements show that the jammer can be detected and identified within the distributed receiver network.Figure 22. C/N0 of GPS PRN9 with jammer 1 moving.Figure 23. C/N0 of GATE PRN46 with jammer 1 moving.
The next step in developing a comprehensive interference-monitoring network would be to have automotive GNSS receivers enabled to detect and report interference events. For this scenario, a jammer was operated in a moving car and measurements with the ipexSR driving in another car on the same road were made.
Both cars started at the same position. The pattern in Figure 24 corresponds to the following events. The jammer started first, followed by the receiver with a random car in between. After 170 seconds, the jammer parked at the roadside, and the receiver passed by, indicated by the single spike. At about 240 seconds, the receiver turned and passed by the parked jammer again, as indicated by the second spike at 310 seconds. After the receiver passed by the jammer, the jammer started again, approached the receiver from behind and overtook the receiver at 450 seconds.
During this measurement, neither of the two cars could track or re-acquire a signal. Reporting of the loss of lock on all satellites could therfore be used for a coarse localization of jammers.
Figure 24. JNR in a traffic environment with jammer 1.
Conclusion
The analysis has shown that the interference range of a jammer is very dependent on the receiver architecture. In every scenario, the jammers had severe effects. After detecting interference events, the next step is to mitigate their effect within the receiver. Mitigation techniques based on time-frequency transformations like short-time Fourier transform or wavelet packets are envisaged. With the ipexSR IF Sample API, Figure 25, it is possible to implement and test these algorithms in real time.
Figure 25. IF sample API.
Also the possibility of localizing the interference source based on the JNR and C/N0 measurements will be e
valuated.
Steps against the use of in-car jammers must be taken. To prosecute the use of jammers, detector units must be deployed. This would also help to gather reliable numbers on the use of jammers and would support and justify future actions. Clearly, degrading the integrity of GNSS positioning is a threat for all safety-relevant ITS applications. Therefore, avoidance and mitigation of interference signals should be subject of safety-related vehicular communication, and its standards should be able to handle this in the same way as other safety-related issues. We propose discussion of the GNSS jammer threat within the working groups for cooperative ITS standardization: GNSS interference should be handled in the same way as any other road hazard.
Acknowledgments
These results were developed during the InCarITS Project (Analysis, Detection and Mitigation of In-car GNSS Jammer Interference in Intelligent Transport Systems), founded by the Bundesministerium für Wirtschaft und Technologie and administered by the Project Management Agency for Aeronautics Research of the DLR in Bonn (FKZ 50 NA 1001).
Manufacturers
Jammers were analyzed with a Will’tek 9102B spectrum analyzer and signals recorded with a GE ICS-572B software-defined radio card. The two front ends were developed by Fraunhofer Gesellschaft (FhG). Receivers used for jamming testing were ipexSR with NovAtel GPS-704-X antenna and FhGIII front end, a NovAtel BEELINE with the same antenna, a NAVILock NL-302U Sirf3, and a Garmin GPSMap 76, the latter two both with patch antennae. Only the IpexSR was used for tests to locate jammers, using an FHGIII front end and NovAtel GPS 511 antenna (Position 1, 5), the same antenna with an FHGII front end (Position 2, 3), and an FHGIII front end with SensorSystems S67-1575-96 antenna (Position 4). The two-car driving test used the IpexSR with Novatel GPS-704-X antenna and FHGII front end. IFEN GmbH developed and installed the test range and is GATE operator at least until end of 2013.
Roland Bauernfeind works at the Institute of Space Technology and Space Applications at the University FAF Munich. He received a diploma in aerospace engineering from University of Stuttgart.
Thomas Kraus is a research associate of the Institute of Space Technology and Space Applications at University FAF Munich.
Dominik Dötterböck is a research associate of the Institute. He received his diploma in electrical engineering and information technology from Technical University Munich.
Bernd Eisfeller is director of the Institute of Space Technology and Space Applications at the University FAF Munich. He is responsible for teaching and research in the field of navigation and signal processing.
Erwin Loehnert received a diploma in aerospace engineering in from the Munich University of Technology. He is head of the Mobile Solutions department at IFEN GmbH, and GATE manager.
Elmar Wittman received a Dipl.-Ing. degree in geodesy from the Munich University of Technology. He works as a systems engineer in the field of GPS/Galileo satellite navigation for IFEN GmbH.
